Inheritance diagram for FrtosTask:

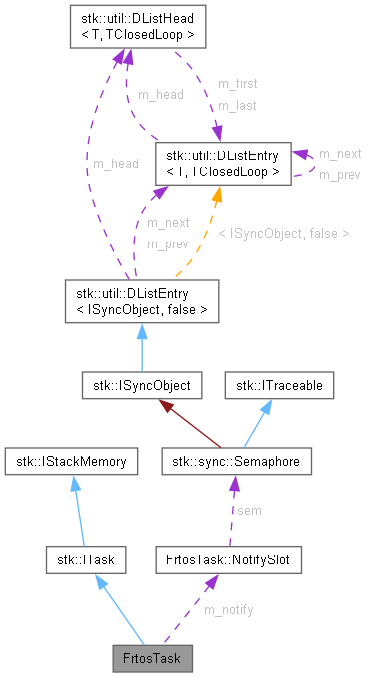

Collaboration diagram for FrtosTask:

Classes
struct	NotifySlot

Public Types
enum class	State : uint8_t { Ready , Suspended , Deleted }

Public Member Functions
	FrtosTask ()
virtual	~FrtosTask ()
void	Run () override
	Entry point of the user task.
void	OnExit () override
	Called by the kernel before removal from the scheduling (see stk::KERNEL_DYNAMIC).
const stk::Word *	GetStack () const override
	Get pointer to the stack memory.
size_t	GetStackSize () const override
	Get number of elements of the stack memory array.
stk::EAccessMode	GetAccessMode () const override
	Get hardware access mode of the user task.
int32_t	GetWeight () const override
	Get static base weight of the task.
const char *	GetTraceName () const override
	Get task trace name set by application.
void	OnDeadlineMissed (uint32_t) override
	Called by the scheduler if deadline of the task is missed when Kernel is operating in Hard Real-Time mode (see stk::KERNEL_HRT).
size_t	GetStackHighWaterMark () const
virtual IStackMemory *	GetSecureStackMemory ()
	Get pointer to the stack memory.
TId	GetId () const
	Get task Id set by application.
virtual size_t	GetStackSpace () const
	Get available stack space.

Public Attributes
TaskFunction_t	m_func
void *	m_argument
const char *	m_name
volatile int32_t	m_weight
stk::Word *	m_stack
size_t	m_stack_size
bool	m_stack_owned
bool	m_cb_owned
volatile State	m_state
uint32_t	m_task_number
void *	m_tls [4U]
NotifySlot	m_notify [1U]

Static Public Attributes
static uint32_t	s_task_counter = 0U

Detailed Description

Definition at line 397 of file freertos_stk.cpp.

Member Enumeration Documentation

◆ State

enum class FrtosTask::State : uint8_t

strong

Enumerator
Ready
Suspended
Deleted

Definition at line 399 of file freertos_stk.cpp.

    {
        Ready,      // in the ready/running queue
        Suspended,  // explicitly suspended via vTaskSuspend()
        Deleted,    // marked for removal, kernel slot being freed
    };

Constructor & Destructor Documentation

◆ FrtosTask()

FrtosTask::FrtosTask ( )

inlineexplicit

< Per-task TLS pointer slots.

Definition at line 406 of file freertos_stk.cpp.

        : m_func(nullptr), m_argument(nullptr), m_name(nullptr),
          m_weight(FrtosPrioToStkWeight(tskIDLE_PRIORITY)),
          m_stack(nullptr), m_stack_size(0U),
          m_stack_owned(false), m_cb_owned(true),
          m_state(State::Ready),
          m_task_number(++s_task_counter)
    {
        for (size_t i = 0U; i < configNUM_THREAD_LOCAL_STORAGE_POINTERS; ++i)
            m_tls[i] = nullptr;
    }

References configNUM_THREAD_LOCAL_STORAGE_POINTERS, FrtosPrioToStkWeight(), m_argument, m_cb_owned, m_func, m_name, m_stack, m_stack_owned, m_stack_size, m_state, m_task_number, m_tls, m_weight, s_task_counter, and tskIDLE_PRIORITY.

Here is the call graph for this function:

◆ ~FrtosTask()

virtual FrtosTask::~FrtosTask ( )

inlinevirtual

Definition at line 418 of file freertos_stk.cpp.

    {
        if (m_stack_owned && (m_stack != nullptr))
        {
            ObjFreeArray(m_stack);
            m_stack = nullptr;
        }
    }

References m_stack, m_stack_owned, and ObjFreeArray().

Here is the call graph for this function:

Member Function Documentation

◆ GetAccessMode()

stk::EAccessMode FrtosTask::GetAccessMode ( ) const

inlineoverridevirtual

Get hardware access mode of the user task.

Implements stk::ITask.

Definition at line 441 of file freertos_stk.cpp.

441{ return stk::ACCESS_PRIVILEGED; }

stk::ACCESS_PRIVILEGED

@ ACCESS_PRIVILEGED

Privileged access mode (access to hardware is fully unrestricted).

Definition stk_common.h:44

References stk::ACCESS_PRIVILEGED.

◆ GetId()

TId stk::ITask::GetId ( ) const

inlineinherited

Get task Id set by application.

Implementation of ITask::GetId, see ITask. Placed here as it depends on GetTidFromUserTask.

Returns: Application-defined task identifier. Return 0 if unused.

Note: Used for debugging and tracing only. The kernel does not interpret this value.

Definition at line 228 of file stk_helper.h.

{
    return GetTidFromUserTask(this);
}

References stk::GetTidFromUserTask().

Referenced by stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::Bind(), and stk_task_get_id().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSecureStackMemory()

virtual IStackMemory * stk::ITask::GetSecureStackMemory ( )

inlinevirtualinherited

Get pointer to the stack memory.

Note: Optional. ARM TrustZone only.

Returns: Pointer to the Secure stack memory.

Definition at line 692 of file stk_common.h.

692{ return nullptr; }

◆ GetStack()

const stk::Word * FrtosTask::GetStack ( ) const

inlineoverridevirtual

Get pointer to the stack memory.

Implements stk::IStackMemory.

Definition at line 439 of file freertos_stk.cpp.

439{ return m_stack; }

References m_stack.

◆ GetStackHighWaterMark()

size_t FrtosTask::GetStackHighWaterMark ( ) const

inline

Definition at line 450 of file freertos_stk.cpp.

450{ return GetStackSpace(); }

stk::IStackMemory::GetStackSpace

virtual size_t GetStackSpace() const

Get available stack space.

Definition stk_common.h:336

References stk::IStackMemory::GetStackSpace().

Referenced by uxTaskGetStackHighWaterMark(), uxTaskGetStackHighWaterMark2(), uxTaskGetSystemState(), and vTaskList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStackSize()

size_t FrtosTask::GetStackSize ( ) const

inlineoverridevirtual

Get number of elements of the stack memory array.

Implements stk::IStackMemory.

Definition at line 440 of file freertos_stk.cpp.

440{ return m_stack_size; }

References m_stack_size.

◆ GetStackSpace()

virtual size_t stk::IStackMemory::GetStackSpace ( ) const

inlinevirtualinherited

Get available stack space.

Returns: Number of elements of the stack memory array remaining on the stack (computed via the watermark pattern). Returns 0 if the stack has been fully used or the watermark STK_STACK_MEMORY_FILLER was overwritten.

Warning: Stack type: Bottom to Top (index[0]).

Definition at line 336 of file stk_common.h.

    {
        const ArrayView<const Word> stack(GetStack(), GetStackSize());
        const size_t total_size = stack.GetSize();
        size_t space = 0U;

        for (size_t i = 0U; i < total_size; ++i)
        {
            if (stack[i] == STK_STACK_MEMORY_FILLER)
            {
                space = i + 1U;
            }
            else
            {
                break; // terminate loop as soon as watermark ends
            }
        }

        return space;
    }

References stk::ArrayView< T >::GetSize(), GetStack(), GetStackSize(), and STK_STACK_MEMORY_FILLER.

Referenced by FrtosTask::GetStackHighWaterMark(), and osThreadGetStackSpace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTraceName()

const char * FrtosTask::GetTraceName ( ) const

inlineoverridevirtual

Get task trace name set by application.

Returns: Null-terminated name string, or NULL if unused.

Note: Used for debugging and tracing only (e.g. SEGGER SystemView). Kernel does not interpret this value.

Reimplemented from stk::ITask.

Definition at line 443 of file freertos_stk.cpp.

443{ return m_name; }

References m_name.

◆ GetWeight()

int32_t FrtosTask::GetWeight ( ) const

inlineoverridevirtual

Get static base weight of the task.

Returns: Static weight value of the task (must be non-zero, positive 24-bit number).

See also: SwitchStrategyFixedPriority, SwitchStrategySmoothWeightedRoundRobin, IKernelTask::GetWeight, IKernelService::InheritWeight, IKernelService::RestoreWeight

Reimplemented from stk::ITask.

Definition at line 442 of file freertos_stk.cpp.

442{ return m_weight; }

References m_weight.

◆ OnDeadlineMissed()

void FrtosTask::OnDeadlineMissed ( uint32_t duration )

inlineoverridevirtual

Called by the scheduler if deadline of the task is missed when Kernel is operating in Hard Real-Time mode (see stk::KERNEL_HRT).

Parameters

[in] duration Elapsed active time in ticks at the point the deadline was detected. Always greater than the task's configured deadline (ticks).

Note: Optional handler. Use it for fault logging.; After this call returns, IPlatform::ProcessHardFault() is invoked and the system enters a safe state. This function should not attempt to recover scheduling.

Reimplemented from stk::ITask.

Definition at line 445 of file freertos_stk.cpp.

445{}

◆ OnExit()

void FrtosTask::OnExit ( )

inlineoverridevirtual

Called by the kernel before removal from the scheduling (see stk::KERNEL_DYNAMIC).

Note: The task's stack is no longer in use but the ITask object itself is still valid.; The default no-op implementation is sufficient for detached tasks. Override to implement join semantics (signal a waiting joiner).; Called in kernel/tick context - keep it short. ISR-safe primitives only (e.g. stk::sync::Semaphore::Signal(), stk::sync::EventFlags::Set()).; KERNEL_DYNAMIC only. Never called in KERNEL_STATIC mode.

Reimplemented from stk::ITask.

Definition at line 434 of file freertos_stk.cpp.

    {
        m_state = State::Deleted;
    }

References Deleted, and m_state.

◆ Run()

void FrtosTask::Run ( )

inlineoverridevirtual

Entry point of the user task.

Note: Called by the Kernel when the task is scheduled for execution. Implement this method with the task's main logic.

Warning: If Kernel is configured as KERNEL_STATIC, the body must contain an infinite loop.
void Run( override)

{

while (true)

{

// task logic here

}

}

FrtosTask::Run
void Run() override
Entry point of the user task.
Definition freertos_stk.cpp:428

Implements stk::ITask.

Definition at line 428 of file freertos_stk.cpp.

    {
        m_func(m_argument);
        // KERNEL_DYNAMIC: returning removes the task automatically.
    }

References m_argument, and m_func.

Member Data Documentation

◆ m_argument

void* FrtosTask::m_argument

Definition at line 454 of file freertos_stk.cpp.

Referenced by FrtosTask(), Run(), xTaskCreate(), and xTaskCreateStatic().

◆ m_cb_owned

bool FrtosTask::m_cb_owned

Definition at line 460 of file freertos_stk.cpp.

Referenced by FrtosTask(), and xTaskCreateStatic().

◆ m_func

TaskFunction_t FrtosTask::m_func

Definition at line 453 of file freertos_stk.cpp.

Referenced by FrtosTask(), Run(), xTaskCreate(), and xTaskCreateStatic().

◆ m_name

const char* FrtosTask::m_name

Definition at line 455 of file freertos_stk.cpp.

Referenced by FrtosTask(), GetTraceName(), uxTaskGetSystemState(), vTaskGetRunTimeStats(), vTaskList(), xTaskCreate(), and xTaskCreateStatic().

◆ m_notify

NotifySlot FrtosTask::m_notify[1U]

Definition at line 494 of file freertos_stk.cpp.

Referenced by ulTaskNotifyTakeIndexed(), ulTaskNotifyValueClearIndexed(), xTaskNotifyAndQueryIndexed(), xTaskNotifyGiveIndexed(), xTaskNotifyIndexed(), xTaskNotifyStateClearIndexed(), and xTaskNotifyWaitIndexed().

◆ m_stack

stk::Word* FrtosTask::m_stack

Definition at line 457 of file freertos_stk.cpp.

Referenced by FrtosTask(), GetStack(), uxTaskGetSystemState(), xTaskCreate(), xTaskCreateStatic(), and ~FrtosTask().

◆ m_stack_owned

bool FrtosTask::m_stack_owned

Definition at line 459 of file freertos_stk.cpp.

Referenced by FrtosTask(), xTaskCreate(), xTaskCreateStatic(), and ~FrtosTask().

◆ m_stack_size

size_t FrtosTask::m_stack_size

Definition at line 458 of file freertos_stk.cpp.

Referenced by FrtosTask(), GetStackSize(), xTaskCreate(), and xTaskCreateStatic().

◆ m_state

volatile State FrtosTask::m_state

Definition at line 461 of file freertos_stk.cpp.

Referenced by eTaskGetState(), FrtosTask(), OnExit(), uxTaskGetSystemState(), vTaskList(), vTaskResume(), vTaskSuspend(), xTaskAbortDelay(), and xTaskResumeFromISR().

◆ m_task_number

uint32_t FrtosTask::m_task_number

Definition at line 462 of file freertos_stk.cpp.

Referenced by FrtosTask(), and uxTaskGetSystemState().

◆ m_tls

void* FrtosTask::m_tls[4U]

Definition at line 471 of file freertos_stk.cpp.

Referenced by FrtosTask(), pvTaskGetThreadLocalStoragePointer(), and vTaskSetThreadLocalStoragePointer().

◆ m_weight

volatile int32_t FrtosTask::m_weight

Definition at line 456 of file freertos_stk.cpp.

Referenced by FrtosTask(), GetWeight(), uxTaskGetSystemState(), uxTaskPriorityGet(), vTaskList(), vTaskPrioritySet(), xTaskCreate(), and xTaskCreateStatic().

◆ s_task_counter

uint32_t FrtosTask::s_task_counter = 0U

static

Definition at line 466 of file freertos_stk.cpp.

Referenced by FrtosTask().

The documentation for this struct was generated from the following file:

freertos_stk.cpp
