SuperTinyKernel™ RTOS

SuperTinyKernel™ RTOS

Lightweight High-Performance Deterministic C++ RTOS for Embedded Systems

---

---

Overview

SuperTinyKernel™ RTOS (STK) is a lightweight, deterministic real-time operating system for resource-constrained embedded systems. Instead of providing large peripheral abstraction layers (HAL), STK focuses on a highly optimized preemptive scheduler with minimal runtime overhead and a very small memory footprint.

STK combines the control and transparency of bare-metal development with the structure and maintainability of modern, type-safe C++.

You get:

• C++ native RTOS — Built so the C++ compiler can efficiently optimize your STK-based application for maximum speed and ultra-low overhead.
• Safe code from day one — Thoughtful OOP design enforces strict encapsulation and type safety to deliver secure, robust, and high-performance firmware.
• Full-featured RTOS — A comprehensive suite of thread synchronization, memory, and time management primitives. You only need to bring your own HAL.
• Safety-critical ready — Built for strict compliance with MISRA standards. Looking for a safe C++ RTOS for your certified device? Explore our Services.
• Deterministic execution — Zero dynamic memory allocation (malloc/free) and zero heap fragmentation. Memory usage is fully predictable at compile time.
• Clean C++ design — No STL dependencies, exceptions, RTTI, or heavy runtime abstractions. Readable internals simplify debugging and tracing.
• Verbose-free code — A clean C++ API makes your implementation highly concise, making it significantly easier to maintain, refactor, and debug than standard C-only APIs.
• Portable design — Minimal BSP (Board Support Package) footprint with complete independence from specific board and MCU peripherals.
• Reduced hardware requirements — Compact kernel footprint that allows you to deploy on lower-RAM, lower-cost MCU variants.
• Higher CPU availability — More time for your application logic. Benchmarks show up to **~12% more application CPU time** compared to FreeRTOS under comparable workloads (see Benchmark).
• Lower power consumption — Features ultra-low power, tickless scheduling paired with reduced overhead, enabling the use of lower-frequency MCUs to save battery of your portable design.
• Native C support — Includes a fully featured C API wrapper, allowing you to seamlessly use STK in pure C projects.
• Simplified migration — Drop-in compatibility layers for FreeRTOS and CMSIS-RTOS2 to help you migrate legacy codebases with minimal application changes.
• B2B professional support — Engineered for seamless integration into commercial projects. Explore our Services for enterprise-grade support and custom engineering.

STK does not attempt to abstract or manage MCU peripherals, similarly to FreeRTOS or CMSIS-RTOS2.

STK is an open-source project developed at https://github.com/SuperTinyKernel-RTOS.

---

Key Features

Soft real-time	No strict time slots, mixed cooperative (by tasks) and preemptive (by kernel) scheduling
Hard real-time (KERNEL_HRT)	Guaranteed execution window, deadline monitoring by the kernel
Static task model (KERNEL_STATIC)	Tasks created once at startup
Dynamic task model (KERNEL_DYNAMIC)	Tasks can be created and exit at runtime
Rich scheduling capabilities	All major scheduling strategies are supported: priority-less (Round-Robin), fixed-priority, weighted (SWRR), earliest-deadline-first (EDF), and mixed-criticality adaptive (MCAS/MCAS4)
Mixed-criticality	MCAS (2-level) and MCAS4 (4-level) adaptive strategies featuring SWRR-based group scheduling, automatic cascade escalation/recovery, and elastic CPU share adaptation driven by per-group EWMA execution-pressure estimation
Tick or Tickless modes	Fixed-interval periodic interrupts (Tick) for simplicity, or dynamic timer-based wakeups (Tickless, KERNEL_TICKLESS) to maximize CPU sleep duration and power efficiency
Extensible via C++ interfaces	Kernel functionality can be extended by implementing available C++ interfaces
Multi-core support (AMP)	One STK instance per physical core for optimal, lock-free performance
Memory Protection Unit (MPU) support	Privileged ACCESS_PRIVILEGED and non-privileged tasks ACCESS_USER
Low-power aware	MCU enters sleep when no task is runnable (sleeping)
Synchronization API	Rich set of primitives in stk::sync namespace
Memory API	Deterministic, fragmentation-free allocator in stk::memory namespace
Thread-Local Storage (TLS)	Per-task TLS via a dedicated CPU register via inline zero-overhead helpers
Tiny footprint	Minimal code unrelated to scheduling
Safety-critical systems ready	No dynamic heap memory allocation — a required baseline for IEC 61508 / ISO 26262 / DO-178C certification. See Professional Services for certification support.
C++ and C API	Can be used easily in C++ and C projects
CMSIS-RTOS2 compatible	Full CMSIS-RTOS2 wrapper (cmsis_os2_stk.cpp) maps the standard ARM CMSIS-RTOS2 C API onto STK, enabling drop-in compatibility with STM32CubeMX, MCUXpresso, and other CMSIS-aware middleware
FreeRTOS compatible	Full FreeRTOS wrapper (freertos_stk.cpp) maps the standard FreeRTOS C API onto STK, enabling drop-in migration of existing FreeRTOS codebases with minimal or no application changes
Easy porting	Requires very small to none BSP surface

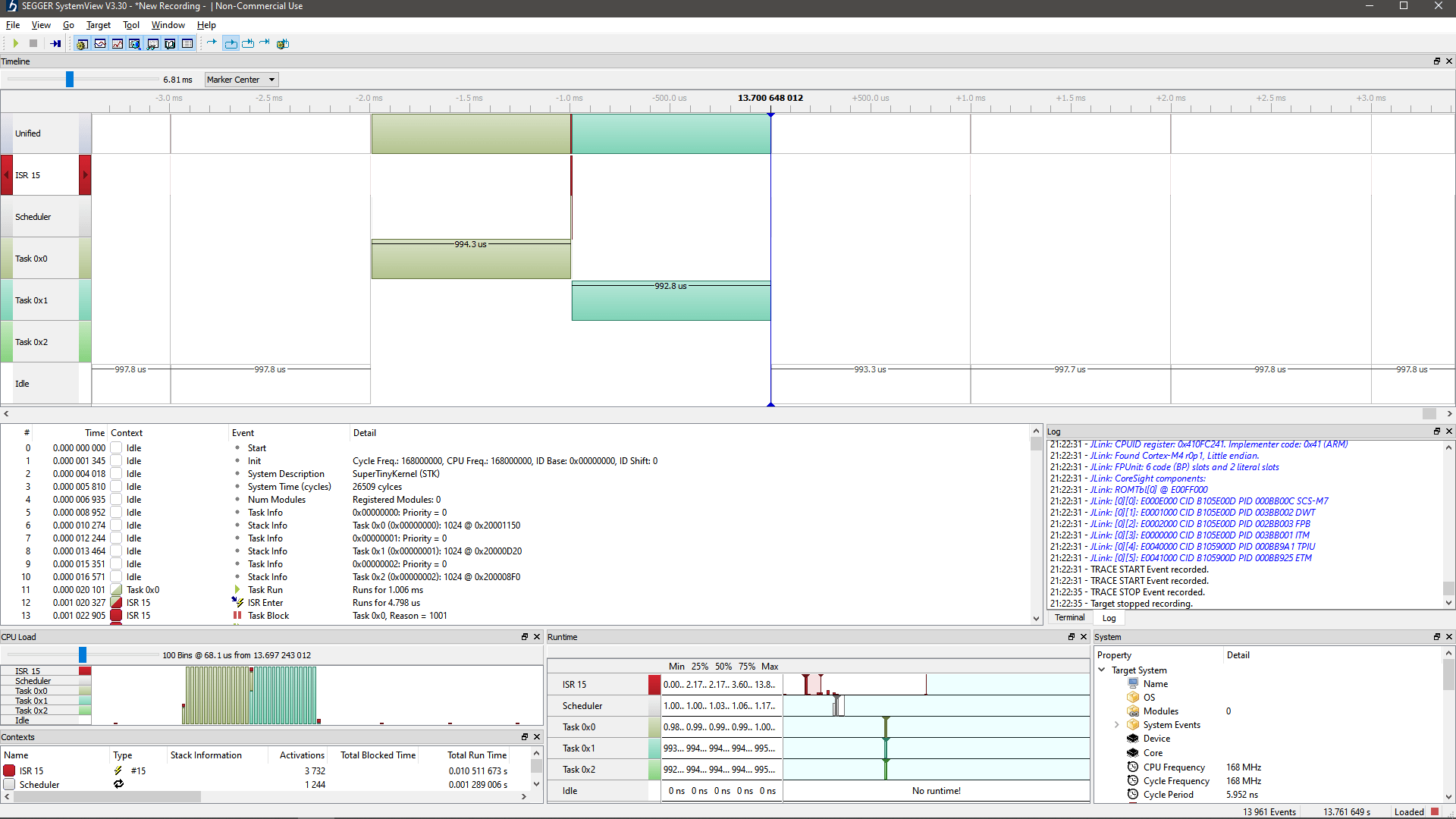

Traceable	Scheduling is fully traceable with a SEGGER SystemView
Development mode (x86)	Run the same threaded application on Windows
100% test coverage	Every source-code line of scheduler logic is covered by unit tests
QEMU test coverage	All repository commits are automatically covered by unit tests executed on QEMU for Cortex-M and RISC-V

---

Modes of Operation

Soft Real-Time (Default)

• Tasks cooperate using Sleep() or Yield()
• Timing is a best-effort
• Preemptive scheduling: tasks can not block execution of other tasks even if they do not cooperate (see Built-in Scheduling Strategies)
• Dedicated task switching strategies (SwitchStrategyRoundRobin, SwitchStrategyFixedPriority, SwitchStrategySmoothWeightedRoundRobin)

// task is added without any time constraints
void AddTask(ITask *user_task)

Hard Real-Time (HRT)

• Separate kernel mode of operation set by the KERNEL_HRT flag
• Periodic tasks with strict execution windows
• Tasks must notify kernel when the work is done by using Yield()
• Kernel enforces deadlines
• Any violation fails the application deterministically (ITask::OnDeadlineMissed(uint32_t duration) callback is called, where duration is the overrun amount in ticks)
• Dedicated HRT task switching strategies (SwitchStrategyRoundRobin, SwitchStrategyRM, SwitchStrategyDM, SwitchStrategyEDF)

// task is added time constraints: periodicity, deadline and start delay
AddTask(ITask *user_task, Timeout periodicity_tc, Timeout deadline_tc, Timeout start_delay_tc)

Static vs Dynamic

• KERNEL_STATIC: tasks are created once at startup, kernel never returns to main().
• KERNEL_DYNAMIC: tasks may exit, kernel returns to main() when all tasks exit.

Tick / Tickless Context Switching

Tick-Based Mode (Default)

• Kernel time advances in fixed periodic interrupts (ticks)
• Hardware timer generates interrupts at a constant frequency
• Scheduler decisions are evaluated on each tick
• Simple and predictable behavior
• Suitable for systems where:
  • Timing granularity is fixed and acceptable
  • Power consumption is not critical
• Lower implementation complexity, but may introduce unnecessary CPU wakeups

Tickless Mode

• Separate kernel mode of operation set by the KERNEL_TICKLESS flag and STK_TICKLESS_IDLE=1
• Kernel suppresses periodic ticks and schedules timer interrupts dynamically
• Next interrupt is programmed based on the nearest upcoming event (task wakeup, deadline, etc.)
• Reduces CPU wakeups and improves power efficiency
• Especially beneficial for:
  • Low-power / battery-powered systems
  • Systems with infrequent task activity
• Maintains timing correctness while minimizing Idle overhead
• Slightly higher implementation complexity due to dynamic timer reprogramming

There are several tickless examples:

• Blinky for ARM Cortex-M MCUs: blinky-stm32f407g-disc1
• Blinky for RISC-V MCUs: blinky-rp2350w-riscv

---

Built-in Scheduling Strategies

STK is one of the few lightweight RTOSes that offers all popular switching strategies to match any usage scenario, see stk/strategy for more details.

Strategy Name	Mode	Description
SwitchStrategyRoundRobin / SwitchStrategyRR	Soft / HRT	Round-Robin scheduling strategy (Default). Each runnable task receives one time slice per tick in turn. Allows 100% CPU utilization.
SwitchStrategySmoothWeightedRoundRobin / SwitchStrategySWRR	Soft / HRT	Smooth Weighted Round-Robin (SWRR). Distributes CPU time proportionally to per-task weights with burst-free interleaving. On each tick: every task's current weight is incremented by its static weight; the task with the highest current weight runs and then has the total weight sum deducted. Includes a wake-up priority boost to prevent I/O-bound task starvation.
SwitchStrategyFixedPriority	Soft / HRT	Fixed-Priority Round-Robin. Tasks have fixed priorities (up to 32 levels); same-priority tasks are scheduled in Round-Robin order. Kernel supports Priority Inheritance automatically. Behavior is similar to FreeRTOS's scheduler.
SwitchStrategyRM	HRT	Rate-Monotonic (RM). Assigns fixed priorities based on task periodicity — shorter period means higher priority. Optimal among all fixed-priority policies for independent periodic tasks. Includes WCRT schedulability analysis.
SwitchStrategyDM	HRT	Deadline-Monotonic (DM). Assigns fixed priorities based on task deadlines — shorter deadline means higher priority. Generalizes RM; optimal when deadlines ≤ periods. Includes WCRT schedulability analysis.
SwitchStrategyEDF	HRT	Earliest Deadline First (EDF). Selects the runnable task with the smallest relative deadline (deadline − elapsed_duration) via an O(n) linear scan each tick. Provably optimal for single-processor systems — if a feasible schedule exists, EDF will find it.
SwitchStrategyMCAS 🔒	HRT	Mixed-Criticality Adaptive Scheduler (2-level). SWRR within each criticality group (LO / HI) with automatic escalation to a protected HI-only mode on budget overrun. Commercial License
SwitchStrategyMCAS4 🔒	HRT	Mixed-Criticality Adaptive Scheduler (4-level). Extends MCAS with four criticality levels, cascade escalation/recovery, and elastic CPU share adaptation via per-group EWMA pressure estimation. Commercial License
Custom	Soft / HRT	Custom algorithm implemented via the ITaskSwitchStrategy interface. By implementing the ITaskSwitchStrategy interface you can provide your own unique scheduling strategy without changing anything inside the kernel.

🔒 Commercial strategies are available to commercial licensees. See the bottom of README.md for contact details.

---

Task Privilege Separation

Starting with ARM Cortex-M3 and all newer cores (M3/M4/M7/M33/M55/...) that implement the Armv7-M or Armv8-M architecture with the Memory Protection Unit (MPU), STK supports explicit privilege separation between tasks.

Access Mode	Privileged (ACCESS_PRIVILEGED)	Unprivileged (ACCESS_USER)
CPU privilege level	Runs in Privileged Thread Mode	Runs in Unprivileged Thread Mode
Direct peripheral access	Allowed (normal register/bit-band access)	Blocked by the hardware (BusFault on any peripheral access)
Ability to call SVC / trigger PendSV	Yes	No (but STK services allow Sleep, Delay, Yield, CS, ...)
Ability to execute privileged instructions (CPS, MRS/MSR for control regs, etc.)	Yes	No
Typical use case	Drivers, hardware abstraction, critical infrastructure code	Application logic, protocol parsers, third-party or untrusted code

Modern embedded systems increasingly process untrusted or complex data (network/USB packets, sensor data, firmware updates, etc.). By marking tasks that parse potentially attacker-controlled data as ACCESS_USER, you get hardware-enforced isolation:

• An erroneous or malicious write to a peripheral register immediately triggers a hard BusFault instead of silently corrupting hardware state.
• Only explicitly trusted tasks (marked ACCESS_PRIVILEGED) are allowed to touch GPIO, UART, SPI, DMA, timers, etc.
• The kernel itself and all STK services remain fully functional for unprivileged tasks (Sleep, Yield, CriticalSection, TLS, etc.).

Example

// Trusted driver task – needs direct hardware access
class DriverTask : public stk::Task<256, ACCESS_PRIVILEGED> { ... };

// Application task that parses USB or network data – runs unprivileged
class ParserTask : public stk::Task<512, ACCESS_USER> { ... };

---

Multi-Core Support

STK supports multicore embedded microcontrollers (e.g., ARM Cortex-M55, dual-core Cortex-M33/M7/M0, or multicore RISC-V devices) through a per-core instance model (Asymmetric Multi-Processing).

AMP design delivers maximum performance while keeping STK kernel extremely lightweight:

Feature	Description
Zero intercore overhead	No cross-core communication inside STK itself
Minimal latency	Scheduling decisions are local to the core
Full cache efficiency	All kernel data structures stay in the local core’s L1 cache
Independent timing domains	One core can run hard real-time tasks while another runs soft real-time or dynamic tasks
Simple and predictable	No complex SMP synchronization logic required in the kernel
No core congestion	Highest possible performance and deterministic timing on each individual core

STK provides a rich set of synchronization primitives (see stk/sync) which are suitable for multicore synchronization with multiple STK instances.

Usage Example (Dual-Core System)

void start_core0()
{
    // Core 0 – Real-time control tasks
    static stk::Kernel<KERNEL_STATIC, 8, stk::SwitchStrategyRoundRobin, PlatformDefault> kernel_core0;

    kernel_core0.Initialize(PERIODICITY_1MS); // Hard real-time tick
    kernel_core0.AddTask(&motor_control_task);
    kernel_core0.AddTask(&sensor_task);
    // ...
    kernel_core0.Start();
}

void start_core1()
{
    // Core 1 – Communication & logging tasks
    static stk::Kernel<KERNEL_DYNAMIC, 6, stk::SwitchStrategyRoundRobin, PlatformDefault> kernel_core1;

    kernel_core1.Initialize(PERIODICITY_10MS); // Softer timing
    kernel_core1.AddTask(&ethernet_task);
    kernel_core1.AddTask(&logging_task);
    // ...
    kernel_core1.Start();
}

There is a dual-core example for Raspberry Pico 2 W board with RSP2350 MCU in build/example/project/eclipse/rpi/blinky-smp-rp2350w directory.

---

Ultra-Low Power Scheduling

STK provides a first-class ultra-low power scheduling mode that goes beyond simple tickless idle. By combining KERNEL_TICKLESS with a custom stk::IPlatform::IEventOverrider, the application can select the deepest appropriate hardware sleep state on each idle entry with full kernel suspension and graceful resume support.

How It Works

When all tasks are sleeping, the kernel calls IEventOverrider::OnSleep(sleep_ticks) instead of spinning. The application overrides this hook to drive the MCU into the most power-efficient state that still guarantees a wake-up within the required deadline.

bool OnSleep(stk::Timeout sleep_ticks) override
{
    if (sleep_ticks >= TICKS_DEEP_SLEEP)
    {
        stk::IKernelService *kernel = stk::IKernelService::GetInstance();

        Board::RtcWakeupArm(sleep_ticks);   // 1. arm RTC wakeup timer
        kernel->Suspend();                  // 2. stop SysTick / task switching
        Board::AdcSuspend();                // 3. cut ADC quiescent current
        Board::CpuEnterDeepSleepMode();     // 4+5. STOP + restore HSE/PLL
        Board::RtcWakeupDisarm();           // 6. clear RTC & EXTI flags
        Board::AdcResume();                 // 7. re-enable ADC
        kernel->Resume(sleep_ticks);        // 8. advance kernel clock

        return false; // let the driver re-enter idle; SysTick closes the gap
    }
    // ...
}

Graceful Kernel Suspension and Resume

STK supports ISR-safe kernel suspension, allowing an interrupt handler to pause and resume all task scheduling without race conditions. This is useful for entering a low-activity state (e.g. user-triggered standby) where tasks should be fully frozen until an external event occurs.

// In an ISR (e.g. button press — EXTI0_IRQHandler):
stk::IKernelService *kernel = stk::IKernelService::GetInstance();

// Suspend: returns ticks until the nearest scheduled wake-up.
// All task switching and SysTick firings are frozen.
kernel->Suspend();

// ... CPU can now enter deep sleep indefinitely (no RTC timer armed) ...
// ... Only an external IRQ (e.g. button EXTI) will wake the CPU ...

// Resume: pass 0 when the sleep duration is unknown (e.g. waking from
// indefinite suspension is analogous to restoring from hibernation).
kernel->Resume(0);

Full Example

A complete ultra-low power demo targeting the STM32F407G-DISC1 board is available:

STK C++ API low_power

STK C API low_power_c

---

Hardware Support

CPU Architectures

• ARM Cortex-M (ARMv6-M, ARMv7-M, ARMv7E-M, ARMv8-M, ARMv8.1-M)
• RISC-V RV32I (RV32IMA_ZICSR)
• RISC-V RV32E (RV32EMA_ZICSR) — including very small RAM devices

Floating-point

• Soft
• Hard

---

Dependencies

• CMSIS (ARM platforms only)
• MCU vendor BSP (RPI only)

Note: A minimal set of CMSIS/BSP API is used by STK.

---

Compiler

• GCC
• Clang/ARMCC 6 and higher
• IAR EWARM 8.0 and higher (ARM only)

---

Language

• Minimal: C++11
• Recommended: C++17 and higher

---

Dedicated C interface

For seamless integration with C projects, STK provides a dedicated, fully-featured C API. See interop/c for the full reference and examples.

Quick example:

#include <stk_c.h>

#define STACK_WORDS 256
static stk_word_t g_stack0[STACK_WORDS];
static stk_word_t g_stack1[STACK_WORDS];

void task_led(void *arg)
{
    while (1)
    {
        /* toggle LED */
        stk_sleep_ms(500);
    }
}

void task_sensor(void *arg)
{
    while (1)
    {
        /* read sensor */
        stk_sleep_ms(100);
    }
}

int main(void)
{
    stk_kernel_t *k = stk_kernel_create(0);       /* core 0 */
    stk_kernel_init(k, STK_PERIODICITY_DEFAULT);  /* 1 ms tick */

    stk_task_t *t0 = stk_task_create_privileged(task_led,    NULL, g_stack0, STACK_WORDS);
    stk_task_t *t1 = stk_task_create_privileged(task_sensor, NULL, g_stack1, STACK_WORDS);

    stk_kernel_add_task(k, t0);
    stk_kernel_add_task(k, t1);

    stk_kernel_start(k);                          /* never returns for KERNEL_STATIC */
    STK_C_ASSERT(false);                          /* should not reach here */
}

---

Migrating from CMSIS-RTOS2 or FreeRTOS

STK ships two ready-made compatibility wrappers that let you swap out your existing RTOS backend and replace it with STK without rewriting application code. Both wrappers live under interop/ and share the same design principles: thin translation of the source API onto STK primitives, ISR-safe where the original API requires it, and zero heap usage when the caller supplies static memory.

CMSIS-RTOS2 Wrapper (interop/cmsis/rtos2)

STK provides a complete CMSIS-RTOS2 compatibility layer (cmsis_os2_stk.cpp) that maps the standard ARM CMSIS-RTOS2 C API (cmsis_os2.h v2.3.0) onto the STK C++ kernel. This allows you to use STK as a drop-in RTOS backend in any project that targets the CMSIS-RTOS2 interface, including code generated by STM32CubeMX, MCUXpresso, or any other CMSIS-aware IDE or middleware stack.

Covered API groups: Kernel Management, Thread Management, Thread Flags, Event Flags, Mutex, Semaphore, Timer, Message Queue, Memory Pool.

Quick integration:

# 1. Add wrapper source
SRCS     += libs/stk/interop/cmsis/rtos2/src/cmsis_os2_stk.cpp

# 2. Add include paths
INCLUDES += -Ilibs/stk/include
INCLUDES += -Ilibs/stk/interop/cmsis/rtos2/include

// 3. No application changes required — existing CMSIS-RTOS2 calls work as-is
#include "cmsis_os2.h"

int main(void)
{
    osKernelInitialize();
    osThreadNew(app_thread, NULL, NULL);
    osKernelStart();   // never returns
}

See interop/cmsis/rtos2 for the full API coverage table, design notes, and configuration macros.

---

FreeRTOS Wrapper (interop/freertos)

STK provides a complete FreeRTOS compatibility layer (freertos_stk.cpp) that maps the standard FreeRTOS C API onto the STK C++ kernel. Existing FreeRTOS projects can migrate to STK with minimal or no changes to application code, while immediately gaining STK's lower scheduling overhead, reduced jitter, and smaller RAM footprint (see Benchmark above).

Covered API groups: Kernel Control, Task Management, Queue, Semaphore / Mutex, Software Timers, Event Groups, Task Notifications.

Quick integration:

# 1. Add wrapper source
SRCS     += libs/stk/interop/freertos/src/freertos_stk.cpp

# 2. Add include paths
INCLUDES += -Ilibs/stk/include
INCLUDES += -Ilibs/stk/interop/freertos/include

// 3. No application changes required — existing FreeRTOS calls work as-is
#include "FreeRTOS.h"
#include "task.h"

int main(void)
{
    xTaskCreate(app_task, "app", 256, NULL, 2, NULL);
    vTaskStartScheduler();   // never returns
}

See interop/freertos for the full API coverage table, design notes, known limitations, and FreeRTOSConfig.h requirements.

---

Wrapper Comparison

	CMSIS-RTOS2	FreeRTOS
Source file	cmsis_os2_stk.cpp	freertos_stk.cpp
Header to include	cmsis_os2.h	FreeRTOS.h, task.h
Priority model	Linear map: osPriority 1–56 → STK levels 0–31	Direct clamp: FreeRTOS 0–N → STK levels 0–31
Max tasks macro	CMSIS_STK_MAX_THREADS (default: 16)	FREERTOS_STK_MAX_TASKS (default: 16)
Default stack macro	CMSIS_STK_DEFAULT_STACK_WORDS (default: 256)	FREERTOS_STK_DEFAULT_STACK_WORDS (default: 256)
Static allocation	cb_mem / cb_size attributes	xTaskCreateStatic / xQueueCreateStatic
Scheduler backend	SwitchStrategyFP32	SwitchStrategyFP32
Tickless support	STK_TICKLESS_IDLE=1	STK_TICKLESS_IDLE=1

Note: Wrapper is missing important API your project is using? Contact with inquiry: contact@supertinykernel.org

---

Synchronization API (stk/stk_sync.h)

STK provides a feature-rich synchronization API which is located in stk/sync and resides in a dedicated namespace stk::sync. It is a high-performance framework designed for both single-core and multicore embedded systems and provides a robust mechanism for inter-task and inter-core communication.

Primitive	Description
hw::CriticalSection	Low-level primitive (including RAII version hw::CriticalSection::ScopedLock) that ensures atomicity by preventing preemption. Always available and independent of KERNEL_SYNC mode.
hw::SpinLock	High-performance non-recursive primitive for short critical sections. A key primitive for inter-core synchronization. Always available and independent of KERNEL_SYNC mode.
sync::ScopedCriticalSection	RAII wrapper around hw::CriticalSection (disables interrupts + multicore guard). Used as a building brick by all other stk::sync primitives. Always available, independent of KERNEL_SYNC mode.
sync::ConditionVariable	Monitor-pattern signaling used with an IMutex-compatible lock. Atomically releases the lock and blocks the caller; re-acquires it on wake. Supports Wait(), NotifyOne(), and NotifyAll().
sync::Event	Binary state-based signaling object. Supports manual-reset (wake all) and auto-reset (wake one) modes. Also provides Pulse() (Win32-compatible semantics) and non-blocking TryWait().
sync::EventFlags	32-bit multi-flag synchronization group. Each bit is an independent event; tasks can wait for any one (OPT_WAIT_ANY) or all (OPT_WAIT_ALL) requested bits. Matched bits are auto-cleared on wake; pass OPT_NO_CLEAR to keep them set. ISR-safe Set(), Clear(), and Get().
sync::Mutex	Recursive mutual exclusion primitive. Tracks ownership and recursion depth; the same task may lock multiple times. Ownership transfers directly to the first waiter (FIFO) on Unlock().
sync::RWMutex	Reader-Writer Lock for shared (read) and exclusive (write) access. Implements a Writer Preference policy to prevent writer starvation. Provides RAII guards ScopedTimedLock and ScopedTimedReadMutex.
sync::SpinLock	High-performance recursive spinlock for very short critical sections where context-switch overhead is unacceptable. Busy-waits until the lock is free; ISR-unsafe (use hw::CriticalSection from ISR context).
sync::Semaphore	Counting semaphore for resource throttling and signaling. Features a Direct Handover policy: Signal() passes the token directly to the first waiting task without touching the internal counter.
sync::Pipe	Thread-safe typed FIFO ring buffer for inter-task data passing. Parameterised on element type T and capacity N. Supports blocking and non-blocking single-element and bulk (WriteBulk / ReadBulk) I/O with zero dynamic memory allocation.
sync::MessageQueue	Fixed-capacity, fixed-message-size FIFO queue backed by a caller-supplied byte buffer. Parameterised on a byte count rather than a type, making it suitable for C-ABI structs or heterogeneous payloads.
Custom	Extensible: any class inheriting from ISyncObject can implement custom synchronization logic integrated with the kernel scheduler.

Note: Synchronization can be enabled in the kernel selectively by adding KERNEL_SYNC flag. If application does not need sync primitives and KERNEL_SYNC is not set to the kernel then synchronization-related implementation is stripped by the compiler saving FLASH and RAM.

---

Memory API (stk/stk_memory.h)

STK provides a deterministic, fragmentation-free memory allocation module located in stk/memory under the stk::memory namespace. It is designed for embedded systems where dynamic heap allocation is undesirable or prohibited by coding standards (e.g. MISRA C++ Rule 18-4-1).

memory::BlockMemoryPool

A fixed-size block allocator for scenarios where the same block size is repeatedly allocated and released, such as: packet buffers, sensor records, or message payloads.

Internally the pool maintains an intrusive singly-linked free-list inside the storage array itself. No separate metadata array is required, alloc and free are therefore O(1) with a minimal critical section.

Key properties:

• Zero fragmentation: fixed block size eliminates heap fragmentation over any run duration.
• O(1) alloc and free: constant-time operation with minimal critical section.
• Typed wrappers: AllocT<T>() / TryAllocT<T>() eliminate manual casts and assert type–size compatibility at allocation time.
• Debug diagnostics: double-free detection (O(n) free-list walk), bounds checking, and alignment validation in debug builds; all checks compile away in release.
• Non-copyable, non-movable: safe for use as a global or static object.

---

Traceable by SEGGER SystemView

Scheduling can be analyzed with the SEGGER SystemView.

There is a ready to try Blinky example with SEGGER SystemView tracing enabled: build/example/project/eclipse/stm/blinky-stm32f407g-disc1-segger

SEGGER SystemView

---

Development Mode (x86)

STK includes a full scheduling emulator for Windows to speed up a prototype development:

• Run the same embedded application on x86
• Debug threads using Visual Studio or Eclipse
• Perform unit testing without hardware
• Mock or simulate peripherals

---

Test Boards

STK has been tested on the following development boards:

• STM STM32F0DISCOVERY (Cortex-M0)
• STM NUCLEO-F103RB (Cortex-M3)
• NXP FRDM-K66F (Cortex-M4F)
• STM STM32F4DISCOVERY (Cortex-M4F)
• NXP MIMXRT1050 EVKB (Cortex-M7)
• Raspberry Pi Pico 2 W (Cortex-M33 / RISC-V variant)

Note: The list of tested boards does not limit STK’s compatibility. STK does not depend on a specific board and relies only on the underlying CPU architecture. As long as target CPU is supported, STK can be integrated with your hardware platform.

---

Test Coverage

Coverage	Description
Platform-independent code	100% unit test coverage
Platform-dependent code	tested under QEMU for each supported architecture

---

Benchmark

Board: STM32F407G-DISC1, MCU: STM32F407VG (Cortex-M4 168MHz)

Update: April 2026

Compiler: GCC 14.2.1 (arm-none-eabi-gcc)

This table compares SuperTinyKernel RTOS v.1.06.0 and FreeRTOS V11.2.0 across two compiler optimization levels: -Os and -Ofast. The workload consists of a CRC32-based synthetic task running across multiple tasks/threads to measure scheduling overhead and timing determinism. Benchmark projects are located in build/benchmark/eclipse and the benchmark suite is located in build/benchmark/perf.

The benchmark suite uses CRC32 hash calculations as the task payload. The score represents the number of CRC32 calculations performed by the task within a fixed time window. A higher score indicates a more efficient scheduler, meaning the tasks have more available CPU time.

Benchmark Results: STK vs. FreeRTOS (Cortex-M4 168MHz)

Kernel	Tasks	Opt	Throughput	Average	Jitter	Flash Size	RAM Used
STK	16	-Ofast	993,008	62,063	754	24.1 KB	20.3 KB
FreeRTOS	16	-Ofast	966,017	60,376	909	15.0 KB	22.2 KB
STK	16	-Os	752,136	47,008	425	14.9 KB	20.3 KB
FreeRTOS	16	-Os	735,342	45,958	472	12.6 KB	22.2 KB
—	—	—	—	—	—	—	—
STK	8	-Ofast	988,862	123,607	866	23.0 KB	11.4 KB
FreeRTOS	8	-Ofast	932,654	116,581	613	14.4 KB	13.3 KB
STK	8	-Os	753,013	94,126	659	14.9 KB	11.4 KB
FreeRTOS	8	-Os	713,292	89,161	468	12.6 KB	13.2 KB
—	—	—	—	—	—	—	—
STK	4	-Ofast	989,465	247,366	742	22.1 KB	6.9 KB
FreeRTOS	4	-Ofast	881,082	220,270	671	14.5 KB	8.8 KB
STK	4	-Os	753,459	188,364	564	14.9 KB	6.9 KB
FreeRTOS	4	-Os	673,845	168,461	510	12.6 KB	8.8 KB

Conclusion

• Throughput: STK consistently outperforms FreeRTOS, delivering **~12% more computational work** in direct head-to-head benchmarks. Furthermore, STK scales exceptionally well with aggressive compiler optimizations, yielding a 31% performance boost when moving from size-optimized (-Os) to speed-optimized (-Ofast) configurations.
• Scheduling Overhead: STK demonstrates exceptional scaling stability. Total throughput remains remarkably flat regardless of task count, indicating near-zero context-switching friction even as the system reaches 16 concurrent threads.
• Determinism: For timing-critical applications, STK is the superior choice. In high-load scenarios (16 tasks at -Ofast), STK provides **~17% lower jitter** than FreeRTOS, ensuring the precise temporal alignment required for time-sensitive tasks.
• Resource Efficiency: STK achieves a class-leading RAM footprint, utilizing **~21% less RAM** than FreeRTOS in 4-task scenarios and maintaining an **~8.5% RAM advantage** at 16 tasks.

---

Quick Start (1 minute)

The fastest way to evaluate STK is to build and run one of the bundled examples on your local machine — no hardware required.

Prerequisites: Git, CMake 3.15+, and either Visual Studio (Windows) or GCC via Eclipse CDT (Windows/Linux/macOS).

1. Clone repository

git clone https://github.com/SuperTinyKernel-RTOS/stk.git
cd stk

2. Build example for x86 development mode

You can build and run examples without any hardware on Windows.

with Visual Studio:

cd build/example/project/msvc

• blinky – emulates toggling of Red, Green, Blue LEDs
• critical_section – demonstrates support for Critical Section synchronization primitive
• tls - demonstrates the use of Thread-local storage (TLS)

with Eclipse CDT:

cd build/example/project/eclipse

• blinky-mingw32 – emulates toggling of Red, Green, Blue LEDs

To import project into Eclipse workspace:

File → Import... → Existing Projects into Workspace → Select root directory → Browse... → build/example/project/eclipse/blinky-mingw32

3. Run on a hardware

• Import the STM32, RPI (Raspberry Pico) or NXP example in Eclipse CDT IDE or MCUXpresso IDE
• Example folders provide Eclipse .launch files for launching on QEMU, Segger J-Link, OpenOCD
• Build and flash your target MCU

---

Building and Running Examples

You can use your own tools, below specified tools are just for a quick evaluation of STK's functionality using the provided examples.

Required tools for building examples

For STM32, RPI platforms:

• Eclipse Embedded CDT
• xPack GNU ARM Embedded GCC
• xPack QEMU ARM emulator

For NXP platforms:

• MCUXpresso IDE (includes GCC)

For RISC-V platforms:

• xPack GNU RISC-V Embedded GCC
• xPack QEMU RISC-V

If you are targeting only ARM, RISC-V tools are not required.

Examples

All examples are located in build/example/project/eclipse folder.

Examples are grouped by platform:

• stm – STM32, for QEMU or hardware
• rpi – Raspberry Pico
• risc-v - RISC-V, for QEMU or hardware
• x86 – Windows emulator

Import into Eclipse CDT

File → Import... → Existing Projects into Workspace → Select root directory → build/example/project/eclipse

STM32 and Raspberry Pico examples include SDK files located in deps/target folder.

NXP Examples

Located in build/example/project/nxp-mcuxpresso folder.

Compatible with:

• Kinetis K66/K26
• i.MX RT1050
• other compatible NXP MCUs with ARM Cortex-M0/M3/M4/M7/M33/...

---

Example Code

Below example toggles RGB LEDs on a development board. Each LED is controlled by its own thread, switching at 1s intervals:

#include <stk.h>
#include <sync/stk_sync_eventflags.h>

using namespace bsp;

enum { TASK_STACK_SIZE = 256 };

static const uint32_t FLAGS_ALL[] = {
    (1U << LED_RED),
    (1U << LED_ORANGE),
    (1U << LED_GREEN),
    (1U << LED_BLUE)
};
static stk::sync::EventFlags g_TaskFlags(FLAGS_ALL[LED_RED]);
static stk::Ticks g_Timeline = 0;

template <stk::EAccessMode _AccessMode>
class MyTask : public stk::Task<TASK_STACK_SIZE, _AccessMode>
{
    uint8_t  m_task_id;
    uint32_t m_my_flag;
    uint32_t m_next_flag;

public:
    MyTask(uint8_t task_id) : m_task_id(task_id), m_my_flag(FLAGS_ALL[task_id]),
          m_next_flag(FLAGS_ALL[(task_id + 1) % LED_MAX])
    {}

private:
    void Run() override
    {
        const stk::Timeout period = stk::GetTicksFromMs(1000);
        g_Timeline = stk::GetTicks();

        while (true)
        {
            uint32_t result = g_TaskFlags.Wait(m_my_flag, stk::sync::EventFlags::OPT_WAIT_ANY);
            if (stk::sync::EventFlags::IsError(result))
                continue;

            {
                stk::hw::CriticalSection::ScopedLock __guard;
                Led::SwitchOnExclusive(static_cast<LedId>(m_task_id));
            }

            stk::SleepUntil(g_Timeline += period);

            g_TaskFlags.Set(m_next_flag);
        }
    }
};

void RunExample()
{
    using namespace stk;

    Led::InitAll(false);

    const uint8_t KernelMode = KERNEL_STATIC | KERNEL_SYNC | (STK_TICKLESS_IDLE ? KERNEL_TICKLESS : 0);

    static Kernel<KernelMode, 4, SwitchStrategyRR, PlatformDefault> kernel;

    static MyTask<ACCESS_PRIVILEGED> task1(LED_RED);
    static MyTask<ACCESS_PRIVILEGED> task2(LED_ORANGE);
    static MyTask<ACCESS_PRIVILEGED> task3(LED_GREEN);
    static MyTask<ACCESS_PRIVILEGED> task4(LED_BLUE);

    kernel.Initialize();

    kernel.AddTask(&task1);
    kernel.AddTask(&task2);
    kernel.AddTask(&task3);
    kernel.AddTask(&task4);

    kernel.Start();

    STK_ASSERT(false);
}

---

Adding STK to your project

Add using Git & CMake:

1. Clone STK into your project

You can include STK in your project using git submodule or by copying the source into a libs/ or third_party/ folder:

# Example: using git submodule
cd your-project
git submodule add https://github.com/SuperTinyKernel-RTOS/stk.git libs/stk_rtos
git submodule update --init

2. Modify your CMakeLists.txt

Add the STK directory and link against STK:

# In your project CMakeLists.txt

# 1. Add STK as a subdirectory
add_subdirectory(libs/stk_rtos/stk)

# 2. Link STK into your executable or firmware target
target_link_libraries(your_firmware_target PUBLIC stk)

# 3. Include STK headers
target_include_directories(your_firmware_target
    PUBLIC
    ${CMAKE_SOURCE_DIR}/libs/stk_rtos/stk/include
)

3. Build

Run your normal build procedure. STK will now be compiled and linked with your project.

4. Initialize STK in your code

#include "stk.h"
// ...
static Kernel<KERNEL_STATIC, 3, SwitchStrategyRoundRobin, PlatformDefault> kernel;
// add tasks, start scheduling …

5. Testing & Simulation

• Use STK’s x86 development mode for rapid development
• Deploy to MCU when ready

Alternative Method 1: Copy STK directly into project files manually:

STK can be integrated by simply copying its source files from stk/ folder.

This method is suitable for:

• vendor-delivered projects (MCUXpresso, STM32CubeIDE, Keil, IAR, ...)
• closed-source or isolated environments
• projects without CMake or external dependency management

1. Copy STK folders

From the root of STK repository, copy:

stk/

into your project's source tree, for example:

your_project/
  src/
  drivers/
  libs/
    stk/   ← copied here

2. Add STK include paths

Add the following include path to your project configuration:

your_project/libs/stk/include

In CMake:

target_include_directories(your_firmware_target
    PUBLIC
    ${CMAKE_SOURCE_DIR}/libs/stk/include
)

In GCC/Makefile:

-Ilibs/stk/include

4. Create stk_config.h and add it to includes

For example, for ARM Cortex-M4 project:

#ifndef STK_CONFIG_H_
#define STK_CONFIG_H_

#include "core_device.h"

// Undefine if MCU is Arm Cortex-M4
#define _STK_ARCH_ARM_CORTEX_M

#ifdef _STK_ARCH_ARM_CORTEX_M
    // Redefine if SysTick handler name is different from SysTick_Handler
    //#define STK_SYSTICK_HANDLER SysTick_Handler

    // Redefine if PendSv handler name is different from PendSV_Handler
    //#define STK_PENDSV_HANDLER PendSV_Handler

    // Redefine if SVC handler name is different from SVC_Handler
    //#define STK_SVC_HANDLER SVC_Handler
#endif

#endif /* STK_CONFIG_H_ */

5. Add STK source files to build

You must compile STK core sources from:

stk/src

Minimum required sources:

stk/src/arch/<your-platform>/...

Example (GCC, ARM Cortex-M MCU):

SRCS += libs/stk/src/arch/arm/cortex-m/stk_arch_arm-cortex-m.cpp

6. Build

Build your project normally — STK will now be compiled together with it.

Alternative Method 2: Copy only STK kernel to your project using Git Sparse Clone method:

Note: With this method only /stk folder containing STK kernel files is cloned, examples, deps and anything else is omitted.

1. Clone the repo metadata without downloading any files (–no-checkout) and only get the latest commit (–depth 1)

clone --depth 1 --filter=blob:none --no-checkout https://github.com/SuperTinyKernel-RTOS/stk.git

2. Enter the folder

stk

3. Initialize sparse-checkout

sparse-checkout init --cone

4. Tell Git which folder you actually want

sparse-checkout set stk

5. Checkout the files

checkout

---

Porting & Extending

Porting STK to a new platform is straightforward. Platform-dependent files are located in:

stk/src/arch
stk/include/arch

STK's OOD design allows easy extension of its functionality. For example, you can develop and attach your own scheduling algorithm by inheriting ITaskSwitchStrategy interface.

---

License

STK is released under the MIT Open Source License.

You may freely use it in projects of any type:

• Commercial
• Closed-Source
• Open-Source
• Academic
• etc. (if in doubt, please contact us)

---

Services

While SuperTinyKernel™ RTOS is provided under the permissive MIT license, we offer dedicated professional services for organizations integrating STK into production-grade, mission-critical, or regulated environments.

🛡️ Legal & Compliance

• Warranty of Title: Full intellectual property (IP) indemnification and provenance guarantees required by corporate legal departments.
• Safety-Critical Compliance: Expert assistance in achieving IEC 61508 (Industrial), IEC 62304 (Medical), ISO 26262 (Automotive), or DO-178C (Aerospace) certification for STK-based systems.
• Custom Licensing: Tailored Enterprise License Agreements (ELA) for organizations with strict open-source procurement policies.
• Audit & Due Diligence: Code audit and licensing assessment to satisfy corporate or regulatory requirements.

🛠️ Engineering & Optimization

• Architecture Porting: Custom development for specialized ARM, RISC-V, or other architectures, including embedded SoCs and microcontrollers.
• Real-Time Performance Tuning: Hard real-time optimization, latency profiling, and jitter reduction for mission-critical applications.
• Custom Driver & Peripheral Integration: STK integration with complex peripherals (High-Speed USB, I2S/TDM audio, networking stacks, DMA engines, etc.).

📞 Enterprise Support & Maintenance

• SLA-Backed Support: Guaranteed response times for technical inquiries and critical bug fixes, with priority escalation paths.
• Architectural Consulting: Deep-dive code reviews, system design guidance, and reliability analysis for your firmware.
• Long-Term Maintenance Contracts: Versioned updates, patch management, and minor feature requests for commercial products.
• Training & Knowledge Transfer: Remote workshops, RTOS best practices, and team training for engineers working with STK.

For inquiries, contact: contact@supertinykernel.org
