STK CMSIS RTOS2 API

CMSIS RTOS2 interface for C++ API of SuperTinyKernel (STK). More...

Classes
struct	osVersion_t
	Version information. More...
struct	osThreadAttr_t
	Attributes structure for thread. More...
struct	osTimerAttr_t
	Attributes structure for timer. More...
struct	osEventFlagsAttr_t
	Attributes structure for event flags. More...
struct	osMutexAttr_t
	Attributes structure for mutex. More...
struct	osSemaphoreAttr_t
	Attributes structure for semaphore. More...
struct	osMemoryPoolAttr_t
	Attributes structure for memory pool. More...
struct	osMessageQueueAttr_t
	Attributes structure for message queue. More...

Macros
#define	osWaitForever   0xFFFFFFFFU
	Wait forever timeout value.
#define	osFlagsWaitAny   0x00000000U
	Wait for any flag (default).
#define	osFlagsWaitAll   0x00000001U
	Wait for all flags.
#define	osFlagsNoClear   0x00000002U
	Do not clear flags which have been specified to wait for.
#define	osFlagsError   0x80000000U
	Error indicator.
#define	osFlagsErrorUnknown   0xFFFFFFFFU
	osError (-1).
#define	osFlagsErrorTimeout   0xFFFFFFFEU
	osErrorTimeout (-2).
#define	osFlagsErrorResource   0xFFFFFFFDU
	osErrorResource (-3).
#define	osFlagsErrorParameter   0xFFFFFFFCU
	osErrorParameter (-4).
#define	osFlagsErrorISR   0xFFFFFFFAU
	osErrorISR (-6).
#define	osFlagsErrorSafetyClass   0xFFFFFFF9U
	osErrorSafetyClass (-7).
#define	osThreadDetached   0x00000000U
	Thread created in detached mode (default).
#define	osThreadJoinable   0x00000001U
	Thread created in joinable mode.
#define	osThreadUnprivileged   0x00000002U
	Thread runs in unprivileged mode.
#define	osThreadPrivileged   0x00000004U
	Thread runs in privileged mode.
#define	osThreadZone_Pos   8U
	MPU protected zone position.
#define	osThreadZone_Msk   (0x3FUL << osThreadZone_Pos)
	MPU protected zone mask.
#define	osThreadZone_Valid   (0x80UL << osThreadZone_Pos)
	MPU protected zone valid flag.
#define	osThreadZone(n)
	MPU zone value in attribute bit field format.
#define	osThreadProcessor(n)
	Thread processor number for SMP systems.
#define	osMutexRecursive   0x00000001U
	Recursive mutex.
#define	osMutexPrioInherit   0x00000002U
	Priority inherit protocol.
#define	osMutexRobust   0x00000008U
	Robust mutex.
#define	osSafetyClass_Pos   16U
	Safety class position.
#define	osSafetyClass_Msk   (0x0FUL << osSafetyClass_Pos)
	Safety class mask.
#define	osSafetyClass_Valid   (0x10UL << osSafetyClass_Pos)
	Safety class valid flag.
#define	osSafetyClass(n)
	Safety class.
#define	osSafetyWithSameClass   0x00000001U
	Objects with same safety class.
#define	osSafetyWithLowerClass   0x00000002U
	Objects with lower safety class.
#define	osErrorId   0xFFFFFFFFU
	osError (-1).
#define	TZ_MODULEID_T

Typedefs
typedef void(*	osThreadFunc_t) (void *argument)
	Entry point of a thread.
typedef void(*	osTimerFunc_t) (void *argument)
	Timer callback function.
typedef void *	osThreadId_t
typedef void *	osTimerId_t
typedef void *	osEventFlagsId_t
typedef void *	osMutexId_t
typedef void *	osSemaphoreId_t
typedef void *	osMemoryPoolId_t
typedef void *	osMessageQueueId_t
typedef uint32_t	TZ_ModuleId_t

Enumerations
enum	osKernelState_t {   osKernelInactive = 0 ,   osKernelReady = 1 ,   osKernelRunning = 2 ,   osKernelLocked = 3 ,   osKernelSuspended = 4 ,   osKernelError = -1 ,   osKernelReserved = 0x7FFFFFFF }
	Kernel state. More...
enum	osThreadState_t {   osThreadInactive = 0 ,   osThreadReady = 1 ,   osThreadRunning = 2 ,   osThreadBlocked = 3 ,   osThreadTerminated = 4 ,   osThreadError = -1 ,   osThreadReserved = 0x7FFFFFFF }
	Thread state. More...
enum	osPriority_t {   osPriorityNone = 0 ,   osPriorityIdle = 1 ,   osPriorityLow = 8 ,   osPriorityLow1 = 8+1 ,   osPriorityLow2 = 8+2 ,   osPriorityLow3 = 8+3 ,   osPriorityLow4 = 8+4 ,   osPriorityLow5 = 8+5 ,   osPriorityLow6 = 8+6 ,   osPriorityLow7 = 8+7 ,   osPriorityBelowNormal = 16 ,   osPriorityBelowNormal1 = 16+1 ,   osPriorityBelowNormal2 = 16+2 ,   osPriorityBelowNormal3 = 16+3 ,   osPriorityBelowNormal4 = 16+4 ,   osPriorityBelowNormal5 = 16+5 ,   osPriorityBelowNormal6 = 16+6 ,   osPriorityBelowNormal7 = 16+7 ,   osPriorityNormal = 24 ,   osPriorityNormal1 = 24+1 ,   osPriorityNormal2 = 24+2 ,   osPriorityNormal3 = 24+3 ,   osPriorityNormal4 = 24+4 ,   osPriorityNormal5 = 24+5 ,   osPriorityNormal6 = 24+6 ,   osPriorityNormal7 = 24+7 ,   osPriorityAboveNormal = 32 ,   osPriorityAboveNormal1 = 32+1 ,   osPriorityAboveNormal2 = 32+2 ,   osPriorityAboveNormal3 = 32+3 ,   osPriorityAboveNormal4 = 32+4 ,   osPriorityAboveNormal5 = 32+5 ,   osPriorityAboveNormal6 = 32+6 ,   osPriorityAboveNormal7 = 32+7 ,   osPriorityHigh = 40 ,   osPriorityHigh1 = 40+1 ,   osPriorityHigh2 = 40+2 ,   osPriorityHigh3 = 40+3 ,   osPriorityHigh4 = 40+4 ,   osPriorityHigh5 = 40+5 ,   osPriorityHigh6 = 40+6 ,   osPriorityHigh7 = 40+7 ,   osPriorityRealtime = 48 ,   osPriorityRealtime1 = 48+1 ,   osPriorityRealtime2 = 48+2 ,   osPriorityRealtime3 = 48+3 ,   osPriorityRealtime4 = 48+4 ,   osPriorityRealtime5 = 48+5 ,   osPriorityRealtime6 = 48+6 ,   osPriorityRealtime7 = 48+7 ,   osPriorityISR = 56 ,   osPriorityError = -1 ,   osPriorityReserved = 0x7FFFFFFF }
	Priority values. More...
enum	osTimerType_t {   osTimerOnce = 0 ,   osTimerPeriodic = 1 }
	Timer type. More...
enum	osStatus_t {   osOK = 0 ,   osError = -1 ,   osErrorTimeout = -2 ,   osErrorResource = -3 ,   osErrorParameter = -4 ,   osErrorNoMemory = -5 ,   osErrorISR = -6 ,   osErrorSafetyClass = -7 ,   osStatusReserved = 0x7FFFFFFF }
	Status code values returned by CMSIS-RTOS functions. More...

Functions
osStatus_t	osKernelInitialize (void)
osStatus_t	osKernelGetInfo (osVersion_t *version, char *id_buf, uint32_t id_size)

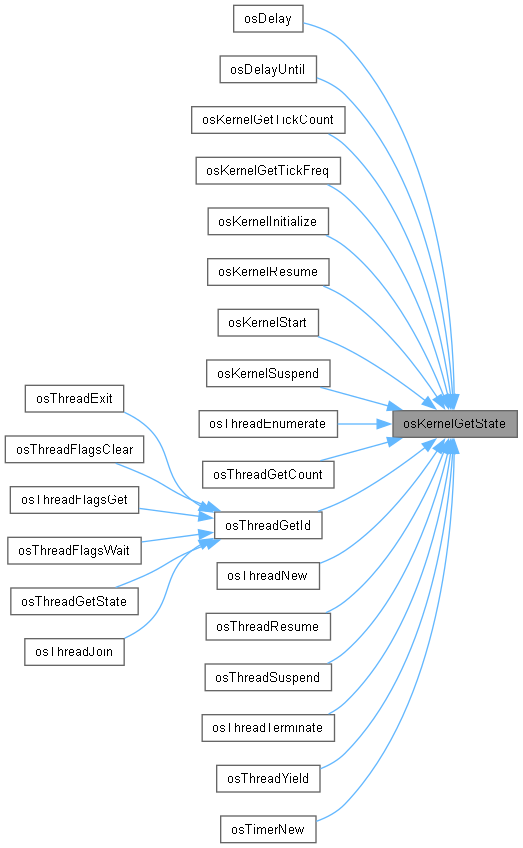

osKernelState_t	osKernelGetState (void)
osStatus_t	osKernelStart (void)
int32_t	osKernelLock (void)
int32_t	osKernelUnlock (void)

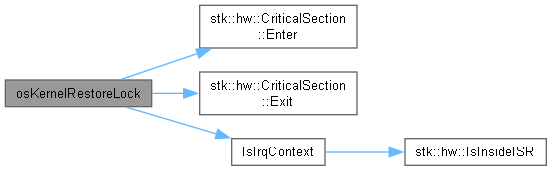

int32_t	osKernelRestoreLock (int32_t lock)

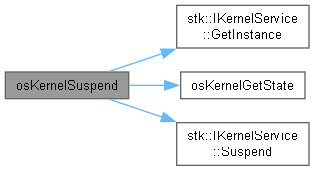

uint32_t	osKernelSuspend (void)
void	osKernelResume (uint32_t sleep_ticks)
osStatus_t	osKernelProtect (uint32_t safety_class)
osStatus_t	osKernelDestroyClass (uint32_t safety_class, uint32_t mode)
uint32_t	osKernelGetTickCount (void)
uint32_t	osKernelGetTickFreq (void)

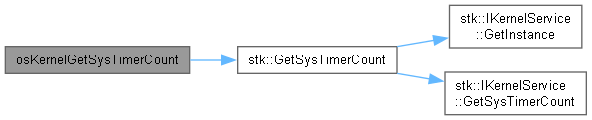

uint32_t	osKernelGetSysTimerCount (void)
uint64_t	osKernelGetSysTimerCount64 (void)
uint32_t	osKernelGetSysTimerFreq (void)
osThreadId_t	osThreadNew (osThreadFunc_t func, void *argument, const osThreadAttr_t *attr)
const char *	osThreadGetName (osThreadId_t thread_id)
uint32_t	osThreadGetClass (osThreadId_t thread_id)
uint32_t	osThreadGetZone (osThreadId_t thread_id)

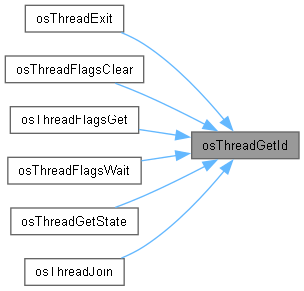

osThreadId_t	osThreadGetId (void)

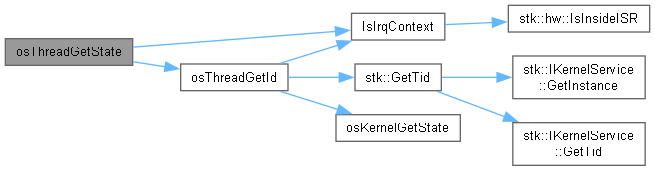

osThreadState_t	osThreadGetState (osThreadId_t thread_id)
uint32_t	osThreadGetStackSize (osThreadId_t thread_id)
uint32_t	osThreadGetStackSpace (osThreadId_t thread_id)
osStatus_t	osThreadSetPriority (osThreadId_t thread_id, osPriority_t priority)
osPriority_t	osThreadGetPriority (osThreadId_t thread_id)

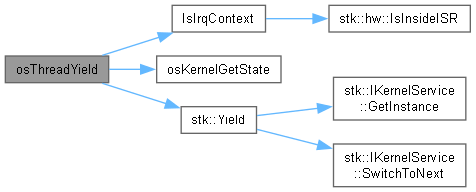

osStatus_t	osThreadYield (void)
osStatus_t	osThreadSuspend (osThreadId_t thread_id)
osStatus_t	osThreadResume (osThreadId_t thread_id)
osStatus_t	osThreadDetach (osThreadId_t thread_id)
osStatus_t	osThreadJoin (osThreadId_t thread_id)
void	osThreadExit (void)
	Terminate execution of current running thread.
osStatus_t	osThreadTerminate (osThreadId_t thread_id)
osStatus_t	osThreadFeedWatchdog (uint32_t ticks)
osStatus_t	osThreadProtectPrivileged (void)
osStatus_t	osThreadSuspendClass (uint32_t safety_class, uint32_t mode)
osStatus_t	osThreadResumeClass (uint32_t safety_class, uint32_t mode)
osStatus_t	osThreadTerminateZone (uint32_t zone)
osStatus_t	osThreadSetAffinityMask (osThreadId_t thread_id, uint32_t affinity_mask)
uint32_t	osThreadGetAffinityMask (osThreadId_t thread_id)
uint32_t	osThreadGetCount (void)
uint32_t	osThreadEnumerate (osThreadId_t *thread_array, uint32_t array_items)
uint32_t	osThreadFlagsSet (osThreadId_t thread_id, uint32_t flags)
uint32_t	osThreadFlagsClear (uint32_t flags)
uint32_t	osThreadFlagsGet (void)
uint32_t	osThreadFlagsWait (uint32_t flags, uint32_t options, uint32_t timeout)
osStatus_t	osDelay (uint32_t ticks)
osStatus_t	osDelayUntil (uint32_t ticks)
osTimerId_t	osTimerNew (osTimerFunc_t func, osTimerType_t type, void *argument, const osTimerAttr_t *attr)
const char *	osTimerGetName (osTimerId_t timer_id)
osStatus_t	osTimerStart (osTimerId_t timer_id, uint32_t ticks)
osStatus_t	osTimerStop (osTimerId_t timer_id)
uint32_t	osTimerIsRunning (osTimerId_t timer_id)
osStatus_t	osTimerDelete (osTimerId_t timer_id)
osEventFlagsId_t	osEventFlagsNew (const osEventFlagsAttr_t *attr)
const char *	osEventFlagsGetName (osEventFlagsId_t ef_id)
uint32_t	osEventFlagsSet (osEventFlagsId_t ef_id, uint32_t flags)
uint32_t	osEventFlagsClear (osEventFlagsId_t ef_id, uint32_t flags)
uint32_t	osEventFlagsGet (osEventFlagsId_t ef_id)
uint32_t	osEventFlagsWait (osEventFlagsId_t ef_id, uint32_t flags, uint32_t options, uint32_t timeout)
osStatus_t	osEventFlagsDelete (osEventFlagsId_t ef_id)
osMutexId_t	osMutexNew (const osMutexAttr_t *attr)
const char *	osMutexGetName (osMutexId_t mutex_id)
osStatus_t	osMutexAcquire (osMutexId_t mutex_id, uint32_t timeout)
osStatus_t	osMutexRelease (osMutexId_t mutex_id)
osThreadId_t	osMutexGetOwner (osMutexId_t mutex_id)
osStatus_t	osMutexDelete (osMutexId_t mutex_id)
osSemaphoreId_t	osSemaphoreNew (uint32_t max_count, uint32_t initial_count, const osSemaphoreAttr_t *attr)
const char *	osSemaphoreGetName (osSemaphoreId_t semaphore_id)
osStatus_t	osSemaphoreAcquire (osSemaphoreId_t semaphore_id, uint32_t timeout)
osStatus_t	osSemaphoreRelease (osSemaphoreId_t semaphore_id)
uint32_t	osSemaphoreGetCount (osSemaphoreId_t semaphore_id)
osStatus_t	osSemaphoreDelete (osSemaphoreId_t semaphore_id)
osMemoryPoolId_t	osMemoryPoolNew (uint32_t block_count, uint32_t block_size, const osMemoryPoolAttr_t *attr)
const char *	osMemoryPoolGetName (osMemoryPoolId_t mp_id)
void *	osMemoryPoolAlloc (osMemoryPoolId_t mp_id, uint32_t timeout)
osStatus_t	osMemoryPoolFree (osMemoryPoolId_t mp_id, void *block)
uint32_t	osMemoryPoolGetCapacity (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetBlockSize (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetCount (osMemoryPoolId_t mp_id)
uint32_t	osMemoryPoolGetSpace (osMemoryPoolId_t mp_id)
osStatus_t	osMemoryPoolDelete (osMemoryPoolId_t mp_id)
osMessageQueueId_t	osMessageQueueNew (uint32_t msg_count, uint32_t msg_size, const osMessageQueueAttr_t *attr)
const char *	osMessageQueueGetName (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueuePut (osMessageQueueId_t mq_id, const void *msg_ptr, uint8_t msg_prio, uint32_t timeout)
osStatus_t	osMessageQueueGet (osMessageQueueId_t mq_id, void *msg_ptr, uint8_t *msg_prio, uint32_t timeout)
uint32_t	osMessageQueueGetCapacity (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetMsgSize (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetCount (osMessageQueueId_t mq_id)
uint32_t	osMessageQueueGetSpace (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueueReset (osMessageQueueId_t mq_id)
osStatus_t	osMessageQueueDelete (osMessageQueueId_t mq_id)
uint32_t	osWatchdogAlarm_Handler (osThreadId_t thread_id)
void	osZoneSetup_Callback (uint32_t zone)
void	osFaultResume (void)
	Resume normal operation when exiting exception faults.

Detailed Description

CMSIS RTOS2 interface for C++ API of SuperTinyKernel (STK).

Macro Definition Documentation

osErrorId

#define osErrorId   0xFFFFFFFFU

osError (-1).

Definition at line 249 of file cmsis_os2.h.

osFlagsError

#define osFlagsError   0x80000000U

Error indicator.

Definition at line 209 of file cmsis_os2.h.

Referenced by osEventFlagsClear(), osEventFlagsSet(), osEventFlagsWait(), and osThreadFlagsSet().

osFlagsErrorISR

#define osFlagsErrorISR   0xFFFFFFFAU

osErrorISR (-6).

Definition at line 214 of file cmsis_os2.h.

Referenced by osThreadFlagsWait(), and StkFlagsResultToCmsis().

osFlagsErrorParameter

#define osFlagsErrorParameter   0xFFFFFFFCU

osErrorParameter (-4).

Definition at line 213 of file cmsis_os2.h.

Referenced by osEventFlagsClear(), osEventFlagsSet(), osEventFlagsWait(), osThreadFlagsSet(), and StkFlagsResultToCmsis().

osFlagsErrorResource

#define osFlagsErrorResource   0xFFFFFFFDU

osErrorResource (-3).

Definition at line 212 of file cmsis_os2.h.

osFlagsErrorSafetyClass

#define osFlagsErrorSafetyClass   0xFFFFFFF9U

osErrorSafetyClass (-7).

Definition at line 215 of file cmsis_os2.h.

osFlagsErrorTimeout

#define osFlagsErrorTimeout   0xFFFFFFFEU

osErrorTimeout (-2).

Definition at line 211 of file cmsis_os2.h.

Referenced by StkFlagsResultToCmsis().

osFlagsErrorUnknown

#define osFlagsErrorUnknown   0xFFFFFFFFU

osError (-1).

Definition at line 210 of file cmsis_os2.h.

Referenced by osThreadFlagsClear(), osThreadFlagsWait(), and StkFlagsResultToCmsis().

osFlagsNoClear

#define osFlagsNoClear   0x00000002U

Do not clear flags which have been specified to wait for.

Definition at line 206 of file cmsis_os2.h.

Referenced by CmsisFlagsOptionsToStk().

osFlagsWaitAll

#define osFlagsWaitAll   0x00000001U

Wait for all flags.

Definition at line 205 of file cmsis_os2.h.

Referenced by CmsisFlagsOptionsToStk().

osFlagsWaitAny

#define osFlagsWaitAny   0x00000000U

Wait for any flag (default).

Definition at line 204 of file cmsis_os2.h.

osMutexPrioInherit

#define osMutexPrioInherit   0x00000002U

Priority inherit protocol.

Definition at line 234 of file cmsis_os2.h.

osMutexRecursive

#define osMutexRecursive   0x00000001U

Recursive mutex.

Definition at line 233 of file cmsis_os2.h.

osMutexRobust

#define osMutexRobust   0x00000008U

Robust mutex.

Definition at line 235 of file cmsis_os2.h.

osSafetyClass

#define osSafetyClass

(

n

)

Value:

                                 ((((n) << osSafetyClass_Pos) & osSafetyClass_Msk) | \
                                 osSafetyClass_Valid)

Safety class.

Definition at line 241 of file cmsis_os2.h.

#define osSafetyClass(n)        ((((n) << osSafetyClass_Pos) & osSafetyClass_Msk) | \
                                 osSafetyClass_Valid)

osSafetyClass_Msk

#define osSafetyClass_Msk   (0x0FUL << osSafetyClass_Pos)

Safety class mask.

Definition at line 239 of file cmsis_os2.h.

osSafetyClass_Pos

#define osSafetyClass_Pos   16U

Safety class position.

Definition at line 238 of file cmsis_os2.h.

osSafetyClass_Valid

#define osSafetyClass_Valid   (0x10UL << osSafetyClass_Pos)

Safety class valid flag.

Definition at line 240 of file cmsis_os2.h.

osSafetyWithLowerClass

#define osSafetyWithLowerClass   0x00000002U

Objects with lower safety class.

Definition at line 246 of file cmsis_os2.h.

osSafetyWithSameClass

#define osSafetyWithSameClass   0x00000001U

Objects with same safety class.

Definition at line 245 of file cmsis_os2.h.

osThreadDetached

#define osThreadDetached   0x00000000U

Thread created in detached mode (default).

Definition at line 218 of file cmsis_os2.h.

osThreadJoinable

#define osThreadJoinable   0x00000001U

Thread created in joinable mode.

Definition at line 219 of file cmsis_os2.h.

Referenced by osThreadNew().

osThreadPrivileged

#define osThreadPrivileged   0x00000004U

Thread runs in privileged mode.

Definition at line 221 of file cmsis_os2.h.

osThreadProcessor

#define osThreadProcessor

(

n

)

Value:

(1UL << (n))

Thread processor number for SMP systems.

Definition at line 230 of file cmsis_os2.h.

osThreadUnprivileged

#define osThreadUnprivileged   0x00000002U

Thread runs in unprivileged mode.

Definition at line 220 of file cmsis_os2.h.

osThreadZone

#define osThreadZone

(

n

)

Value:

                                 ((((n) << osThreadZone_Pos) & osThreadZone_Msk) | \
                                 osThreadZone_Valid)

MPU zone value in attribute bit field format.

Definition at line 226 of file cmsis_os2.h.

#define osThreadZone(n)         ((((n) << osThreadZone_Pos) & osThreadZone_Msk) | \
                                 osThreadZone_Valid)

osThreadZone_Msk

#define osThreadZone_Msk   (0x3FUL << osThreadZone_Pos)

MPU protected zone mask.

Definition at line 224 of file cmsis_os2.h.

osThreadZone_Pos

#define osThreadZone_Pos   8U

MPU protected zone position.

Definition at line 223 of file cmsis_os2.h.

osThreadZone_Valid

#define osThreadZone_Valid   (0x80UL << osThreadZone_Pos)

MPU protected zone valid flag.

Definition at line 225 of file cmsis_os2.h.

osWaitForever

#define osWaitForever   0xFFFFFFFFU

Wait forever timeout value.

Definition at line 201 of file cmsis_os2.h.

TZ_MODULEID_T

#define TZ_MODULEID_T

Definition at line 288 of file cmsis_os2.h.

Typedef Documentation

osEventFlagsId_t

typedef void* osEventFlagsId_t

Event Flags ID identifies the event flags.

Definition at line 272 of file cmsis_os2.h.

osMemoryPoolId_t

typedef void* osMemoryPoolId_t

Memory Pool ID identifies the memory pool.

Definition at line 281 of file cmsis_os2.h.

osMessageQueueId_t

typedef void* osMessageQueueId_t

Message Queue ID identifies the message queue.

Definition at line 284 of file cmsis_os2.h.

osMutexId_t

typedef void* osMutexId_t

Mutex ID identifies the mutex.

Definition at line 275 of file cmsis_os2.h.

osSemaphoreId_t

typedef void* osSemaphoreId_t

Semaphore ID identifies the semaphore.

Definition at line 278 of file cmsis_os2.h.

osThreadFunc_t

typedef void(* osThreadFunc_t) (void *argument)

Entry point of a thread.

Definition at line 189 of file cmsis_os2.h.

osThreadId_t

typedef void* osThreadId_t

Thread ID identifies the thread.

Definition at line 266 of file cmsis_os2.h.

osTimerFunc_t

typedef void(* osTimerFunc_t) (void *argument)

Timer callback function.

Definition at line 192 of file cmsis_os2.h.

osTimerId_t

typedef void* osTimerId_t

Timer ID identifies the timer.

Definition at line 269 of file cmsis_os2.h.

TZ_ModuleId_t

typedef uint32_t TZ_ModuleId_t

Data type that identifies secure software modules called by a process.

Definition at line 290 of file cmsis_os2.h.

Enumeration Type Documentation

osKernelState_t

enum osKernelState_t

Kernel state.

Enumerator
osKernelInactive	Inactive.
osKernelReady	Ready.
osKernelRunning	Running.
osKernelLocked	Locked.
osKernelSuspended	Suspended.
osKernelError	Error.
osKernelReserved	Prevents enum down-size compiler optimization.

Definition at line 110 of file cmsis_os2.h.

             {
  osKernelInactive        =  0,
  osKernelReady           =  1,
  osKernelRunning         =  2,
  osKernelLocked          =  3,
  osKernelSuspended       =  4,
  osKernelError           = -1,
  osKernelReserved        = 0x7FFFFFFF
} osKernelState_t;

osPriority_t

enum osPriority_t

Priority values.

Enumerator
osPriorityNone	No priority (not initialized).
osPriorityIdle	Reserved for Idle thread.
osPriorityLow	Priority: low.
osPriorityLow1	Priority: low + 1.
osPriorityLow2	Priority: low + 2.
osPriorityLow3	Priority: low + 3.
osPriorityLow4	Priority: low + 4.
osPriorityLow5	Priority: low + 5.
osPriorityLow6	Priority: low + 6.
osPriorityLow7	Priority: low + 7.
osPriorityBelowNormal	Priority: below normal.
osPriorityBelowNormal1	Priority: below normal + 1.
osPriorityBelowNormal2	Priority: below normal + 2.
osPriorityBelowNormal3	Priority: below normal + 3.
osPriorityBelowNormal4	Priority: below normal + 4.
osPriorityBelowNormal5	Priority: below normal + 5.
osPriorityBelowNormal6	Priority: below normal + 6.
osPriorityBelowNormal7	Priority: below normal + 7.
osPriorityNormal	Priority: normal.
osPriorityNormal1	Priority: normal + 1.
osPriorityNormal2	Priority: normal + 2.
osPriorityNormal3	Priority: normal + 3.
osPriorityNormal4	Priority: normal + 4.
osPriorityNormal5	Priority: normal + 5.
osPriorityNormal6	Priority: normal + 6.
osPriorityNormal7	Priority: normal + 7.
osPriorityAboveNormal	Priority: above normal.
osPriorityAboveNormal1	Priority: above normal + 1.
osPriorityAboveNormal2	Priority: above normal + 2.
osPriorityAboveNormal3	Priority: above normal + 3.
osPriorityAboveNormal4	Priority: above normal + 4.
osPriorityAboveNormal5	Priority: above normal + 5.
osPriorityAboveNormal6	Priority: above normal + 6.
osPriorityAboveNormal7	Priority: above normal + 7.
osPriorityHigh	Priority: high.
osPriorityHigh1	Priority: high + 1.
osPriorityHigh2	Priority: high + 2.
osPriorityHigh3	Priority: high + 3.
osPriorityHigh4	Priority: high + 4.
osPriorityHigh5	Priority: high + 5.
osPriorityHigh6	Priority: high + 6.
osPriorityHigh7	Priority: high + 7.
osPriorityRealtime	Priority: realtime.
osPriorityRealtime1	Priority: realtime + 1.
osPriorityRealtime2	Priority: realtime + 2.
osPriorityRealtime3	Priority: realtime + 3.
osPriorityRealtime4	Priority: realtime + 4.
osPriorityRealtime5	Priority: realtime + 5.
osPriorityRealtime6	Priority: realtime + 6.
osPriorityRealtime7	Priority: realtime + 7.
osPriorityISR	Reserved for ISR deferred thread.
osPriorityError	System cannot determine priority or illegal priority.
osPriorityReserved	Prevents enum down-size compiler optimization.

Definition at line 132 of file cmsis_os2.h.

             {
  osPriorityNone          =  0,
  osPriorityIdle          =  1,
  osPriorityLow           =  8,
  osPriorityLow1          =  8+1,
  osPriorityLow2          =  8+2,
  osPriorityLow3          =  8+3,
  osPriorityLow4          =  8+4,
  osPriorityLow5          =  8+5,
  osPriorityLow6          =  8+6,
  osPriorityLow7          =  8+7,
  osPriorityBelowNormal   = 16,
  osPriorityBelowNormal1  = 16+1,
  osPriorityBelowNormal2  = 16+2,
  osPriorityBelowNormal3  = 16+3,
  osPriorityBelowNormal4  = 16+4,
  osPriorityBelowNormal5  = 16+5,
  osPriorityBelowNormal6  = 16+6,
  osPriorityBelowNormal7  = 16+7,
  osPriorityNormal        = 24,
  osPriorityNormal1       = 24+1,
  osPriorityNormal2       = 24+2,
  osPriorityNormal3       = 24+3,
  osPriorityNormal4       = 24+4,
  osPriorityNormal5       = 24+5,
  osPriorityNormal6       = 24+6,
  osPriorityNormal7       = 24+7,
  osPriorityAboveNormal   = 32,
  osPriorityAboveNormal1  = 32+1,
  osPriorityAboveNormal2  = 32+2,
  osPriorityAboveNormal3  = 32+3,
  osPriorityAboveNormal4  = 32+4,
  osPriorityAboveNormal5  = 32+5,
  osPriorityAboveNormal6  = 32+6,
  osPriorityAboveNormal7  = 32+7,
  osPriorityHigh          = 40,
  osPriorityHigh1         = 40+1,
  osPriorityHigh2         = 40+2,
  osPriorityHigh3         = 40+3,
  osPriorityHigh4         = 40+4,
  osPriorityHigh5         = 40+5,
  osPriorityHigh6         = 40+6,
  osPriorityHigh7         = 40+7,
  osPriorityRealtime      = 48,
  osPriorityRealtime1     = 48+1,
  osPriorityRealtime2     = 48+2,
  osPriorityRealtime3     = 48+3,
  osPriorityRealtime4     = 48+4,
  osPriorityRealtime5     = 48+5,
  osPriorityRealtime6     = 48+6,
  osPriorityRealtime7     = 48+7,
  osPriorityISR           = 56,
  osPriorityError         = -1,
  osPriorityReserved      = 0x7FFFFFFF
} osPriority_t;

osStatus_t

enum osStatus_t

Status code values returned by CMSIS-RTOS functions.

Enumerator
osOK	Operation completed successfully.
osError	Unspecified RTOS error: run-time error but no other error message fits.
osErrorTimeout	Operation not completed within the timeout period.
osErrorResource	Resource not available.
osErrorParameter	Parameter error.
osErrorNoMemory	System is out of memory: it was impossible to allocate or reserve memory for the operation.
osErrorISR	Not allowed in ISR context: the function cannot be called from interrupt service routines.
osErrorSafetyClass	Operation denied because of safety class violation.
osStatusReserved	Prevents enum down-size compiler optimization.

Definition at line 252 of file cmsis_os2.h.

             {
  osOK                    =  0,
  osError                 = -1,
  osErrorTimeout          = -2,
  osErrorResource         = -3,
  osErrorParameter        = -4,
  osErrorNoMemory         = -5,
  osErrorISR              = -6,
  osErrorSafetyClass      = -7,
  osStatusReserved        = 0x7FFFFFFF
} osStatus_t;

osThreadState_t

enum osThreadState_t

Thread state.

Enumerator
osThreadInactive	Inactive.
osThreadReady	Ready.
osThreadRunning	Running.
osThreadBlocked	Blocked.
osThreadTerminated	Terminated.
osThreadError	Error.
osThreadReserved	Prevents enum down-size compiler optimization.

Definition at line 121 of file cmsis_os2.h.

             {
  osThreadInactive        =  0,
  osThreadReady           =  1,
  osThreadRunning         =  2,
  osThreadBlocked         =  3,
  osThreadTerminated      =  4,
  osThreadError           = -1,
  osThreadReserved        = 0x7FFFFFFF
} osThreadState_t;

osTimerType_t

enum osTimerType_t

Timer type.

Enumerator
osTimerOnce	One-shot timer.
osTimerPeriodic	Repeating timer.

Definition at line 195 of file cmsis_os2.h.

             {
  osTimerOnce             = 0,
  osTimerPeriodic         = 1
} osTimerType_t;

Function Documentation

osDelay()

osStatus_t osDelay

(

uint32_t

ticks

)

Wait for Timeout (Time Delay).

Parameters

[in]

ticks

time ticks value

Returns

status code that indicates the execution status of the function.

Definition at line 1064 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;
    if (osKernelGetState() == osKernelInactive)
        return osError;

    stk::Timeout timeout = CmsisTimeoutToStk(ticks);

    stk::Sleep(timeout);
    return osOK;
}

References CmsisTimeoutToStk(), IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::Sleep().

Here is the call graph for this function:

osDelayUntil()

osStatus_t osDelayUntil

(

uint32_t

ticks

)

Wait until specified time.

Parameters

[in]

ticks

absolute time in ticks

Returns

status code that indicates the execution status of the function.

Definition at line 1077 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;
    if (osKernelGetState() == osKernelInactive)
        return osError;

    stk::SleepUntil(static_cast<stk::Ticks>(ticks));
    return osOK;
}

References IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::SleepUntil().

Here is the call graph for this function:

osEventFlagsClear()

uint32_t osEventFlagsClear	(	osEventFlagsId_t	ef_id,
		uint32_t	flags )

Clear the specified Event Flags.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags that shall be cleared.

Returns

event flags before clearing or error code if highest bit set.

Definition at line 1203 of file cmsis_os2_stk.cpp.

{
    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
        return osFlagsErrorParameter;

    uint32_t result = static_cast<StkEventFlags *>(ef_id)->m_ef.Clear(flags);
    return StkFlagsResultToCmsis(result);
}

References osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osEventFlagsDelete()

osStatus_t osEventFlagsDelete

(

osEventFlagsId_t

ef_id

)

Delete an Event Flags object.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1232 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (ef_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    ObjDestroy(static_cast<StkEventFlags *>(ef_id));
    return osOK;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osEventFlagsGet()

uint32_t osEventFlagsGet

(

osEventFlagsId_t

ef_id

)

Get the current Event Flags.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

current event flags.

Definition at line 1212 of file cmsis_os2_stk.cpp.

{
    if (ef_id == nullptr)
        return 0U;

    return static_cast<StkEventFlags *>(ef_id)->m_ef.Get();
}

osEventFlagsGetName()

const char * osEventFlagsGetName

(

osEventFlagsId_t

ef_id

)

Get name of an Event Flags object.

Parameters

[in]

ef_id

event flags ID obtained by osEventFlagsNew.

Returns

name as null-terminated string.

Definition at line 1186 of file cmsis_os2_stk.cpp.

{
    if (ef_id == nullptr)
        return nullptr;

    return static_cast<StkEventFlags *>(ef_id)->m_ef.GetTraceName();
}

osEventFlagsNew()

osEventFlagsId_t osEventFlagsNew

(

const osEventFlagsAttr_t *

attr

)

Create and Initialize an Event Flags object.

Parameters

[in]

attr

event flags attributes; NULL: default values.

Returns

event flags ID for reference by other functions or NULL in case of error.

Definition at line 1173 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return nullptr;

    const char *name   = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz  = (attr != nullptr ? attr->cb_size : 0U);

    StkEventFlags *ef = PlacementNewOrHeap<StkEventFlags>(cb_mem, cb_sz, name);
    return static_cast<osEventFlagsId_t>(ef);
}

References osEventFlagsAttr_t::cb_mem, osEventFlagsAttr_t::cb_size, IsIrqContext(), osEventFlagsAttr_t::name, and PlacementNewOrHeap().

Here is the call graph for this function:

osEventFlagsSet()

uint32_t osEventFlagsSet	(	osEventFlagsId_t	ef_id,
		uint32_t	flags )

Set the specified Event Flags.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags that shall be set.

Returns

event flags after setting or error code if highest bit set.

Definition at line 1194 of file cmsis_os2_stk.cpp.

{
    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
        return osFlagsErrorParameter;

    uint32_t result = static_cast<StkEventFlags *>(ef_id)->m_ef.Set(flags);
    return StkFlagsResultToCmsis(result);
}

References osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osEventFlagsWait()

uint32_t osEventFlagsWait	(	osEventFlagsId_t	ef_id,
		uint32_t	flags,
		uint32_t	options,
		uint32_t	timeout )

Wait for one or more Event Flags to become signaled.

Parameters

[in]	ef_id	event flags ID obtained by osEventFlagsNew.
[in]	flags	specifies the flags to wait for.
[in]	options	specifies flags options (osFlagsXxxx).
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

event flags before clearing or error code if highest bit set.

Definition at line 1220 of file cmsis_os2_stk.cpp.

{
    if ((ef_id == nullptr) || ((flags & osFlagsError) != 0U))
        return osFlagsErrorParameter;

    uint32_t result = static_cast<StkEventFlags *>(ef_id)->m_ef.Wait(flags,
        CmsisFlagsOptionsToStk(options), CmsisTimeoutToStk(timeout));

    return StkFlagsResultToCmsis(result);
}

References CmsisFlagsOptionsToStk(), CmsisTimeoutToStk(), osFlagsError, osFlagsErrorParameter, and StkFlagsResultToCmsis().

Here is the call graph for this function:

osFaultResume()

void osFaultResume

(

void

)

Resume normal operation when exiting exception faults.

osKernelDestroyClass()

osStatus_t osKernelDestroyClass	(	uint32_t	safety_class,
		uint32_t	mode )

Destroy objects for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osKernelGetInfo()

osStatus_t osKernelGetInfo	(	osVersion_t *	version,
		char *	id_buf,
		uint32_t	id_size )

Get RTOS Kernel Information.

Parameters

[out]	version	pointer to buffer for retrieving version information.
[out]	id_buf	pointer to buffer for retrieving kernel identification string.
[in]	id_size	size of buffer for kernel identification string.

Returns

status code that indicates the execution status of the function.

Definition at line 519 of file cmsis_os2_stk.cpp.

{
    if (version != nullptr)
    {
        version->api    = STK_WRAPPER_API_VERSION;
        version->kernel = STK_WRAPPER_KERNEL_VERSION;
    }

    if ((id_buf != nullptr) && (id_size > 0U))
    {
        const char *id = STK_WRAPPER_KERNEL_ID;
        size_t copy_len = id_size - 1U;
        size_t id_len   = __builtin_strlen(id);
        if (copy_len > id_len)
            copy_len = id_len;

        memcpy(id_buf, id, copy_len);
        id_buf[copy_len] = '\0';
    }

    return osOK;
}

References osVersion_t::api, osVersion_t::kernel, osOK, STK_WRAPPER_API_VERSION, STK_WRAPPER_KERNEL_ID, and STK_WRAPPER_KERNEL_VERSION.

osKernelGetState()

osKernelState_t osKernelGetState

(

void

)

Get the current RTOS Kernel state.

Returns

current RTOS Kernel state.

Definition at line 542 of file cmsis_os2_stk.cpp.

{
    if (g_StkKernelLocked != 0U)
        return osKernelLocked;

    switch (g_StkKernel.GetState())
    {
    case stk::IKernel::STATE_INACTIVE:  return osKernelInactive;
    case stk::IKernel::STATE_READY:     return osKernelReady;
    case stk::IKernel::STATE_RUNNING:   return osKernelRunning;
    case stk::IKernel::STATE_SUSPENDED: return osKernelSuspended;
    default:                            return osKernelError;
    }
}

References g_StkKernel, g_StkKernelLocked, osKernelError, osKernelInactive, osKernelLocked, osKernelReady, osKernelRunning, osKernelSuspended, stk::IKernel::STATE_INACTIVE, stk::IKernel::STATE_READY, stk::IKernel::STATE_RUNNING, and stk::IKernel::STATE_SUSPENDED.

Referenced by osDelay(), osDelayUntil(), osKernelGetTickCount(), osKernelGetTickFreq(), osKernelInitialize(), osKernelResume(), osKernelStart(), osKernelSuspend(), osThreadEnumerate(), osThreadGetCount(), osThreadGetId(), osThreadNew(), osThreadResume(), osThreadSuspend(), osThreadTerminate(), osThreadYield(), and osTimerNew().

Here is the caller graph for this function:

osKernelGetSysTimerCount()

uint32_t osKernelGetSysTimerCount

(

void

)

Get the RTOS kernel system timer count.

Returns

RTOS kernel current system timer count as 32-bit value.

Definition at line 659 of file cmsis_os2_stk.cpp.

{
    return static_cast<uint32_t>(stk::GetSysTimerCount());
}

References stk::GetSysTimerCount().

Here is the call graph for this function:

osKernelGetSysTimerCount64()

uint64_t osKernelGetSysTimerCount64

(

void

)

Get the RTOS kernel system timer count.

Returns

RTOS kernel current system timer count as 64-bit value.

Definition at line 664 of file cmsis_os2_stk.cpp.

{
    return stk::GetSysTimerCount();
}

References stk::GetSysTimerCount().

Here is the call graph for this function:

osKernelGetSysTimerFreq()

uint32_t osKernelGetSysTimerFreq

(

void

)

Get the RTOS kernel system timer frequency.

Returns

frequency of the system timer in hertz, i.e. timer ticks per second.

Definition at line 669 of file cmsis_os2_stk.cpp.

{
    return stk::GetSysTimerFrequency();
}

References stk::GetSysTimerFrequency().

Here is the call graph for this function:

osKernelGetTickCount()

uint32_t osKernelGetTickCount

(

void

)

Get the RTOS kernel tick count.

Returns

RTOS kernel current tick count.

Definition at line 639 of file cmsis_os2_stk.cpp.

{
    if (osKernelGetState() == osKernelInactive)
        return 0U;

    return static_cast<uint32_t>(stk::GetTicks());
}

References stk::GetTicks(), osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osKernelGetTickFreq()

uint32_t osKernelGetTickFreq

(

void

)

Get the RTOS kernel tick frequency.

Returns

frequency of the kernel tick in hertz, i.e. kernel ticks per second.

Definition at line 647 of file cmsis_os2_stk.cpp.

{
    if (osKernelGetState() == osKernelInactive)
        return 1000U; // default 1 kHz

    int32_t res_us = stk::GetTickResolution(); // us per tick
    if (res_us <= 0)
        return 1000U;

    return (1000000U / static_cast<uint32_t>(res_us));
}

References stk::GetTickResolution(), osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osKernelInitialize()

osStatus_t osKernelInitialize

(

void

)

Initialize the RTOS Kernel.

Returns

status code that indicates the execution status of the function.

Definition at line 507 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;

    if (osKernelGetState() != osKernelInactive)
        return osError;

    g_StkKernel.Initialize(); // default 1 ms tick resolution
    return osOK;
}

References g_StkKernel, IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osKernelLock()

int32_t osKernelLock

(

void

)

Lock the RTOS Kernel scheduler.

Returns

previous lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 571 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return static_cast<int32_t>(osErrorISR);

    stk::hw::CriticalSection::Enter();
    ++g_StkKernelLocked;
    return 0;
}

References stk::hw::CriticalSection::Enter(), g_StkKernelLocked, IsIrqContext(), and osErrorISR.

Here is the call graph for this function:

osKernelProtect()

osStatus_t osKernelProtect

(

uint32_t

safety_class

)

Protect the RTOS Kernel scheduler access.

Parameters

[in]

safety_class

safety class.

Returns

status code that indicates the execution status of the function.

osKernelRestoreLock()

int32_t osKernelRestoreLock

(

int32_t

lock

)

Restore the RTOS Kernel scheduler lock state.

Parameters

[in]

lock

lock state obtained by osKernelLock or osKernelUnlock.

Returns

new lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 593 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return static_cast<int32_t>(osErrorISR);

    if (lock == 1)
    {
        stk::hw::CriticalSection::Enter();
        ++g_StkKernelLocked;
    }
    else
    {
        if (g_StkKernelLocked == 0U)
            return osErrorResource;

        --g_StkKernelLocked;
        stk::hw::CriticalSection::Exit();
    }

    return lock;
}

References stk::hw::CriticalSection::Enter(), stk::hw::CriticalSection::Exit(), g_StkKernelLocked, IsIrqContext(), osErrorISR, and osErrorResource.

Here is the call graph for this function:

osKernelResume()

void osKernelResume

(

uint32_t

sleep_ticks

)

Resume the RTOS Kernel scheduler.

Parameters

[in]

sleep_ticks

time in ticks for how long the system was in sleep or power-down mode.

Definition at line 628 of file cmsis_os2_stk.cpp.

{
#if STK_TICKLESS_IDLE
    if (osKernelGetState() != osKernelInactive)
        return stk::IKernelService::GetInstance()->Resume(sleep_ticks);
#else
    // Not supported in non-tickless kernel.
    STK_UNUSED(sleep_ticks);
#endif
}

References stk::IKernelService::GetInstance(), osKernelGetState(), osKernelInactive, stk::IKernelService::Resume(), and STK_UNUSED.

Here is the call graph for this function:

osKernelStart()

osStatus_t osKernelStart

(

void

)

Start the RTOS Kernel scheduler.

Returns

status code that indicates the execution status of the function.

Definition at line 557 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;

    if (osKernelGetState() != osKernelReady)
        return osError;

    // Start() does not return for KERNEL_STATIC;
    // for KERNEL_DYNAMIC it returns when all tasks exit.
    g_StkKernel.Start();
    return osOK;
}

References g_StkKernel, IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelReady, and osOK.

Here is the call graph for this function:

osKernelSuspend()

uint32_t osKernelSuspend

(

void

)

Suspend the RTOS Kernel scheduler.

Returns

time in ticks, for how long the system can sleep or power-down.

Definition at line 615 of file cmsis_os2_stk.cpp.

{
#if STK_TICKLESS_IDLE
    if (osKernelGetState() == osKernelInactive)
        return 0U;

    return stk::IKernelService::GetInstance()->Suspend();
#else
    // Not supported in non-tickless kernel.
    return 0U;
#endif
}

References stk::IKernelService::GetInstance(), osKernelGetState(), osKernelInactive, and stk::IKernelService::Suspend().

Here is the call graph for this function:

osKernelUnlock()

int32_t osKernelUnlock

(

void

)

Unlock the RTOS Kernel scheduler.

Returns

previous lock state (1 - locked, 0 - not locked, error code if negative).

Definition at line 581 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return static_cast<int32_t>(osErrorISR);
    if (g_StkKernelLocked == 0U)
        return osErrorResource;

    --g_StkKernelLocked;
    stk::hw::CriticalSection::Exit();
    return 0;
}

References stk::hw::CriticalSection::Exit(), g_StkKernelLocked, IsIrqContext(), osErrorISR, and osErrorResource.

Here is the call graph for this function:

osMemoryPoolAlloc()

void * osMemoryPoolAlloc	(	osMemoryPoolId_t	mp_id,
		uint32_t	timeout )

Allocate a memory block from a Memory Pool.

Parameters

[in]	mp_id	memory pool ID obtained by osMemoryPoolNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

address of the allocated memory block or NULL in case of no memory is available.

Definition at line 1454 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return nullptr;

    // ISR context is only valid with timeout == 0 (NO_WAIT / TryAlloc).
    if (IsIrqContext() && (timeout != 0U))
        return nullptr;

    return static_cast<StkMemPool *>(mp_id)->m_mpool.TimedAlloc(CmsisTimeoutToStk(timeout));
}

References CmsisTimeoutToStk(), and IsIrqContext().

Here is the call graph for this function:

osMemoryPoolDelete()

osStatus_t osMemoryPoolDelete

(

osMemoryPoolId_t

mp_id

)

Delete a Memory Pool object.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1509 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (mp_id == nullptr))
        return (IsIrqContext() ? osErrorISR : osErrorParameter);

    ObjDestroy(static_cast<StkMemPool *>(mp_id));

    return osOK;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMemoryPoolFree()

osStatus_t osMemoryPoolFree	(	osMemoryPoolId_t	mp_id,
		void *	block )

Return an allocated memory block back to a Memory Pool.

Parameters

[in]	mp_id	memory pool ID obtained by osMemoryPoolNew.
[in]	block	address of the allocated memory block to be returned to the memory pool.

Returns

status code that indicates the execution status of the function.

Definition at line 1466 of file cmsis_os2_stk.cpp.

{
    if ((mp_id == nullptr) || (block == nullptr))
        return osErrorParameter;

    if (!static_cast<StkMemPool *>(mp_id)->m_mpool.Free(block))
        return osErrorParameter; // ptr not from this pool

    return osOK;
}

References osErrorParameter, and osOK.

osMemoryPoolGetBlockSize()

uint32_t osMemoryPoolGetBlockSize

(

osMemoryPoolId_t

mp_id

)

Get memory block size in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

memory block size in bytes.

Definition at line 1485 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkMemPool *>(mp_id)->m_mpool.GetBlockSize());
}

References StkMemPool::m_mpool.

osMemoryPoolGetCapacity()

uint32_t osMemoryPoolGetCapacity

(

osMemoryPoolId_t

mp_id

)

Get maximum number of memory blocks in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

maximum number of memory blocks.

Definition at line 1477 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return 0U;

    return static_cast<StkMemPool *>(mp_id)->m_mpool.GetCapacity();
}

osMemoryPoolGetCount()

uint32_t osMemoryPoolGetCount

(

osMemoryPoolId_t

mp_id

)

Get number of memory blocks used in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

number of memory blocks used.

Definition at line 1493 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return 0U;

    return static_cast<StkMemPool *>(mp_id)->m_mpool.GetUsedCount();
}

osMemoryPoolGetName()

const char * osMemoryPoolGetName

(

osMemoryPoolId_t

mp_id

)

Get name of a Memory Pool object.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

name as null-terminated string.

Definition at line 1446 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return nullptr;

    return static_cast<StkMemPool *>(mp_id)->m_mpool.GetTraceName();
}

osMemoryPoolGetSpace()

uint32_t osMemoryPoolGetSpace

(

osMemoryPoolId_t

mp_id

)

Get number of memory blocks available in a Memory Pool.

Parameters

[in]

mp_id

memory pool ID obtained by osMemoryPoolNew.

Returns

number of memory blocks available.

Definition at line 1501 of file cmsis_os2_stk.cpp.

{
    if (mp_id == nullptr)
        return 0U;

    return static_cast<StkMemPool *>(mp_id)->m_mpool.GetFreeCount();
}

osMemoryPoolNew()

osMemoryPoolId_t osMemoryPoolNew	(	uint32_t	block_count,
		uint32_t	block_size,
		const osMemoryPoolAttr_t *	attr )

Create and Initialize a Memory Pool object.

Parameters

[in]	block_count	maximum number of memory blocks in memory pool.
[in]	block_size	memory block size in bytes.
[in]	attr	memory pool attributes; NULL: default values.

Returns

memory pool ID for reference by other functions or NULL in case of error.

Definition at line 1400 of file cmsis_os2_stk.cpp.

{
    // ISR context: forbidden per CMSIS spec.
    if (IsIrqContext())
        return nullptr;

    // Zero capacity or zero block size are meaningless.
    if ((block_count == 0U) || (block_size == 0U))
        return nullptr;

    const char *name    = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem  = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz   = (attr != nullptr ? attr->cb_size : 0U);
    void       *mp_mem  = (attr != nullptr ? attr->mp_mem  : nullptr);
    uint32_t    mp_sz   = (attr != nullptr ? attr->mp_size : 0U);

    // Compute the aligned block size and required storage byte count.
    const uint32_t aligned_blk       = stk::memory::BlockMemoryPool::AlignBlockSize(block_size);
    const uint32_t storage_required  = (block_count * aligned_blk);

    StkMemPool *pool = nullptr;

    if ((mp_mem != nullptr) && (mp_sz >= storage_required))
    {
        // Caller-supplied pool storage - BlockMemoryPool external-storage ctor.
        pool = PlacementNewOrHeap<StkMemPool>(cb_mem, cb_sz,
            block_count, block_size, name, static_cast<uint8_t *>(mp_mem));
    }
    else
    {
        // Heap-allocated pool storage - BlockMemoryPool heap ctor.
        pool = PlacementNewOrHeap<StkMemPool>(cb_mem, cb_sz,
            block_count, block_size, name);

        // If the heap ctor failed to allocate storage, clean up and bail.
        if ((pool != nullptr) && !pool->m_mpool.IsStorageValid())
        {
            ObjDestroy(pool);
            return nullptr;
        }
    }

    return static_cast<osMemoryPoolId_t>(pool);
}

References osMemoryPoolAttr_t::cb_mem, osMemoryPoolAttr_t::cb_size, IsIrqContext(), StkMemPool::m_mpool, osMemoryPoolAttr_t::mp_mem, osMemoryPoolAttr_t::mp_size, osMemoryPoolAttr_t::name, ObjDestroy(), and PlacementNewOrHeap().

Here is the call graph for this function:

osMessageQueueDelete()

osStatus_t osMessageQueueDelete

(

osMessageQueueId_t

mq_id

)

Delete a Message Queue object.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1650 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (mq_id == nullptr))
        return (IsIrqContext() ? osErrorISR : osErrorParameter);

    ObjDestroy(static_cast<StkMessageQueue *>(mq_id));

    return osOK;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMessageQueueGet()

osStatus_t osMessageQueueGet	(	osMessageQueueId_t	mq_id,
		void *	msg_ptr,
		uint8_t *	msg_prio,
		uint32_t	timeout )

Get a Message from a Queue or timeout if Queue is empty.

Parameters

[in]	mq_id	message queue ID obtained by osMessageQueueNew.
[out]	msg_ptr	pointer to buffer for message to get from a queue.
[out]	msg_prio	pointer to buffer for message priority or NULL.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1589 of file cmsis_os2_stk.cpp.

{
    if (!mq_id || !msg_ptr)
        return osErrorParameter;
    if (IsIrqContext() && (timeout != 0U))
        return osErrorISR;

    stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

    if (!static_cast<StkMessageQueue *>(mq_id)->m_mq.Get(msg_ptr, stk_timeout))
        return ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);

    if (msg_prio)
        *msg_prio = 0U; // STK queues have no priority lanes.

    return osOK;
}

References CmsisTimeoutToStk(), IsIrqContext(), stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, and osOK.

Here is the call graph for this function:

osMessageQueueGetCapacity()

uint32_t osMessageQueueGetCapacity

(

osMessageQueueId_t

mq_id

)

Get maximum number of messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

maximum number of messages.

Definition at line 1608 of file cmsis_os2_stk.cpp.

{
    if (mq_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetCapacity());
}

References stk::sync::MessageQueue::GetCapacity(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetCount()

uint32_t osMessageQueueGetCount

(

osMessageQueueId_t

mq_id

)

Get number of queued messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

number of queued messages.

Definition at line 1624 of file cmsis_os2_stk.cpp.

{
    if (mq_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetCount());
}

References stk::sync::MessageQueue::GetCount(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetMsgSize()

uint32_t osMessageQueueGetMsgSize

(

osMessageQueueId_t

mq_id

)

Get maximum message size in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

maximum message size in bytes.

Definition at line 1616 of file cmsis_os2_stk.cpp.

{
    if (mq_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetMsgSize());
}

References stk::sync::MessageQueue::GetMsgSize(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueGetName()

const char * osMessageQueueGetName

(

osMessageQueueId_t

mq_id

)

Get name of a Message Queue object.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

name as null-terminated string.

Definition at line 1565 of file cmsis_os2_stk.cpp.

{
    if (mq_id == nullptr)
        return nullptr;

    return static_cast<StkMessageQueue *>(mq_id)->m_mq.GetTraceName();
}

osMessageQueueGetSpace()

uint32_t osMessageQueueGetSpace

(

osMessageQueueId_t

mq_id

)

Get number of available slots for messages in a Message Queue.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

number of available slots for messages.

Definition at line 1632 of file cmsis_os2_stk.cpp.

{
    if (mq_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkMessageQueue *>(mq_id)->m_mq.GetSpace());
}

References stk::sync::MessageQueue::GetSpace(), and StkMessageQueue::m_mq.

Here is the call graph for this function:

osMessageQueueNew()

osMessageQueueId_t osMessageQueueNew	(	uint32_t	msg_count,
		uint32_t	msg_size,
		const osMessageQueueAttr_t *	attr )

Create and Initialize a Message Queue object.

Parameters

[in]	msg_count	maximum number of messages in queue.
[in]	msg_size	maximum message size in bytes.
[in]	attr	message queue attributes; NULL: default values.

Returns

message queue ID for reference by other functions or NULL in case of error.

Definition at line 1524 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (msg_count == 0U) || (msg_size == 0U))
        return nullptr;

    if (msg_count > stk::sync::MessageQueue::CAPACITY_MAX)
        return nullptr;

    const char *name         = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem       = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz        = (attr != nullptr ? attr->cb_size : 0U);
    void       *ext_buf      = (attr != nullptr ? attr->mq_mem  : nullptr);
    uint32_t    ext_buf_size = (attr != nullptr ? attr->mq_size : 0U);

    const uint32_t buf_required = msg_count * msg_size;

    StkMessageQueue *mq = nullptr;

    if ((ext_buf != nullptr) && (ext_buf_size >= buf_required))
    {
        // Data buffer: use caller-supplied memory.
        mq = PlacementNewOrHeap<StkMessageQueue>(cb_mem, cb_sz,
            msg_count, msg_size, name, static_cast<uint8_t *>(ext_buf));
    }
    else
    {
        // Data buffer: heap-allocated inside StkMessageQueue constructor.
        mq = PlacementNewOrHeap<StkMessageQueue>(cb_mem, cb_sz,
            msg_count, msg_size, name);

        if ((mq != nullptr) && (mq->m_mq.GetBuffer() == nullptr))
        {
            ObjDestroy(mq);
            return nullptr;
        }
    }

    return static_cast<osMessageQueueId_t>(mq);
}

References stk::sync::MessageQueue::CAPACITY_MAX, osMessageQueueAttr_t::cb_mem, osMessageQueueAttr_t::cb_size, stk::sync::MessageQueue::GetBuffer(), IsIrqContext(), StkMessageQueue::m_mq, osMessageQueueAttr_t::mq_mem, osMessageQueueAttr_t::mq_size, osMessageQueueAttr_t::name, ObjDestroy(), and PlacementNewOrHeap().

Here is the call graph for this function:

osMessageQueuePut()

osStatus_t osMessageQueuePut	(	osMessageQueueId_t	mq_id,
		const void *	msg_ptr,
		uint8_t	msg_prio,
		uint32_t	timeout )

Put a Message into a Queue or timeout if Queue is full.

Parameters

[in]	mq_id	message queue ID obtained by osMessageQueueNew.
[in]	msg_ptr	pointer to buffer with message to put into a queue.
[in]	msg_prio	message priority.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1573 of file cmsis_os2_stk.cpp.

{
    if (!mq_id || !msg_ptr)
        return osErrorParameter;
    if (IsIrqContext() && (timeout != 0U))
        return osErrorISR;

    stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

    if (!static_cast<StkMessageQueue *>(mq_id)->m_mq.Put(msg_ptr, stk_timeout))
        return ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);

    return osOK;
}

References CmsisTimeoutToStk(), IsIrqContext(), stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, and osOK.

Here is the call graph for this function:

osMessageQueueReset()

osStatus_t osMessageQueueReset

(

osMessageQueueId_t

mq_id

)

Reset a Message Queue to initial empty state.

Parameters

[in]

mq_id

message queue ID obtained by osMessageQueueNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1640 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (mq_id == nullptr))
        return (IsIrqContext() ? osErrorISR : osErrorParameter);

    static_cast<StkMessageQueue *>(mq_id)->m_mq.Reset();

    return osOK;
}

References IsIrqContext(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMutexAcquire()

osStatus_t osMutexAcquire	(	osMutexId_t	mutex_id,
		uint32_t	timeout )

Acquire a Mutex or timeout if it is locked.

Parameters

[in]	mutex_id	mutex ID obtained by osMutexNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1269 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;
    if (mutex_id == nullptr)
        return osErrorParameter;

    StkMutex *m = static_cast<StkMutex *>(mutex_id);
    stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

    bool acquired = m->m_mutex.TimedLock(stk_timeout);
    if (!acquired)
        return ((stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout);

    return osOK;
}

References CmsisTimeoutToStk(), IsIrqContext(), StkMutex::m_mutex, stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, osOK, and stk::sync::Mutex::TimedLock().

Here is the call graph for this function:

osMutexDelete()

osStatus_t osMutexDelete

(

osMutexId_t

mutex_id

)

Delete a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1309 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (mutex_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    ObjDestroy(static_cast<StkMutex *>(mutex_id));
    return osOK;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osMutexGetName()

const char * osMutexGetName

(

osMutexId_t

mutex_id

)

Get name of a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

name as null-terminated string.

Definition at line 1261 of file cmsis_os2_stk.cpp.

{
    if (mutex_id == nullptr)
        return nullptr;

    return static_cast<StkMutex *>(mutex_id)->m_mutex.GetTraceName();
}

osMutexGetOwner()

osThreadId_t osMutexGetOwner

(

osMutexId_t

mutex_id

)

Get Thread which owns a Mutex object.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

thread ID of owner thread or NULL when mutex was not acquired.

Definition at line 1297 of file cmsis_os2_stk.cpp.

{
    if (mutex_id == nullptr)
        return nullptr;

    stk::TId tid = static_cast<StkMutex *>(mutex_id)->m_mutex.GetOwner();

    // tid is hw::PtrToWord(this) where 'this' is the StkThread* - cast it back.
    return reinterpret_cast<osThreadId_t>(static_cast<void *>(
        reinterpret_cast<StkThread *>(static_cast<uintptr_t>(tid))));
}

osMutexNew()

osMutexId_t osMutexNew

(

const osMutexAttr_t *

attr

)

Create and Initialize a Mutex object.

Parameters

[in]

attr

mutex attributes; NULL: default values.

Returns

mutex ID for reference by other functions or NULL in case of error.

Definition at line 1246 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return nullptr;

    // osMutexPrioInherit / osMutexRobust: accepted but silently ignored.
    // osMutexRecursive: STK Mutex is always recursive.
    const char *name   = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz  = (attr != nullptr ? attr->cb_size : 0U);

    StkMutex *m = PlacementNewOrHeap<StkMutex>(cb_mem, cb_sz, name);
    return static_cast<osMutexId_t>(m);
}

References osMutexAttr_t::cb_mem, osMutexAttr_t::cb_size, IsIrqContext(), osMutexAttr_t::name, and PlacementNewOrHeap().

Here is the call graph for this function:

osMutexRelease()

osStatus_t osMutexRelease

(

osMutexId_t

mutex_id

)

Release a Mutex that was acquired by osMutexAcquire.

Parameters

[in]

mutex_id

mutex ID obtained by osMutexNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1286 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;
    if (mutex_id == nullptr)
        return osErrorParameter;

    static_cast<StkMutex *>(mutex_id)->m_mutex.Unlock();
    return osOK;
}

References IsIrqContext(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osSemaphoreAcquire()

osStatus_t osSemaphoreAcquire	(	osSemaphoreId_t	semaphore_id,
		uint32_t	timeout )

Acquire a Semaphore token or timeout if no tokens are available.

Parameters

[in]	semaphore_id	semaphore ID obtained by osSemaphoreNew.
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

status code that indicates the execution status of the function.

Definition at line 1352 of file cmsis_os2_stk.cpp.

{
    if (semaphore_id == nullptr)
        return osErrorParameter;
    if (IsIrqContext() && (timeout != 0U))
        return osErrorISR;

    StkSemaphore *s = static_cast<StkSemaphore *>(semaphore_id);
    stk::Timeout stk_timeout = CmsisTimeoutToStk(timeout);

    bool acquired = s->m_semaphore.Wait(stk_timeout);
    if (!acquired)
        return (stk_timeout == stk::NO_WAIT) ? osErrorResource : osErrorTimeout;

    return osOK;
}

References CmsisTimeoutToStk(), IsIrqContext(), StkSemaphore::m_semaphore, stk::NO_WAIT, osErrorISR, osErrorParameter, osErrorResource, osErrorTimeout, osOK, and stk::sync::Semaphore::Wait().

Here is the call graph for this function:

osSemaphoreDelete()

osStatus_t osSemaphoreDelete

(

osSemaphoreId_t

semaphore_id

)

Delete a Semaphore object.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1386 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (semaphore_id == nullptr))
        return (IsIrqContext() ? osErrorISR : osErrorParameter);

    ObjDestroy(static_cast<StkSemaphore *>(semaphore_id));
    return osOK;
}

References IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osSemaphoreGetCount()

uint32_t osSemaphoreGetCount

(

osSemaphoreId_t

semaphore_id

)

Get current Semaphore token count.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

number of tokens available.

Definition at line 1378 of file cmsis_os2_stk.cpp.

{
    if (semaphore_id == nullptr)
        return 0U;

    return static_cast<uint32_t>(static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.GetCount());
}

References stk::sync::Semaphore::GetCount(), and StkSemaphore::m_semaphore.

Here is the call graph for this function:

osSemaphoreGetName()

const char * osSemaphoreGetName

(

osSemaphoreId_t

semaphore_id

)

Get name of a Semaphore object.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

name as null-terminated string.

Definition at line 1344 of file cmsis_os2_stk.cpp.

{
    if (semaphore_id == nullptr)
        return nullptr;

    return static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.GetTraceName();
}

osSemaphoreNew()

osSemaphoreId_t osSemaphoreNew	(	uint32_t	max_count,
		uint32_t	initial_count,
		const osSemaphoreAttr_t *	attr )

Create and Initialize a Semaphore object.

Parameters

[in]	max_count	maximum number of available tokens.
[in]	initial_count	initial number of available tokens.
[in]	attr	semaphore attributes; NULL: default values.

Returns

semaphore ID for reference by other functions or NULL in case of error.

Definition at line 1323 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return nullptr;

    if ((max_count == 0U) || (initial_count > max_count))
        return nullptr;

    // STK Semaphore uses uint16_t counters, clamp to stk::sync::Semaphore::COUNT_MAX.
    uint16_t mc = stk::Min(max_count, static_cast<uint32_t>(stk::sync::Semaphore::COUNT_MAX));
    uint16_t ic = stk::Min(initial_count, static_cast<uint32_t>(stk::sync::Semaphore::COUNT_MAX));

    const char *name   = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz  = (attr != nullptr ? attr->cb_size : 0U);

    StkSemaphore *s = PlacementNewOrHeap<StkSemaphore>(cb_mem, cb_sz, ic, mc, name);
    return static_cast<osSemaphoreId_t>(s);
}

References osSemaphoreAttr_t::cb_mem, osSemaphoreAttr_t::cb_size, stk::sync::Semaphore::COUNT_MAX, IsIrqContext(), stk::Min(), osSemaphoreAttr_t::name, and PlacementNewOrHeap().

Here is the call graph for this function:

osSemaphoreRelease()

osStatus_t osSemaphoreRelease

(

osSemaphoreId_t

semaphore_id

)

Release a Semaphore token up to the initial maximum count.

Parameters

[in]

semaphore_id

semaphore ID obtained by osSemaphoreNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1369 of file cmsis_os2_stk.cpp.

{
    if (semaphore_id == nullptr)
        return osErrorParameter;

    static_cast<StkSemaphore *>(semaphore_id)->m_semaphore.Signal();
    return osOK;
}

References osErrorParameter, and osOK.

osThreadDetach()

osStatus_t osThreadDetach

(

osThreadId_t

thread_id

)

Detach a thread (thread storage can be reclaimed when thread terminates).

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 872 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    stk::sync::ScopedCriticalSection cs_;

    switch (t->m_join_state)
    {
    case StkThread::JoinState::Detached:
        // already detached - CMSIS spec says this is an error
        return osError;

    case StkThread::JoinState::Joined:
        // already joined - cannot detach
        return osError;

    case StkThread::JoinState::Exited:
        // thread finished but nobody joined yet, transition to Detached
        // and free the control block now, since no joiner will ever do it
        t->m_join_state = StkThread::JoinState::Detached;
        ObjDestroy(t); // safe: task slot already freed by the kernel
        return osOK;

    case StkThread::JoinState::Joinable:
        // normal case: thread is still running or just hasn't been joined
        t->m_join_state = StkThread::JoinState::Detached;
        return osOK;
    }

    return osError;
}

References StkThread::Detached, StkThread::Exited, IsIrqContext(), StkThread::Joinable, StkThread::Joined, StkThread::m_join_state, ObjDestroy(), osError, osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osThreadEnumerate()

uint32_t osThreadEnumerate	(	osThreadId_t *	thread_array,
		uint32_t	array_items )

Enumerate active threads.

Parameters

[out]	thread_array	pointer to array for retrieving thread IDs.
[in]	array_items	maximum number of items in array for retrieving thread IDs.

Returns

number of enumerated threads.

Definition at line 996 of file cmsis_os2_stk.cpp.

{
    if (osKernelGetState() == osKernelInactive)
        return 0U;

    // osThreadId_t maps directly to stk::ITask (see StkThread)
    return g_StkKernel.EnumerateTasks(reinterpret_cast<stk::ITask **>(thread_array), array_items);
}

References g_StkKernel, osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osThreadExit()

void osThreadExit

(

void

)

Terminate execution of current running thread.

Definition at line 949 of file cmsis_os2_stk.cpp.

{
    StkThread *t = static_cast<StkThread *>(osThreadGetId());

    g_StkKernel.ScheduleTaskRemoval(t);

    // Wait for removal.
    for (;;)
        stk::Yield();
}

References __NO_RETURN, g_StkKernel, osThreadGetId(), and stk::Yield().

Here is the call graph for this function:

osThreadFeedWatchdog()

osStatus_t osThreadFeedWatchdog

(

uint32_t

ticks

)

Feed watchdog of the current running thread.

Parameters

[in]

ticks

interval in kernel ticks until the thread watchdog expires, or 0 to stop the watchdog

Returns

status code that indicates the execution status of the function.

osThreadFlagsClear()

uint32_t osThreadFlagsClear

(

uint32_t

flags

)

Clear the specified Thread Flags of current running thread.

Parameters

[in]

flags

specifies the flags of the thread that shall be cleared.

Returns

thread flags before clearing or error code if highest bit set.

Definition at line 1021 of file cmsis_os2_stk.cpp.

{
    osThreadId_t self = osThreadGetId();
    if (self == nullptr)
        return osFlagsErrorUnknown;

    StkThread *t = static_cast<StkThread *>(self);

    uint32_t result = t->m_thread_flags.Clear(flags);
    return StkFlagsResultToCmsis(result);
}

References stk::sync::EventFlags::Clear(), StkThread::m_thread_flags, osFlagsErrorUnknown, osThreadGetId(), and StkFlagsResultToCmsis().

Here is the call graph for this function:

osThreadFlagsGet()

uint32_t osThreadFlagsGet

(

void

)

Get the current Thread Flags of current running thread.

Returns

current thread flags.

Definition at line 1033 of file cmsis_os2_stk.cpp.

{
    osThreadId_t self = osThreadGetId();
    if (self == nullptr)
        return 0U;

    return static_cast<StkThread *>(self)->m_thread_flags.Get();
}

References osThreadGetId().

Here is the call graph for this function:

osThreadFlagsSet()

uint32_t osThreadFlagsSet	(	osThreadId_t	thread_id,
		uint32_t	flags )

Set the specified Thread Flags of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	flags	specifies the flags of the thread that shall be set.

Returns

thread flags after setting or error code if highest bit set.

Definition at line 1010 of file cmsis_os2_stk.cpp.

{
    if ((thread_id == nullptr) || ((flags & osFlagsError) != 0))
        return osFlagsErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    uint32_t result = t->m_thread_flags.Set(flags);
    return StkFlagsResultToCmsis(result);
}

References StkThread::m_thread_flags, osFlagsError, osFlagsErrorParameter, stk::sync::EventFlags::Set(), and StkFlagsResultToCmsis().

Here is the call graph for this function:

osThreadFlagsWait()

uint32_t osThreadFlagsWait	(	uint32_t	flags,
		uint32_t	options,
		uint32_t	timeout )

Wait for one or more Thread Flags of the current running thread to become signaled.

Parameters

[in]	flags	specifies the flags to wait for.
[in]	options	specifies flags options (osFlagsXxxx).
[in]	timeout	CMSIS_RTOS_TimeOutValue or 0 in case of no time-out.

Returns

thread flags before clearing or error code if highest bit set.

Definition at line 1042 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osFlagsErrorISR;

    osThreadId_t self = osThreadGetId();
    if (self == nullptr)
        return osFlagsErrorUnknown;

    StkThread *t = static_cast<StkThread *>(self);

    uint32_t result = t->m_thread_flags.Wait(flags, CmsisFlagsOptionsToStk(options),
        CmsisTimeoutToStk(timeout));

    return StkFlagsResultToCmsis(result);
}

References CmsisFlagsOptionsToStk(), CmsisTimeoutToStk(), IsIrqContext(), StkThread::m_thread_flags, osFlagsErrorISR, osFlagsErrorUnknown, osThreadGetId(), StkFlagsResultToCmsis(), and stk::sync::EventFlags::Wait().

Here is the call graph for this function:

osThreadGetAffinityMask()

uint32_t osThreadGetAffinityMask

(

osThreadId_t

thread_id

)

Get current processor affinity mask of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current processor affinity mask of the specified thread.

osThreadGetClass()

uint32_t osThreadGetClass

(

osThreadId_t

thread_id

)

Get safety class of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

safety class of the specified thread.

osThreadGetCount()

uint32_t osThreadGetCount

(

void

)

Get number of active threads.

Returns

number of active threads.

Definition at line 985 of file cmsis_os2_stk.cpp.

{
    if (osKernelGetState() == osKernelInactive)
        return 0U;

    // avoid race with OnTick
    stk::sync::ScopedCriticalSection cs_;

    return static_cast<uint32_t>(g_StkKernel.GetSwitchStrategy()->GetSize());
}

References g_StkKernel, osKernelGetState(), and osKernelInactive.

Here is the call graph for this function:

osThreadGetId()

osThreadId_t osThreadGetId

(

void

)

Return the thread ID of the current running thread.

Returns

thread ID for reference by other functions or NULL in case of error.

Definition at line 761 of file cmsis_os2_stk.cpp.

{
    if ((osKernelGetState() == osKernelInactive) || IsIrqContext())
        return nullptr;

    // STK's GetTid() returns the ITask pointer cast to Word.
    stk::TId tid = stk::GetTid();

    // tid is hw::PtrToWord(this) where 'this' is the StkThread* - cast it back.
    return reinterpret_cast<osThreadId_t>(static_cast<void *>(
        reinterpret_cast<StkThread *>(static_cast<uintptr_t>(tid))));
}

References stk::GetTid(), IsIrqContext(), osKernelGetState(), and osKernelInactive.

Referenced by osThreadExit(), osThreadFlagsClear(), osThreadFlagsGet(), osThreadFlagsWait(), osThreadGetState(), and osThreadJoin().

Here is the call graph for this function:

Here is the caller graph for this function:

osThreadGetName()

const char * osThreadGetName

(

osThreadId_t

thread_id

)

Get name of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

name as null-terminated string.

Definition at line 753 of file cmsis_os2_stk.cpp.

{
    if (thread_id == nullptr)
        return nullptr;

    return static_cast<StkThread *>(thread_id)->m_name;
}

osThreadGetPriority()

osPriority_t osThreadGetPriority

(

osThreadId_t

thread_id

)

Get current priority of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current priority value of the specified thread.

Definition at line 822 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr))
        return osPriorityError;

    StkThread *t = static_cast<StkThread *>(thread_id);
    return StkPrioToCmsis(t->m_stk_priority);
}

References IsIrqContext(), StkThread::m_stk_priority, osPriorityError, and StkPrioToCmsis().

Here is the call graph for this function:

osThreadGetStackSize()

uint32_t osThreadGetStackSize

(

osThreadId_t

thread_id

)

Get stack size of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

stack size in bytes.

Definition at line 790 of file cmsis_os2_stk.cpp.

{
    if (thread_id == nullptr)
        return 0U;

    StkThread *t = static_cast<StkThread *>(thread_id);
    return static_cast<uint32_t>(t->GetStackSizeBytes());
}

References StkThread::GetStackSizeBytes().

Here is the call graph for this function:

osThreadGetStackSpace()

uint32_t osThreadGetStackSpace

(

osThreadId_t

thread_id

)

Get available stack space of a thread based on stack watermark recording during execution.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

remaining stack space in bytes.

Definition at line 799 of file cmsis_os2_stk.cpp.

{
    if (thread_id == nullptr)
        return 0U;

    StkThread *t = static_cast<StkThread *>(thread_id);
    return static_cast<uint32_t>(t->GetStackSpace() * sizeof(stk::Word));
}

References stk::IStackMemory::GetStackSpace().

Here is the call graph for this function:

osThreadGetState()

osThreadState_t osThreadGetState

(

osThreadId_t

thread_id

)

Get current thread state of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

current thread state of the specified thread.

Definition at line 774 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr))
        return osThreadError;

    StkThread *t = static_cast<StkThread *>(thread_id);

    if (t->m_suspended)
        return osThreadBlocked;

    if (thread_id == osThreadGetId())
        return osThreadRunning;

    return osThreadReady;
}

References IsIrqContext(), StkThread::m_suspended, osThreadBlocked, osThreadError, osThreadGetId(), osThreadReady, and osThreadRunning.

Here is the call graph for this function:

osThreadGetZone()

uint32_t osThreadGetZone

(

osThreadId_t

thread_id

)

Get MPU protected zone of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

MPU protected zone of the specified thread.

References __NO_RETURN.

osThreadJoin()

osStatus_t osThreadJoin

(

osThreadId_t

thread_id

)

Wait for specified thread to terminate.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 907 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    // Self-join is undefined behavior per POSIX / CMSIS spec.
    if (thread_id == osThreadGetId())
        return osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    stk::sync::ScopedCriticalSection cs_;

    // Only joinable threads can be joined.
    if (t->m_join_state == StkThread::JoinState::Detached)
        return osError;

    // Double-join: second caller always gets an error.
    if (t->m_join_state == StkThread::JoinState::Joined)
        return osError;

    t->m_join_state = StkThread::JoinState::Joined;

    // Block until OnExit() fires (transitions state to Exited).
    // m_join_cv.Wait() atomically releases m_join_mutex and suspends.
    while (t->m_join_state == StkThread::JoinState::Joined)
    {
        // WAIT_INFINITE - CMSIS osThreadJoin has no timeout parameter.
        t->m_join_cv.Wait(cs_, stk::WAIT_INFINITE);
    }

    // At this point m_join_state == Exited (or Detached if someone
    // raced osThreadDetach - treat that as an error).
    if (t->m_join_state != StkThread::JoinState::Exited)
        return osError;

    // Free the control block - the kernel has already freed the slot.
    ObjDestroy(t);

    return osOK;
}

References StkThread::Detached, StkThread::Exited, IsIrqContext(), StkThread::Joined, StkThread::m_join_cv, StkThread::m_join_state, ObjDestroy(), osError, osErrorISR, osErrorParameter, osOK, osThreadGetId(), stk::sync::ConditionVariable::Wait(), and stk::WAIT_INFINITE.

Here is the call graph for this function:

osThreadNew()

osThreadId_t osThreadNew	(	osThreadFunc_t	func,
		void *	argument,
		const osThreadAttr_t *	attr )

Create a thread and add it to Active Threads.

Parameters

[in]	func	thread function.
[in]	argument	pointer that is passed to the thread function as start argument.
[in]	attr	thread attributes; NULL: default values.

Returns

thread ID for reference by other functions or NULL in case of error.

Definition at line 679 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (func == nullptr) || (osKernelGetState() == osKernelInactive))
        return nullptr;

    bool     joinable = (attr != nullptr) && (attr->attr_bits & osThreadJoinable);
    void    *cb_mem   = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t cb_size  = (attr != nullptr ? attr->cb_size : 0U);

    StkThread *t = PlacementNewOrHeap<StkThread>(cb_mem, cb_size);
    if (t == nullptr)
        return nullptr;

    t->m_func       = func;
    t->m_argument   = argument;
    t->m_name       = nullptr;
    t->m_join_state = (joinable ? StkThread::JoinState::Joinable : StkThread::JoinState::Detached);

    osPriority_t cmsis_prio = osPriorityNormal;
    size_t stack_words      = CMSIS_STK_DEFAULT_STACK_WORDS;

    if (attr != nullptr)
    {
        t->m_name = attr->name;

        if (attr->priority != osPriorityNone)
            cmsis_prio = attr->priority;

        if ((cmsis_prio < osPriorityIdle) || (cmsis_prio > osPriorityISR))
        {
            ObjDestroy(t);
            return nullptr;
        }

        // Stack: prefer caller-provided memory.
        if ((attr->stack_mem != nullptr) && (attr->stack_size > 0U))
        {
            size_t words = attr->stack_size / sizeof(stk::Word);
            if (words < CMSIS_STK_MIN_STACK_WORDS)
                words = CMSIS_STK_MIN_STACK_WORDS;

            t->m_stack       = static_cast<stk::Word *>(attr->stack_mem);
            t->m_stack_size  = words;
            t->m_stack_owned = false;
        }
        else
        if (attr->stack_size > 0U)
        {
            stack_words = attr->stack_size / sizeof(stk::Word);
            if (stack_words < CMSIS_STK_MIN_STACK_WORDS)
                stack_words = CMSIS_STK_MIN_STACK_WORDS;
        }
    }

    // Allocate stack if not caller-provided.
    if (t->m_stack == nullptr)
    {
        t->m_stack = new (std::nothrow) stk::Word[stack_words];
        if (t->m_stack == nullptr)
        {
            ObjDestroy(t);
            return nullptr;
        }
        t->m_stack_size  = stack_words;
        t->m_stack_owned = true;
    }

    t->m_stk_priority = CmsisPrioToStk(cmsis_prio);

    g_StkKernel.AddTask(t);

    return static_cast<osThreadId_t>(t);
}

References osThreadAttr_t::attr_bits, osThreadAttr_t::cb_mem, osThreadAttr_t::cb_size, CMSIS_STK_DEFAULT_STACK_WORDS, CMSIS_STK_MIN_STACK_WORDS, CmsisPrioToStk(), StkThread::Detached, g_StkKernel, IsIrqContext(), StkThread::Joinable, StkThread::m_argument, StkThread::m_func, StkThread::m_join_state, StkThread::m_name, StkThread::m_stack, StkThread::m_stack_owned, StkThread::m_stack_size, StkThread::m_stk_priority, osThreadAttr_t::name, ObjDestroy(), osKernelGetState(), osKernelInactive, osPriorityIdle, osPriorityISR, osPriorityNone, osPriorityNormal, osThreadJoinable, PlacementNewOrHeap(), osThreadAttr_t::priority, osThreadAttr_t::stack_mem, and osThreadAttr_t::stack_size.

Here is the call graph for this function:

osThreadProtectPrivileged()

osStatus_t osThreadProtectPrivileged

(

void

)

Protect creation of privileged threads.

Returns

status code that indicates the execution status of the function.

osThreadResume()

osStatus_t osThreadResume

(

osThreadId_t

thread_id

)

Resume execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 854 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr) || (osKernelGetState() == osKernelInactive))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    stk::sync::ScopedCriticalSection cs_;

    if (!t->m_suspended)
        return osOK; // not suspended, nothing to do

    g_StkKernel.ResumeTask(t);
    t->m_suspended = false;

    return osOK;
}

References g_StkKernel, IsIrqContext(), StkThread::m_suspended, osErrorISR, osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadResumeClass()

osStatus_t osThreadResumeClass	(	uint32_t	safety_class,
		uint32_t	mode )

Resume execution of threads for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osThreadSetAffinityMask()

osStatus_t osThreadSetAffinityMask	(	osThreadId_t	thread_id,
		uint32_t	affinity_mask )

Set processor affinity mask of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	affinity_mask	processor affinity mask for the thread.

Returns

status code that indicates the execution status of the function.

osThreadSetPriority()

osStatus_t osThreadSetPriority	(	osThreadId_t	thread_id,
		osPriority_t	priority )

Change priority of a thread.

Parameters

[in]	thread_id	thread ID obtained by osThreadNew or osThreadGetId.
[in]	priority	new priority value for the thread function.

Returns

status code that indicates the execution status of the function.

Definition at line 808 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    if ((priority < osPriorityIdle) || (priority > osPriorityISR))
        return osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);
    t->m_stk_priority = CmsisPrioToStk(priority);

    return osOK;
}

References CmsisPrioToStk(), IsIrqContext(), StkThread::m_stk_priority, osErrorISR, osErrorParameter, osOK, osPriorityIdle, and osPriorityISR.

Here is the call graph for this function:

osThreadSuspend()

osStatus_t osThreadSuspend

(

osThreadId_t

thread_id

)

Suspend execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 842 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (thread_id == nullptr) || (osKernelGetState() == osKernelInactive))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    g_StkKernel.SuspendTask(t, t->m_suspended);

    return osOK;
}

References g_StkKernel, IsIrqContext(), StkThread::m_suspended, osErrorISR, osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadSuspendClass()

osStatus_t osThreadSuspendClass	(	uint32_t	safety_class,
		uint32_t	mode )

Suspend execution of threads for specified safety classes.

Parameters

[in]	safety_class	safety class.
[in]	mode	safety mode.

Returns

status code that indicates the execution status of the function.

osThreadTerminate()

osStatus_t osThreadTerminate

(

osThreadId_t

thread_id

)

Terminate execution of a thread.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

status code that indicates the execution status of the function.

Definition at line 960 of file cmsis_os2_stk.cpp.

{
    if ((thread_id == nullptr) || (osKernelGetState() == osKernelInactive))
        return osErrorParameter;

    StkThread *t = static_cast<StkThread *>(thread_id);

    stk::sync::ScopedCriticalSection cs_;

    // RemoveTask triggers the STATE_REMOVE_PENDING path in the kernel,
    // which will call OnExit() before freeing the slot.
    g_StkKernel.ScheduleTaskRemoval(t);

    // For detached threads, free immediately (no joiner expected).
    // For joinable threads, OnExit() will wake the joiner; the joiner
    // calls ObjDestroy(). Do NOT free here.
    {
        if (t->m_join_state == StkThread::JoinState::Detached)
            ObjDestroy(t);
        // else: joiner owns the lifetime
    }

    return osOK;
}

References StkThread::Detached, g_StkKernel, StkThread::m_join_state, ObjDestroy(), osErrorParameter, osKernelGetState(), osKernelInactive, and osOK.

Here is the call graph for this function:

osThreadTerminateZone()

osStatus_t osThreadTerminateZone

(

uint32_t

zone

)

Terminate execution of threads assigned to a specified MPU protected zone.

Parameters

[in]

zone

MPU protected zone.

Returns

status code that indicates the execution status of the function.

osThreadYield()

osStatus_t osThreadYield

(

void

)

Pass control to next thread that is in state READY.

Returns

status code that indicates the execution status of the function.

Definition at line 831 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext())
        return osErrorISR;
    if (osKernelGetState() == osKernelInactive)
        return osError;

    stk::Yield();
    return osOK;
}

References IsIrqContext(), osError, osErrorISR, osKernelGetState(), osKernelInactive, osOK, and stk::Yield().

Here is the call graph for this function:

osTimerDelete()

osStatus_t osTimerDelete

(

osTimerId_t

timer_id

)

Delete a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1154 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (timer_id == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkTimer *timer = static_cast<StkTimer *>(timer_id);

    if ((g_TimerHost != nullptr) && timer->IsActive())
        g_TimerHost->Stop(*timer);

    ObjDestroy(timer);
    return osOK;
}

References g_TimerHost, stk::time::TimerHost::Timer::IsActive(), IsIrqContext(), ObjDestroy(), osErrorISR, osErrorParameter, and osOK.

Here is the call graph for this function:

osTimerGetName()

const char * osTimerGetName

(

osTimerId_t

timer_id

)

Get name of a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

name as null-terminated string.

Definition at line 1110 of file cmsis_os2_stk.cpp.

{
    if (timer_id == nullptr)
        return nullptr;

    return static_cast<StkTimer *>(timer_id)->m_name;
}

osTimerIsRunning()

uint32_t osTimerIsRunning

(

osTimerId_t

timer_id

)

Check if a timer is running.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

0 not running, 1 running.

Definition at line 1146 of file cmsis_os2_stk.cpp.

{
    if (timer_id == nullptr)
        return 0U;

    return (static_cast<StkTimer *>(timer_id)->IsActive() ? 1U : 0U);
}

osTimerNew()

osTimerId_t osTimerNew	(	osTimerFunc_t	func,
		osTimerType_t	type,
		void *	argument,
		const osTimerAttr_t *	attr )

Create and Initialize a timer.

Parameters

[in]	func	function pointer to callback function.
[in]	type	osTimerOnce for one-shot or osTimerPeriodic for periodic behavior.
[in]	argument	argument to the timer callback function.
[in]	attr	timer attributes; NULL: default values.

Returns

timer ID for reference by other functions or NULL in case of error.

Definition at line 1093 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (func == nullptr) || (osKernelGetState() == osKernelInactive))
        return nullptr;

    if (!StkTimer::EnsureTimerHostCreated())
        return nullptr;

    const char *name   = (attr != nullptr ? attr->name    : nullptr);
    void       *cb_mem = (attr != nullptr ? attr->cb_mem  : nullptr);
    uint32_t    cb_sz  = (attr != nullptr ? attr->cb_size : 0U);

    StkTimer *timer = PlacementNewOrHeap<StkTimer>(cb_mem, cb_sz, func, type, argument, name);
    return static_cast<osTimerId_t>(timer);
}

References osTimerAttr_t::cb_mem, osTimerAttr_t::cb_size, StkTimer::EnsureTimerHostCreated(), IsIrqContext(), osTimerAttr_t::name, osKernelGetState(), osKernelInactive, and PlacementNewOrHeap().

Here is the call graph for this function:

osTimerStart()

osStatus_t osTimerStart	(	osTimerId_t	timer_id,
		uint32_t	ticks )

Start or restart a timer.

Parameters

[in]	timer_id	timer ID obtained by osTimerNew.
[in]	ticks	time ticks value of the timer.

Returns

status code that indicates the execution status of the function.

Definition at line 1118 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (timer_id == nullptr) || (g_TimerHost == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkTimer *timer = static_cast<StkTimer *>(timer_id);

    uint32_t period = (timer->m_type == osTimerPeriodic) ? ticks : 0U;
    timer->m_period_ticks = period;

    bool ok = g_TimerHost->Restart(*timer, ticks, period);
    return (ok ? osOK : osError);
}

References g_TimerHost, IsIrqContext(), StkTimer::m_period_ticks, StkTimer::m_type, osError, osErrorISR, osErrorParameter, osOK, and osTimerPeriodic.

Here is the call graph for this function:

osTimerStop()

osStatus_t osTimerStop

(

osTimerId_t

timer_id

)

Stop a timer.

Parameters

[in]

timer_id

timer ID obtained by osTimerNew.

Returns

status code that indicates the execution status of the function.

Definition at line 1132 of file cmsis_os2_stk.cpp.

{
    if (IsIrqContext() || (timer_id == nullptr) || (g_TimerHost == nullptr))
        return IsIrqContext() ? osErrorISR : osErrorParameter;

    StkTimer *timer = static_cast<StkTimer *>(timer_id);

    if (!timer->IsActive())
        return osErrorResource;

    bool ok = g_TimerHost->Stop(*timer);
    return (ok ? osOK : osError);
}

References g_TimerHost, stk::time::TimerHost::Timer::IsActive(), IsIrqContext(), osError, osErrorISR, osErrorParameter, osErrorResource, and osOK.

Here is the call graph for this function:

osWatchdogAlarm_Handler()

uint32_t osWatchdogAlarm_Handler

(

osThreadId_t

thread_id

)

Handler for expired thread watchdogs.

Parameters

[in]

thread_id

thread ID obtained by osThreadNew or osThreadGetId.

Returns

new watchdog reload value or 0 to stop the watchdog.

osZoneSetup_Callback()

void osZoneSetup_Callback

(

uint32_t

zone

)

Setup MPU protected zone (called when zone changes).

Parameters

[in]

zone

zone number.
