Inheritance diagram for FrtosPendDrainer:

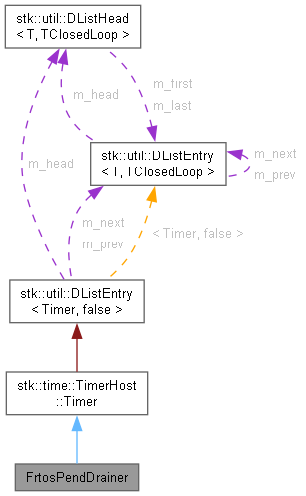

Collaboration diagram for FrtosPendDrainer:

Public Member Functions
void	OnExpired (stk::time::TimerHost *host) override
	Callback invoked by the handler task when this timer expires.
bool	IsActive () const
	Check whether the timer is currently active.
Ticks	GetDeadline () const
	Get the absolute time in ticks at which the timer will expire.
Ticks	GetTimestamp () const
	Get the tick count at which the timer last expired.
uint32_t	GetPeriod () const
	Get the reload period of the timer.
uint32_t	GetRemainingTicks () const
	Get remaining ticks until the timer next expires.

Private Types
typedef DListEntry< Timer, TClosedLoop >	DLEntryType
	Convenience alias for this entry type. Used to avoid repeating the full template spelling.
typedef DListHead< Timer, TClosedLoop >	DLHeadType
	Convenience alias for the corresponding list head type.

Private Member Functions
	STK_NONCOPYABLE_CLASS (Timer)
DLHeadType *	GetHead ()
	Get the list head this entry currently belongs to.
DLEntryType *	GetNext ()
	Get the next entry in the list.
DLEntryType *	GetPrev ()
	Get the previous entry in the list.
bool	IsLinked () const
	Check whether this entry is currently a member of any list.
	operator Timer * ()
	Implicit conversion to a mutable pointer to the host object (T).
	operator const Timer * () const
	Implicit conversion to a const pointer to the host object (T).
void	Link (DLHeadType head, DLEntryType next, DLEntryType *prev)
	Wire this entry into a list between prev and next.
void	Unlink ()
	Remove this entry from its current list.

Private Attributes
Ticks	m_deadline
	absolute expiration time (ticks)
Ticks	m_timestamp
	absolute time at which timer expired (ticks), updated by TimerHost
uint32_t	m_period
	reload period in ticks (0 = one-shot)
volatile bool	m_active
	true if active
volatile bool	m_pending
	true if pending to be handled
volatile bool	m_rearming
	true while a CMD_RESTART / CMD_START_OR_RESET is already in the command queue
DLHeadType *	m_head
	Owning list head, or `NULL` when the entry is not linked.
DLEntryType *	m_next
	Next entry in the list, or `NULL` (open list boundary) / first entry (closed loop).
DLEntryType *	m_prev
	Previous entry in the list, or `NULL` (open list boundary) / last entry (closed loop).

Detailed Description

Definition at line 833 of file freertos_stk.cpp.

Member Typedef Documentation

◆ DLEntryType

typedef DListEntry<Timer, TClosedLoop> stk::util::DListEntry< Timer, TClosedLoop >::DLEntryType

inherited

Convenience alias for this entry type. Used to avoid repeating the full template spelling.

Definition at line 70 of file stk_linked_list.h.

◆ DLHeadType

typedef DListHead<Timer, TClosedLoop> stk::util::DListEntry< Timer, TClosedLoop >::DLHeadType

inherited

Convenience alias for the corresponding list head type.

Definition at line 75 of file stk_linked_list.h.

Member Function Documentation

◆ GetDeadline()

Ticks stk::time::TimerHost::Timer::GetDeadline ( ) const

inlineinherited

Get the absolute time in ticks at which the timer will expire.

Returns: Absolute expiration deadline in ticks.

Note: Meaningful only when IsActive() returns true.

Definition at line 174 of file stk_time_timer.h.

174{ return m_deadline; }

stk::time::TimerHost::Timer::m_deadline

Ticks m_deadline

absolute expiration time (ticks)

Definition stk_time_timer.h:198

References m_deadline.

Referenced by stk_timer_get_deadline(), and xTimerGetExpiryTime().

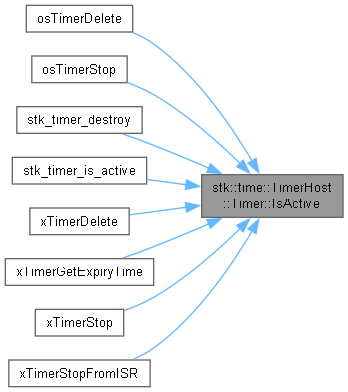

Here is the caller graph for this function:

◆ GetHead()

DLHeadType * stk::util::DListEntry< Timer, TClosedLoop >::GetHead ( )

inlineinherited

Get the list head this entry currently belongs to.

Returns: Pointer to the owning DListHead, or NULL if the entry is not linked.

Definition at line 80 of file stk_linked_list.h.

80{ return m_head; }

stk::util::DListEntry

Intrusive doubly-linked list node. Embed this as a base class in any object (T) that needs to partici...

Definition stk_linked_list.h:58

◆ GetNext()

DLEntryType * stk::util::DListEntry< Timer, TClosedLoop >::GetNext ( )

inlineinherited

Get the next entry in the list.

Returns: Pointer to the next DListEntry, or NULL if this is the last entry (open list) or the first entry (closed loop, where next wraps to first).

Note: In a closed loop (TClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 93 of file stk_linked_list.h.

93{ return m_next; }

◆ GetPeriod()

uint32_t stk::time::TimerHost::Timer::GetPeriod ( ) const

inlineinherited

Get the reload period of the timer.

Returns: Period in ticks, or 0 for a one-shot timer.

Definition at line 185 of file stk_time_timer.h.

185{ return m_period; }

stk::time::TimerHost::Timer::m_period

uint32_t m_period

reload period in ticks (0 = one-shot)

Definition stk_time_timer.h:200

References m_period.

Referenced by stk_timer_get_period().

Here is the caller graph for this function:

◆ GetPrev()

DLEntryType * stk::util::DListEntry< Timer, TClosedLoop >::GetPrev ( )

inlineinherited

Get the previous entry in the list.

Returns: Pointer to the previous DListEntry, or NULL if this is the first entry (open list) or the last entry (closed loop, where prev wraps to last).

Note: In a closed loop (TClosedLoop == true) this pointer is never NULL when the entry is linked.

Definition at line 109 of file stk_linked_list.h.

109{ return m_prev; }

◆ GetRemainingTicks()

uint32_t stk::time::TimerHost::Timer::GetRemainingTicks ( ) const

inlineinherited

Get remaining ticks until the timer next expires.

Returns: Ticks remaining, or 0 if already expired / not active.

Note: The value is advisory: it is computed from m_now (the last value written by the tick task) and may be up to one tick task wake cycle stale. If the deadline has already passed but not yet been processed, 0 is returned.

Definition at line 472 of file stk_time_timer.h.

{
    uint32_t remaining_ticks = 0U;

    if (m_active)
    {
        // if deadline has passed but not yet been processed by the tick task,
        // remaining would be negative, result fits in uint32_t because delay and
        // period are uint32_t, so remaining time is bounded by uint32_t max
        const Ticks remaining = m_deadline - GetTicks();

        if (remaining > 0)
        {
            remaining_ticks = static_cast<uint32_t>(remaining);
        }
    }

    return remaining_ticks;
}

References stk::GetTicks(), m_active, and m_deadline.

Referenced by stk_timer_get_remaining_ticks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTimestamp()

Ticks stk::time::TimerHost::Timer::GetTimestamp ( ) const

inlineinherited

Get the tick count at which the timer last expired.

Returns: Absolute tick count recorded by the tick task at expiration time, or 0 if the timer has never fired.

Definition at line 180 of file stk_time_timer.h.

180{ return m_timestamp; }

stk::time::TimerHost::Timer::m_timestamp

Ticks m_timestamp

absolute time at which timer expired (ticks), updated by TimerHost

Definition stk_time_timer.h:199

References m_timestamp.

Referenced by stk_timer_get_timestamp().

Here is the caller graph for this function:

◆ IsActive()

bool stk::time::TimerHost::Timer::IsActive ( ) const

inlineinherited

Check whether the timer is currently active.

Returns: True if the timer has been started and not yet stopped or expired (one-shot).

Note: The value is advisory, it is written by the tick task and read without synchronization, so it may be transiently stale on multi-core targets.

Definition at line 168 of file stk_time_timer.h.

168{ return m_active; }

References m_active.

Referenced by osTimerDelete(), osTimerStop(), stk_timer_destroy(), stk_timer_is_active(), xTimerDelete(), xTimerGetExpiryTime(), xTimerStop(), and xTimerStopFromISR().

Here is the caller graph for this function:

◆ IsLinked()

bool stk::util::DListEntry< Timer, TClosedLoop >::IsLinked ( ) const

inlineinherited

Check whether this entry is currently a member of any list.

Returns: true if linked (m_head != NULL); false otherwise.

Definition at line 122 of file stk_linked_list.h.

122{ return (GetHead() != nullptr); }

stk::util::DListEntry< Timer, false >::GetHead

DLHeadType * GetHead()

Definition stk_linked_list.h:80

◆ Link()

void stk::util::DListEntry< Timer, TClosedLoop >::Link	(	DLHeadType *	head,
		DLEntryType *	next,
		DLEntryType *	prev )

inlineprivateinherited

Wire this entry into a list between prev and next.

Parameters

[in]	head	The owning DListHead. Stored as a back-pointer for IsLinked() and ownership checks.
[in]	next	The entry that will follow this one, or `NULL` if this becomes the last entry.
[in]	prev	The entry that will precede this one, or `NULL` if this becomes the first entry.

Note: Called exclusively by DListHead::Link(). Assumes the entry is not currently linked. Updates the neighbours' forward/back pointers to splice this entry in.

Definition at line 157 of file stk_linked_list.h.

    {
        m_head = head;
        m_next = next;
        m_prev = prev;

        if (m_prev != nullptr)
        {
            m_prev->m_next = this;
        }

        if (m_next != nullptr)
        {
            m_next->m_prev = this;
        }
    }

◆ OnExpired()

void FrtosPendDrainer::OnExpired ( stk::time::TimerHost * host )

inlineoverridevirtual

Callback invoked by the handler task when this timer expires.

Parameters

[in] host Pointer to the TimerHost that fired this timer.

Note: Executes in the context of a TimerHost handler task. Implementations must be safe to call from that task's context and should complete quickly, long-running work should be delegated (e.g. via an event or queue) to avoid blocking other expired timers.

Implements stk::time::TimerHost::Timer.

Definition at line 835 of file freertos_stk.cpp.

    {
        PendCall call;
        while (g_PendCallPipe.TryRead(call))
            call.func(call.param1, call.param2);

        // Pipe is empty: stop the auto-reload drainer until the next enqueue.
        // host->Stop() is safe to call from OnExpired() because the TimerHost
        // removes the timer from the active list before dispatching OnExpired.
        if (host != nullptr)
            host->Stop(*this);
    }

References PendCall::func, g_PendCallPipe, PendCall::param1, PendCall::param2, and stk::time::TimerHost::Stop().

Here is the call graph for this function:

◆ operator const Timer *()

stk::util::DListEntry< Timer, TClosedLoop >::operator const Timer * ( ) const

inlineinherited

Implicit conversion to a const pointer to the host object (T).

Note: Safe because T must derive from DListEntry<T, TClosedLoop>. Eliminates the need for explicit static_cast at call sites.; MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 136 of file stk_linked_list.h.

136{ return static_cast<const T *>(this); }

◆ operator Timer *()

stk::util::DListEntry< Timer, TClosedLoop >::operator Timer* ( )

inlineinherited

Implicit conversion to a mutable pointer to the host object (T).

Note: Safe because T must derive from DListEntry<T, TClosedLoop>. Eliminates the need for explicit static_cast at call sites.; MISRA deviation: [STK-DEV-004] Rule 5-2-x.

Definition at line 129 of file stk_linked_list.h.

129{ return static_cast<T *>(this); }

◆ STK_NONCOPYABLE_CLASS()

stk::time::TimerHost::Timer::STK_NONCOPYABLE_CLASS ( Timer )

privateinherited

References Timer().

Here is the call graph for this function:

◆ Unlink()

void stk::util::DListEntry< Timer, TClosedLoop >::Unlink ( )

inlineprivateinherited

Remove this entry from its current list.

Note: Called exclusively by DListHead::Unlink(). Patches the neighbours' pointers to bridge over this entry, then clears m_head, m_next, and m_prev to NULL so the entry is in a clean unlinked state.; Does not update DListHead::m_count or m_first / m_last — those are the responsibility of the calling DListHead::Unlink().

Definition at line 181 of file stk_linked_list.h.

    {
        if (m_prev != nullptr)
        {
            m_prev->m_next = m_next;
        }

        if (m_next != nullptr)
        {
            m_next->m_prev = m_prev;
        }

        m_head = nullptr;
        m_next = nullptr;
        m_prev = nullptr;
    }

Member Data Documentation

◆ m_active

volatile bool stk::time::TimerHost::Timer::m_active

privateinherited

true if active

Definition at line 201 of file stk_time_timer.h.

Referenced by GetRemainingTicks(), IsActive(), stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::Reset(), stk::time::TimerHost::SetPeriod(), stk::time::TimerHost::Start(), stk::time::TimerHost::Stop(), Timer(), and stk::time::TimerHost::UpdateTime().

◆ m_deadline

Ticks stk::time::TimerHost::Timer::m_deadline

privateinherited

absolute expiration time (ticks)

Definition at line 198 of file stk_time_timer.h.

Referenced by GetDeadline(), GetRemainingTicks(), stk::time::TimerHost::ProcessCommands(), Timer(), and stk::time::TimerHost::UpdateTime().

◆ m_head

DLHeadType* stk::util::DListEntry< Timer, TClosedLoop >::m_head

privateinherited

Owning list head, or NULL when the entry is not linked.

Definition at line 198 of file stk_linked_list.h.

◆ m_next

DLEntryType* stk::util::DListEntry< Timer, TClosedLoop >::m_next

privateinherited

Next entry in the list, or NULL (open list boundary) / first entry (closed loop).

Definition at line 199 of file stk_linked_list.h.

◆ m_pending

volatile bool stk::time::TimerHost::Timer::m_pending

privateinherited

true if pending to be handled

Definition at line 202 of file stk_time_timer.h.

Referenced by stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::ProcessTimers(), Timer(), and stk::time::TimerHost::UpdateTime().

◆ m_period

uint32_t stk::time::TimerHost::Timer::m_period

privateinherited

reload period in ticks (0 = one-shot)

Definition at line 200 of file stk_time_timer.h.

Referenced by GetPeriod(), stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::Reset(), stk::time::TimerHost::SetPeriod(), Timer(), and stk::time::TimerHost::UpdateTime().

◆ m_prev

DLEntryType* stk::util::DListEntry< Timer, TClosedLoop >::m_prev

privateinherited

Previous entry in the list, or NULL (open list boundary) / last entry (closed loop).

Definition at line 200 of file stk_linked_list.h.

◆ m_rearming

volatile bool stk::time::TimerHost::Timer::m_rearming

privateinherited

true while a CMD_RESTART / CMD_START_OR_RESET is already in the command queue

Definition at line 203 of file stk_time_timer.h.

Referenced by stk::time::TimerHost::ProcessCommands(), stk::time::TimerHost::PushCommand(), and Timer().

◆ m_timestamp

Ticks stk::time::TimerHost::Timer::m_timestamp

privateinherited

absolute time at which timer expired (ticks), updated by TimerHost

Definition at line 199 of file stk_time_timer.h.

Referenced by GetTimestamp(), Timer(), and stk::time::TimerHost::UpdateTime().

The documentation for this struct was generated from the following file:

freertos_stk.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ DLEntryType

◆ DLHeadType

Member Function Documentation

◆ GetDeadline()

◆ GetHead()

◆ GetNext()

◆ GetPeriod()

◆ GetPrev()

◆ GetRemainingTicks()

◆ GetTimestamp()

◆ IsActive()

◆ IsLinked()

◆ Link()

◆ OnExpired()

◆ operator const Timer *()

◆ operator Timer *()

◆ STK_NONCOPYABLE_CLASS()

◆ Unlink()

Member Data Documentation

◆ m_active

◆ m_deadline

◆ m_head

◆ m_next

◆ m_pending

◆ m_period

◆ m_prev

◆ m_rearming

◆ m_timestamp
