stk::sync::PipeT< T, N > Class Template Reference

Thread-safe, type-safe FIFO communication pipe with internal storage. More...

#include <stk_sync_pipe.h>

Inheritance diagram for stk::sync::PipeT< T, N >:

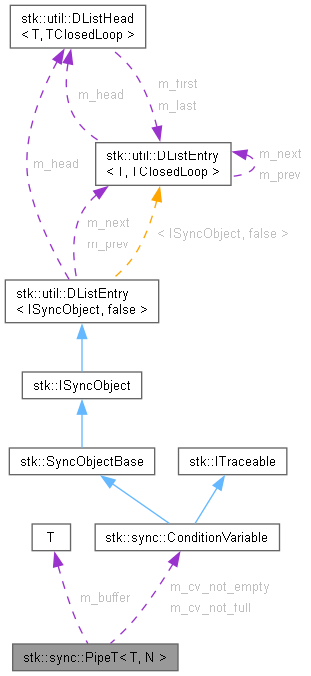

Collaboration diagram for stk::sync::PipeT< T, N >:

Public Member Functions
	PipeT ()
	Constructor.
EWaitResult	WriteEx (const T &data, Timeout timeout_ticks=WAIT_INFINITE)
	Write data to the pipe, preserving the full wait outcome.
bool	Write (const T &data, Timeout timeout_ticks=WAIT_INFINITE)
	Write data to the pipe.
bool	TryWrite (const T &data)
	Attempt to write data to the pipe without blocking.
EWaitResult	WriteBulkEx (const T *src, size_t count, size_t &written, Timeout timeout_ticks=WAIT_INFINITE)
	Write multiple elements to the pipe, preserving the full wait outcome.
size_t	WriteBulk (const T *src, size_t count, Timeout timeout_ticks=WAIT_INFINITE)
	Write multiple elements to the pipe.
size_t	TryWriteBulk (const T *src, size_t count)
	Attempt to write multiple elements to the pipe without blocking.
EWaitResult	ReadEx (T &data, Timeout timeout_ticks=WAIT_INFINITE)
	Read data from the pipe, preserving the full wait outcome.
bool	Read (T &data, Timeout timeout_ticks=WAIT_INFINITE)
	Read data from the pipe.
bool	TryRead (T &data)
	Attempt to read data from the pipe without blocking.
EWaitResult	ReadBulkEx (T *dst, size_t count, size_t &read_count, Timeout timeout_ticks=WAIT_INFINITE)
	Read multiple elements from the pipe, preserving the full wait outcome.
size_t	ReadBulk (T *dst, size_t count, Timeout timeout_ticks=WAIT_INFINITE)
	Read multiple elements from the pipe.
size_t	TryReadBulk (T *dst, size_t count)
	Attempt to read multiple elements from the pipe without blocking.
void	Reset ()
	Discard all elements and reset the pipe to the empty state.
size_t	GetCapacity () const
	Get the maximum number of elements the pipe can hold.
size_t	GetCount () const
	Get the current number of elements in the pipe.
size_t	GetSpace () const
	Get the number of free slots currently available.
bool	IsEmpty () const
	Check if the pipe is currently empty.
bool	IsFull () const
	Check if the pipe is currently full.

Private Member Functions
	PipeT (const PipeT &)=delete
PipeT &	operator= (const PipeT &)=delete

Private Attributes
T	m_buffer [N]
	static storage for FIFO elements
size_t	m_head
	index of the next slot to be written (producer)
size_t	m_tail
	index of the next slot to be read (consumer)
size_t	m_count
	current number of elements stored in the pipe
ConditionVariable	m_cv_not_empty
	condition variable signaled when the pipe is no longer empty
ConditionVariable	m_cv_not_full
	condition variable signaled when the pipe is no longer full

Detailed Description

template<typename T, size_t N>
class stk::sync::PipeT< T, N >

Thread-safe, type-safe FIFO communication pipe with internal storage.

Template Parameters

T	Data type of elements.
N	Capacity of the pipe (number of elements).

PipeT provides a synchronized ring-buffer mechanism that allows tasks to exchange typed data safely. It implements blocking semantics:

• Write() blocks if the pipe is full until space becomes available.
• Read() blocks if the pipe is empty until data is produced.

Unlike stk::sync::Pipe, which operates on raw byte buffers and uses memcpy for all transfers, PipeT is parameterised on a concrete element type T. This enables:

• Direct typed assignment (no memcpy overhead for scalar types).
• Compile-time constant propagation for capacity N and element size, allowing the compiler to strength-reduce modulo operations and eliminate dead branches in bulk transfer paths.
• A fully type-safe call interface using T references and pointers.

Note

The boolean / count-returning calls (Write(), Read(), WriteBulk(), ReadBulk()) collapse a timeout and a cancellation (IKernel::CancelTaskWait()) into the same failure result. Use the *Ex() variants (WriteEx(), ReadEx(), WriteBulkEx(), ReadBulkEx()) if the caller needs to tell them apart.

// Example: Producer-Consumer pattern
stk::sync::PipeT<uint32_t, 8> g_DataPipe;

void Task_Producer() {
    uint32_t value = 42;
    // blocks if pipe is full
    g_DataPipe.Write(value);
}

void Task_Consumer() {
    uint32_t received;
    // blocks until data is available, with a 1 s timeout
    if (g_DataPipe.Read(received, 1000)) {
        // ... process received value ...
    }
}

See also

Pipe, MessageQueueT, ConditionVariable

Note

Only available when kernel is compiled with KERNEL_SYNC mode enabled.

Definition at line 848 of file stk_sync_pipe.h.

Constructor & Destructor Documentation

PipeT() [1/2]

template<typename T, size_t N>

stk::sync::PipeT< T, N >::PipeT ( )

inlineexplicit

Constructor.

Definition at line 853 of file stk_sync_pipe.h.

                     : m_buffer(), m_head(0U), m_tail(0U), m_count(0U), m_cv_not_empty(), m_cv_not_full()
    {}

PipeT() [2/2]

template<typename T, size_t N>

stk::sync::PipeT< T, N >::PipeT ( const PipeT< T, N > & )

privatedelete

Member Function Documentation

GetCapacity()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::GetCapacity ( ) const

inline

Get the maximum number of elements the pipe can hold.

Returns

Compile-time capacity N.

Note

ISR-safe.

Definition at line 1324 of file stk_sync_pipe.h.

{ return N; }

GetCount()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::GetCount ( ) const

inline

Get the current number of elements in the pipe.

Returns

Point-in-time snapshot of the element count. May be stale by the time the caller acts on it in a multi-task environment.

Note

ISR-safe on targets where a size_t-aligned read is atomic.

Definition at line 1331 of file stk_sync_pipe.h.

{ return m_count; }

GetSpace()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::GetSpace ( ) const

inline

Get the number of free slots currently available.

Returns

Point-in-time snapshot of the free-slot count.

Note

ISR-safe.

Definition at line 1337 of file stk_sync_pipe.h.

{ return (N - m_count); }

IsEmpty()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::IsEmpty ( ) const

inline

Check if the pipe is currently empty.

Returns

true if empty, otherwise false.

Note

The returned value is a point-in-time snapshot.

ISR-safe.

Definition at line 1344 of file stk_sync_pipe.h.

{ return (m_count == 0U); }

IsFull()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::IsFull ( ) const

inline

Check if the pipe is currently full.

Returns

true if full, otherwise false.

Note

The returned value is a point-in-time snapshot.

ISR-safe.

Definition at line 1351 of file stk_sync_pipe.h.

{ return (m_count == N); }

operator=()

template<typename T, size_t N>

PipeT & stk::sync::PipeT< T, N >::operator= ( const PipeT< T, N > & )

privatedelete

Read()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::Read ( T & data, Timeout timeout_ticks = WAIT_INFINITE )

inline

Read data from the pipe.

Attempts to retrieve an element from the FIFO queue. If pipe is empty, the calling task will be suspended until data is provided by a producer or the timeout expires.

Parameters

[out]	data	Reference to the variable where the retrieved data will be stored.
[in]	timeout_ticks	Maximum time to wait for data (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

true if data was successfully read, false otherwise (timeout, cancellation or NO_WAIT on an empty pipe). Use ReadEx() to tell these apart.

Definition at line 1145 of file stk_sync_pipe.h.

    {
        return (ReadEx(data, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::TryRead().

Here is the caller graph for this function:

ReadBulk()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::ReadBulk ( T * dst, size_t count, Timeout timeout_ticks = WAIT_INFINITE )

inline

Read multiple elements from the pipe.

Attempts to retrieve a block of data from the FIFO. If pipe does not contain enough elements to satisfy the requested count, it will block until the full amount is read or the timeout expires.

Parameters

[out]	dst	Pointer to the destination array.
[in]	count	Number of elements to read.
[in]	timeout_ticks	Maximum time to wait for data (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

Number of elements actually read. Equal to count unless a timeout or a cancellation occurred. Use ReadBulkEx() to tell these apart.

// Example:
Sample frame[64];

size_t result = g_Pipe.ReadBulk(frame, 64, 500);
if (result == 64) {
    // process full frame
} else {
    // handle partial read / timeout
}

Definition at line 1283 of file stk_sync_pipe.h.

    {
        size_t read_count = 0U;
        const EWaitResult result = ReadBulkEx(dst, count, read_count, timeout_ticks);
        STK_UNUSED(result);
        return read_count;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::TryReadBulk().

Here is the caller graph for this function:

ReadBulkEx()

template<typename T, size_t N>

EWaitResult stk::sync::PipeT< T, N >::ReadBulkEx ( T * dst, size_t count, size_t & read_count, Timeout timeout_ticks = WAIT_INFINITE )

inline

Read multiple elements from the pipe, preserving the full wait outcome.

Identical to ReadBulk(), except the caller gets the raw EWaitResult and the number of elements read through read_count, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout. Elements already copied into dst before a timeout or cancellation stay valid and are counted.

Parameters

[out]	dst	Pointer to the destination array.
[in]	count	Number of elements to read.
[out]	read_count	Number of elements actually read (always set, 0 on WAIT_RESULT_FAIL).
[in]	timeout_ticks	Maximum time to wait for data (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if all count elements were read (also for count = 0), WAIT_RESULT_TIMEOUT if the timeout expired (or NO_WAIT was passed) before all elements were available, WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if dst is nullptr or the kernel rejected the wait. On any non-signal result read_count holds the partial count.

Definition at line 1175 of file stk_sync_pipe.h.

    {
        read_count = 0U;

        // null destination is rejected, an empty request is trivially satisfied
        EWaitResult result = ((dst != nullptr) ? WAIT_RESULT_SIGNAL : WAIT_RESULT_FAIL);

        if ((dst != nullptr) && (count != 0U))
        {
            const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

            // capture an absolute deadline once, before entering the wait loop,
            // preventing the timeout from resetting on intermediate partial reads
            const Timeout deadline = (timed_wait ?
                static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

            ScopedCriticalSection cs_;

            while (read_count < count)
            {
                // wait until there is at least 1 element available
                while (m_count == 0U)
                {
                    Timeout remaining = deadline;
                    if (timed_wait)
                    {
                        const Timeout now = static_cast<Timeout>(GetTicks());
                        remaining = (now >= deadline ? NO_WAIT : (deadline - now));
                    }

                    const EWaitResult wr = m_cv_not_empty.WaitEx(cs_, remaining);
                    if (wr != WAIT_RESULT_SIGNAL)
                    {
                        result = wr;
                        break; // break inner condition variable loop
                    }
                }

                // if the wait failed (timeout, cancellation), drop out of the chunk processing loop
                if (result != WAIT_RESULT_SIGNAL)
                {
                    break;
                }

                // determine how many we can pull in this stretch
                const size_t to_read = (count - read_count) < m_count ? (count - read_count) : m_count;

                // note: if value type is not scalar or queue is small we copy with a for loop,
                //       otherwise using faster memcpy version for large scalar arrays
                if (!std::is_scalar<T>::value || (N < 8U))
                {
                    for (size_t i = 0U; i < to_read; ++i)
                    {
                        dst[read_count++] = m_buffer[m_tail];
                        m_tail            = (m_tail + 1U) % N;
                        m_count          -= 1U;
                    }
                }
                else
                {
                    const size_t first_part = N - m_tail;

                    if (to_read <= first_part)
                    {
                        STK_MEMCPY(&dst[read_count], &m_buffer[m_tail], to_read * sizeof(T));
                    }
                    else
                    {
                        STK_MEMCPY(&dst[read_count],              &m_buffer[m_tail], first_part              * sizeof(T));
                        STK_MEMCPY(&dst[read_count + first_part], &m_buffer[0U],     (to_read - first_part)  * sizeof(T));
                    }

                    read_count += to_read;
                    m_tail      = (m_tail + to_read) % N;
                    m_count    -= to_read;
                }

                // notify producers that space is now available
                m_cv_not_full.NotifyAll_CS();
            }
        }

        return result;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::ReadBulk().

Here is the caller graph for this function:

ReadEx()

template<typename T, size_t N>

EWaitResult stk::sync::PipeT< T, N >::ReadEx ( T & data, Timeout timeout_ticks = WAIT_INFINITE )

inline

Read data from the pipe, preserving the full wait outcome.

Identical to Read(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[out]	data	Reference to the variable where the retrieved data will be stored.
[in]	timeout_ticks	Maximum time to wait for data (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if an element was read, WAIT_RESULT_TIMEOUT if no data became available before the timeout expired (or NO_WAIT was passed on an empty pipe), WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if the kernel rejected the wait. data is not modified on a non-signal result.

Definition at line 1091 of file stk_sync_pipe.h.

    {
        ScopedCriticalSection cs_;
        EWaitResult result = WAIT_RESULT_SIGNAL;

        const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

        // capture an absolute deadline once, before entering the wait loop; a different
        // consumer can steal the just-produced element between NotifyOne_CS() and this
        // task re-acquiring the critical section (Mesa-style wakeup, not a direct handoff),
        // so re-passing the original timeout_ticks on each retry would silently restart it
        const Timeout deadline = (timed_wait ?
            static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

        while (m_count == 0U)
        {
            Timeout remaining = deadline;
            if (timed_wait)
            {
                const Timeout now = static_cast<Timeout>(GetTicks());
                remaining = (now >= deadline ? NO_WAIT : (deadline - now));
            }

            result = m_cv_not_empty.WaitEx(cs_, remaining);
            if (result != WAIT_RESULT_SIGNAL)
            {
                // timeout, cancellation or kernel failure: nothing is read
                break;
            }
        }

        if (result == WAIT_RESULT_SIGNAL)
        {
            data     = m_buffer[m_tail];
            m_tail   = (m_tail + 1U) % N;
            m_count -= 1U;

            // notify producer that space is available
            m_cv_not_full.NotifyOne_CS();
        }

        return result;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::Read().

Here is the caller graph for this function:

Reset()

template<typename T, size_t N>

void stk::sync::PipeT< T, N >::Reset ( )

inline

Discard all elements and reset the pipe to the empty state.

Resets head, tail and count to zero. Any tasks blocked in Write() are woken so they can re-evaluate and enqueue into the now-empty pipe.

Warning

Elements that were in the pipe are silently discarded. Ensure no consumers depend on them before calling Reset().

ISR-safe.

Definition at line 1307 of file stk_sync_pipe.h.

    {
        const ScopedCriticalSection cs_;

        m_count = 0U;
        m_head  = 0U;
        m_tail  = 0U;

        // wake all blocked producers: the pipe is now entirely empty, every slot is free
        // note: we do not release readers here
        m_cv_not_full.NotifyAll_CS();
    }

TryRead()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::TryRead ( T & data )

inline

Attempt to read data from the pipe without blocking.

Dequeues an element only if one is immediately available. Returns false instantly if the pipe is empty.

Parameters

[out]

data

Reference to the variable where the retrieved data will be stored.

Warning

ISR-safe.

Returns

true if data was successfully read, false if the pipe was empty.

Definition at line 1157 of file stk_sync_pipe.h.

{ return Read(data, NO_WAIT); }

TryReadBulk()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::TryReadBulk ( T * dst, size_t count )

inline

Attempt to read multiple elements from the pipe without blocking.

Reads as many elements as are currently available without blocking.

Parameters

[out]	dst	Pointer to the destination array.
[in]	count	Number of elements to read.

Warning

ISR-safe.

Returns

Number of elements actually read.

Definition at line 1298 of file stk_sync_pipe.h.

{ return ReadBulk(dst, count, NO_WAIT); }

TryWrite()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::TryWrite ( const T & data )

inline

Attempt to write data to the pipe without blocking.

Enqueues the element only if a free slot is immediately available. Returns false instantly if the pipe is full.

Parameters

[in]

data

Reference to the data element to be copied into the pipe.

Warning

ISR-safe.

Returns

true if data was successfully written, false if no space is available.

Definition at line 934 of file stk_sync_pipe.h.

{ return Write(data, NO_WAIT); }

TryWriteBulk()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::TryWriteBulk ( const T * src, size_t count )

inline

Attempt to write multiple elements to the pipe without blocking.

Copies as many elements as possible without blocking. Elements that do not fit are discarded.

Parameters

[in]	src	Pointer to the source array.
[in]	count	Number of elements to write.

Warning

ISR-safe.

Returns

Number of elements actually written.

Definition at line 1077 of file stk_sync_pipe.h.

{ return WriteBulk(src, count, NO_WAIT); }

Write()

template<typename T, size_t N>

bool stk::sync::PipeT< T, N >::Write ( const T & data, Timeout timeout_ticks = WAIT_INFINITE )

inline

Write data to the pipe.

Attempts to push an element into the FIFO queue. If pipe is full, the calling task will be suspended until space is made available by a consumer or the timeout expires.

Parameters

[in]	data	Reference to the data element to be copied into the pipe.
[in]	timeout_ticks	Maximum time to wait for space (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

true if data was successfully written, false otherwise (timeout, cancellation or NO_WAIT on a full pipe). Use WriteEx() to tell these apart.

Definition at line 922 of file stk_sync_pipe.h.

    {
        return (WriteEx(data, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::TryWrite().

Here is the caller graph for this function:

WriteBulk()

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::WriteBulk ( const T * src, size_t count, Timeout timeout_ticks = WAIT_INFINITE )

inline

Write multiple elements to the pipe.

Copies a block of data into the FIFO. If the pipe does not have enough space for the entire block, it will block until the full amount can be written or the timeout expires.

Parameters

[in]	src	Pointer to the source array.
[in]	count	Number of elements to write.
[in]	timeout_ticks	Maximum time to wait for sufficient space (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

Number of elements actually written. Equal to count unless a timeout or a cancellation occurred. Use WriteBulkEx() to tell these apart.

// Example:
Sample frame[64];
FillFrame(frame);

size_t result = g_Pipe.WriteBulk(frame, 64, 500);
if (result < 64) {
    // handle partial write / timeout
}

Definition at line 1061 of file stk_sync_pipe.h.

    {
        size_t written = 0U;
        const EWaitResult result = WriteBulkEx(src, count, written, timeout_ticks);
        STK_UNUSED(result);
        return written;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::TryWriteBulk().

Here is the caller graph for this function:

WriteBulkEx()

template<typename T, size_t N>

EWaitResult stk::sync::PipeT< T, N >::WriteBulkEx ( const T * src, size_t count, size_t & written, Timeout timeout_ticks = WAIT_INFINITE )

inline

Write multiple elements to the pipe, preserving the full wait outcome.

Identical to WriteBulk(), except the caller gets the raw EWaitResult and the number of elements written through written, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout. Elements already copied into the pipe before a timeout or cancellation stay in the pipe.

Parameters

[in]	src	Pointer to the source array.
[in]	count	Number of elements to write.
[out]	written	Number of elements actually written (always set, 0 on WAIT_RESULT_FAIL).
[in]	timeout_ticks	Maximum time to wait for sufficient space (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if all count elements were written (also for count = 0), WAIT_RESULT_TIMEOUT if the timeout expired (or NO_WAIT was passed) before all elements fitted, WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if src is nullptr or the kernel rejected the wait. On any non-signal result written holds the partial count.

Definition at line 952 of file stk_sync_pipe.h.

    {
        written = 0U;

        // null source is rejected, an empty request is trivially satisfied
        EWaitResult result = ((src != nullptr) ? WAIT_RESULT_SIGNAL : WAIT_RESULT_FAIL);

        if ((src != nullptr) && (count != 0U))
        {
            const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

            // capture an absolute deadline once, before entering the wait loop,
            // preventing the timeout from resetting on intermediate partial writes
            const Timeout deadline = (timed_wait ?
                static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

            ScopedCriticalSection cs_;

            while (written < count)
            {
                // wait until there is at least 1 free slot
                while (m_count == N)
                {
                    Timeout remaining = deadline;
                    if (timed_wait)
                    {
                        const Timeout now = static_cast<Timeout>(GetTicks());
                        remaining = (now >= deadline ? NO_WAIT : (deadline - now));
                    }

                    const EWaitResult wr = m_cv_not_full.WaitEx(cs_, remaining);
                    if (wr != WAIT_RESULT_SIGNAL)
                    {
                        result = wr;
                        break; // break inner condition variable loop
                    }
                }

                // if the wait failed (timeout, cancellation), drop out of the chunk processing loop
                if (result != WAIT_RESULT_SIGNAL)
                {
                    break;
                }

                // calculate how many we can copy in this contiguous stretch
                const size_t available = N - m_count;
                const size_t to_write  = ((count - written) < available) ? (count - written) : available;

                // copy from source
                // note: if value type is not scalar or queue is small we copy with a for loop,
                //       otherwise using faster memcpy version for large scalar arrays
                if (!std::is_scalar<T>::value || (N < 8U))
                {
                    for (size_t i = 0U; i < to_write; ++i)
                    {
                        m_buffer[m_head] = src[written++];
                        m_head           = (m_head + 1U) % N;
                        m_count         += 1U;
                    }
                }
                else
                {
                    const size_t first_part = N - m_head;

                    if (to_write <= first_part)
                    {
                        STK_MEMCPY(&m_buffer[m_head], &src[written], to_write * sizeof(T));
                    }
                    else
                    {
                        STK_MEMCPY(&m_buffer[m_head], &src[written],              first_part              * sizeof(T));
                        STK_MEMCPY(&m_buffer[0U],     &src[written + first_part], (to_write - first_part) * sizeof(T));
                    }

                    written += to_write;
                    m_head   = (m_head + to_write) % N;
                    m_count += to_write;
                }

                // notify consumers that data is ready
                m_cv_not_empty.NotifyAll_CS();
            }
        }

        return result;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::WriteBulk().

Here is the caller graph for this function:

WriteEx()

template<typename T, size_t N>

EWaitResult stk::sync::PipeT< T, N >::WriteEx ( const T & data, Timeout timeout_ticks = WAIT_INFINITE )

inline

Write data to the pipe, preserving the full wait outcome.

Identical to Write(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[in]	data	Reference to the data element to be copied into the pipe.
[in]	timeout_ticks	Maximum time to wait for space (ticks). Default: WAIT_INFINITE.

Warning

ISR-safe only with timeout_ticks=NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if data was written, WAIT_RESULT_TIMEOUT if no space became available before the timeout expired (or NO_WAIT was passed on a full pipe), WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if the kernel rejected the wait. Nothing is written on a non-signal result.

Definition at line 868 of file stk_sync_pipe.h.

    {
        ScopedCriticalSection cs_;
        EWaitResult result = WAIT_RESULT_SIGNAL;

        const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

        // capture an absolute deadline once, before entering the wait loop; a different
        // producer can steal the just-freed slot between NotifyOne_CS() and this task
        // re-acquiring the critical section (Mesa-style wakeup, not a direct handoff),
        // so re-passing the original timeout_ticks on each retry would silently restart it
        const Timeout deadline = (timed_wait ?
            static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

        while (m_count == N)
        {
            Timeout remaining = deadline;
            if (timed_wait)
            {
                const Timeout now = static_cast<Timeout>(GetTicks());
                remaining = (now >= deadline ? NO_WAIT : (deadline - now));
            }

            result = m_cv_not_full.WaitEx(cs_, remaining);
            if (result != WAIT_RESULT_SIGNAL)
            {
                // timeout, cancellation or kernel failure: nothing is written
                break;
            }
        }

        if (result == WAIT_RESULT_SIGNAL)
        {
            m_buffer[m_head] = data;
            m_head = (m_head + 1U) % N;
            m_count += 1U;

            // notify consumer that data is ready
            m_cv_not_empty.NotifyOne_CS();
        }

        return result;
    }

Referenced by stk::sync::PipeT< Timer *, 32U >::Write().

Here is the caller graph for this function:

Member Data Documentation

m_buffer

template<typename T, size_t N>

T stk::sync::PipeT< T, N >::m_buffer[N]

private

static storage for FIFO elements

Definition at line 1356 of file stk_sync_pipe.h.

m_count

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::m_count

private

current number of elements stored in the pipe

Definition at line 1359 of file stk_sync_pipe.h.

m_cv_not_empty

template<typename T, size_t N>

ConditionVariable stk::sync::PipeT< T, N >::m_cv_not_empty

private

condition variable signaled when the pipe is no longer empty

Definition at line 1360 of file stk_sync_pipe.h.

m_cv_not_full

template<typename T, size_t N>

ConditionVariable stk::sync::PipeT< T, N >::m_cv_not_full

private

condition variable signaled when the pipe is no longer full

Definition at line 1361 of file stk_sync_pipe.h.

m_head

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::m_head

private

index of the next slot to be written (producer)

Definition at line 1357 of file stk_sync_pipe.h.

m_tail

template<typename T, size_t N>

size_t stk::sync::PipeT< T, N >::m_tail

private

index of the next slot to be read (consumer)

Definition at line 1358 of file stk_sync_pipe.h.

---

The documentation for this class was generated from the following file:

• stk_sync_pipe.h
