stk::pthread::PthreadTask Class Reference

Inheritance diagram for stk::pthread::PthreadTask:

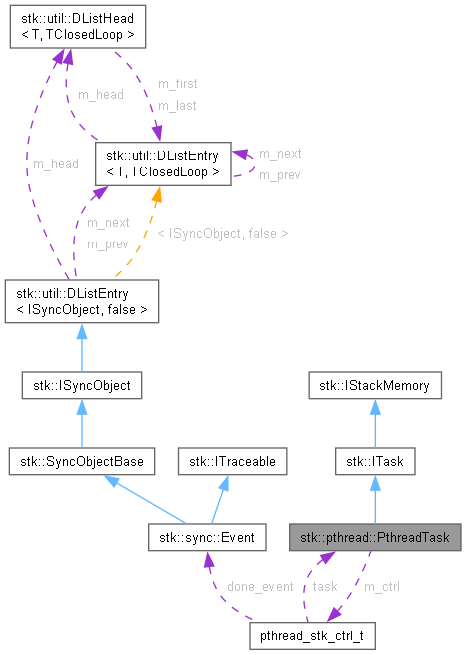

Collaboration diagram for stk::pthread::PthreadTask:

Public Member Functions
	PthreadTask ()
STK_VIRT_DTOR	~PthreadTask ()=default
	Destructor.
void	Initialize (pthread_stk_ctrl_t *ctrl, stk_word_t *stack, size_t stack_size, EAccessMode mode)
EAccessMode	GetAccessMode () const override
	Get pointer to the stack memory.
int32_t	GetWeight () const override
	Get static base weight of the task.
const char *	GetTraceName () const override
	Get task trace name set by application.
const Word *	GetStack () const override
	Get pointer to the stack memory.
size_t	GetStackSize () const override
	Get number of elements of the stack memory array.
virtual void	OnDeadlineMissed (uint32_t duration)
	Called by the scheduler if deadline of the task is missed when Kernel is operating in Hard Real-Time mode (see stk::KERNEL_HRT).
virtual Timeout	GetTimeSlice () const
	Get time-slice quantum of the task (ticks). KERNEL_TIMESLICE only.
virtual size_t	GetStackSpace () const
	Get available stack space.

Private Member Functions
	STK_NONCOPYABLE_CLASS (PthreadTask)
void	Run () override
	Entry point of the user task.
void	OnExit () override
	Called by the kernel before removal from the scheduling (see stk::KERNEL_DYNAMIC).

Private Attributes
pthread_stk_ctrl_t *	m_ctrl
stk_word_t *	m_stack
size_t	m_stack_size
EAccessMode	m_mode

Detailed Description

Definition at line 70 of file stk_c_pthread.cpp.

Constructor & Destructor Documentation

PthreadTask()

stk::pthread::PthreadTask::PthreadTask ( )

inlineexplicit

Definition at line 73 of file stk_c_pthread.cpp.

                           : m_ctrl(nullptr), m_stack(nullptr), m_stack_size(0U), m_mode(ACCESS_USER)
    {}

References stk::ACCESS_USER, m_ctrl, m_mode, m_stack, and m_stack_size.

Referenced by STK_NONCOPYABLE_CLASS().

Here is the caller graph for this function:

~PthreadTask()

STK_VIRT_DTOR stk::pthread::PthreadTask::~PthreadTask ( )

default

Destructor.

Note

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

References STK_VIRT_DTOR.

Member Function Documentation

GetAccessMode()

EAccessMode stk::pthread::PthreadTask::GetAccessMode ( ) const

inlineoverridevirtual

Get pointer to the stack memory.

Note

Optional. ARM TrustZone only.

Returns

Pointer to the Secure stack memory.

Get up to (STK_MPU_TASK_REGIONS - 1) application-defined MPU regions for this task.

When STK_MPU_STACK_GUARD is enabled, each task owns STK_MPU_TASK_REGIONS (2, 4, 6, 8, 12 or 16, see STK_MPU_TASK_REGIONS) hardware MPU region slots. Slot 0 is always the automatic stack guard, computed by the driver from the task's own stack memory (see IStackMemory::GetStack/GetStackSize). This hook supplies the remaining STK_MPU_TASK_REGIONS-1 slots, letting an application additionally sandbox a task to e.g. a private data buffer, a specific peripheral block, or a shared IPC region - on top of its stack guard.

Returns

Pointer to a constant MpuRegionList containing up to (STK_MPU_TASK_REGIONS - 1) region descriptors, or nullptr if no extra task regions are configured. Array element i is applied at task-relative region index i +1 (i.e. the slots following the stack guard).

Note

Optional. Only consulted when STK_MPU_STACK_GUARD is enabled; a no-op on platforms/builds without MPU stack-guard support.

Read once, when the task is bound via Kernel::AddTask() (through IPlatform::InitStack()), not re-evaluated on every context switch. The underlying MpuRegionList instance referenced by the returned pointer must remain valid (e.g. a static const instance); a stack-local temporary is invalid once this function returns.

Warning

An element count greater than (STK_MPU_TASK_REGIONS - 1) is clamped by the driver (STK_ASSERT fires in debug builds); only the first STK_MPU_TASK_REGIONS-1 entries are ever applied.

class MyTask : public stk::Task<256, stk::ACCESS_USER>
{
    static constexpr stk::MpuRegionConfig s_extra_regions[] =
    {
        { .addr = MY_BUFFER_ADDR, .size = MY_BUFFER_SIZE,
          .access_perm = stk::hw::mpu::ACCESS_FULL,
          .mem_type    = stk::hw::mpu::TYPE_NORMAL_CACHEABLE,
          .exec        = stk::hw::mpu::EXEC_NEVER },
    };

    const stk::MpuRegionList *GetMpuRegions() const override
    {
        static const stk::MpuRegionList mpu_regions(s_extra_regions, 1U);
        return &mpu_regions;
    }

    void Run() override { ... }
};

See also

TaskMpu::Configure, IPlatform::InitStack, MpuRegionList

Get hardware access mode of the user task.

Implements stk::ITask.

Definition at line 90 of file stk_c_pthread.cpp.

{ return m_mode; }

References m_mode.

GetStack()

const Word * stk::pthread::PthreadTask::GetStack ( ) const

inlineoverridevirtual

Get pointer to the stack memory.

Implements stk::IStackMemory.

Definition at line 95 of file stk_c_pthread.cpp.

{ return m_stack; }

References m_stack.

GetStackSize()

size_t stk::pthread::PthreadTask::GetStackSize ( ) const

inlineoverridevirtual

Get number of elements of the stack memory array.

Implements stk::IStackMemory.

Definition at line 96 of file stk_c_pthread.cpp.

{ return m_stack_size; }

References m_stack_size.

GetStackSpace()

virtual size_t stk::IStackMemory::GetStackSpace ( ) const

inlinevirtualinherited

Get available stack space.

Returns

Number of elements of the stack memory array remaining on the stack (computed via the watermark pattern). Returns 0 if the stack has been fully used or the watermark STK_STACK_MEMORY_FILLER was overwritten.

Warning

Stack type: Bottom to Top (index[0]).

Definition at line 465 of file stk_common.h.

    {
        const ArrayView<const Word> stack(GetStack(), GetStackSize());
        const size_t total_size = stack.GetSize();
        size_t space = 0U;

        for (size_t i = 0U; i < total_size; ++i)
        {
            if (stack[i] == STK_STACK_MEMORY_FILLER)
            {
                space = i + 1U;
            }
            else
            {
                break; // terminate loop as soon as watermark ends
            }
        }

        return space;
    }

References stk::ArrayView< T >::GetSize(), GetStack(), GetStackSize(), and STK_STACK_MEMORY_FILLER.

Referenced by FrtosTask::GetStackHighWaterMark(), and osThreadGetStackSpace().

Here is the call graph for this function:

Here is the caller graph for this function:

GetTimeSlice()

virtual Timeout stk::ITask::GetTimeSlice ( ) const

inlinevirtualinherited

Get time-slice quantum of the task (ticks). KERNEL_TIMESLICE only.

Returns

Number of ticks the task may run before being rotated behind its same-priority peers, or NO_TIME_SLICE (default) to run until it blocks, yields or is preempted.

Note

Read once when the task is bound by Kernel::AddTask(). Use IKernelService::SetTimeSlice() to change it at run-time.

See also

stk::KERNEL_TIMESLICE, IKernelService::SetTimeSlice

Reimplemented in anonymous_namespace{threadx_stk.cpp}::StkThread, and anonymous_namespace{threadx_stk.cpp}::StkTimerThread.

Definition at line 937 of file stk_common.h.

{ return NO_TIME_SLICE; }

References stk::NO_TIME_SLICE.

Referenced by stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::Bind().

Here is the caller graph for this function:

GetTraceName()

const char * stk::pthread::PthreadTask::GetTraceName ( ) const

inlineoverridevirtual

Get task trace name set by application.

Returns

Null-terminated name string, or NULL if unused.

Note

Used for debugging and tracing only (e.g. SEGGER SystemView). Kernel does not interpret this value.

Reimplemented from stk::ITask.

Definition at line 92 of file stk_c_pthread.cpp.

{ return "pthread"; }

GetWeight()

int32_t stk::pthread::PthreadTask::GetWeight ( ) const

inlineoverridevirtual

Get static base weight of the task.

Returns

Static weight value of the task (must be non-zero, positive 24-bit number).

See also

SwitchStrategyFixedPriority, SwitchStrategySmoothWeightedRoundRobin, IKernelTask::GetWeight, IKernelService::InheritWeight, IKernelService::RestoreWeight

Reimplemented from stk::ITask.

Definition at line 91 of file stk_c_pthread.cpp.

{ return DEFAULT_WEIGHT; }

References stk::DEFAULT_WEIGHT.

Initialize()

void stk::pthread::PthreadTask::Initialize ( pthread_stk_ctrl_t * ctrl, stk_word_t * stack, size_t stack_size, EAccessMode mode )

inline

Definition at line 81 of file stk_c_pthread.cpp.

    {
        m_ctrl       = ctrl;
        m_stack      = stack;
        m_stack_size = stack_size;
        m_mode       = mode;
    }

References m_ctrl, m_mode, m_stack, and m_stack_size.

Referenced by pthread_create().

Here is the caller graph for this function:

OnDeadlineMissed()

virtual void stk::ITask::OnDeadlineMissed ( uint32_t duration )

inlinevirtualinherited

Called by the scheduler if deadline of the task is missed when Kernel is operating in Hard Real-Time mode (see stk::KERNEL_HRT).

Parameters

[in]

duration

Elapsed active time in ticks at the point the deadline was detected. Always greater than the task's configured deadline (ticks).

Note

Optional handler. Use it for fault logging.

After this call returns, IPlatform::ProcessHardFault() is invoked and the system enters a safe state. This function should not attempt to recover scheduling.

Reimplemented in anonymous_namespace{threadx_stk.cpp}::StkThread, anonymous_namespace{threadx_stk.cpp}::StkTimerThread, FrtosTask, stk::time::TimerHost::TimerWorkerTask, and StkThread.

Definition at line 911 of file stk_common.h.

{ STK_UNUSED(duration); }

References STK_UNUSED.

OnExit()

void stk::pthread::PthreadTask::OnExit ( )

overrideprivatevirtual

Called by the kernel before removal from the scheduling (see stk::KERNEL_DYNAMIC).

Note

The task's stack is no longer in use but the ITask object itself is still valid.

The default no-op implementation is sufficient for detached tasks. Override to implement join semantics (signal a waiting joiner).

Called in kernel/tick context - keep it short. ISR-safe primitives only (e.g. stk::sync::Semaphore::Signal(), stk::sync::EventFlags::Set()).

KERNEL_DYNAMIC only. Never called in KERNEL_STATIC mode.

Reimplemented from stk::ITask.

Definition at line 570 of file stk_c_pthread.cpp.

{
    // Kernel context: no blocking calls. This is the last time the kernel touches
    // this task object; after the flag is set the control block may be recycled.
    const CsLock cs_;
    m_ctrl->exited = true;
}

References m_ctrl.

Run()

void stk::pthread::PthreadTask::Run ( )

overrideprivatevirtual

Entry point of the user task.

Note

Called by the Kernel when the task is scheduled for execution. Implement this method with the task's main logic.

Warning

If Kernel is configured as KERNEL_STATIC, the body must contain an infinite loop.

void Run( override)
{
    while (true)
    {
        // task logic here
    }
}

Implements stk::ITask.

Definition at line 545 of file stk_c_pthread.cpp.

{
    ThreadCtrl *const ctrl = m_ctrl;

    hw::SetTlsPtr(static_cast<void *>(ctrl));

    void *const result = ctrl->start_routine(ctrl->arg);

    RunKeyDestructors(ctrl);

    {
        const CsLock cs_;

        ctrl->retval   = result;
        ctrl->finished = true;
    }

    (void)ctrl->done_event->Set();
    MaybeReap(ctrl);

    // Natural return: STK tears the task down and calls OnExit(). A joiner (or the
    // reaper, for detached threads) reclaims *our* resources (stack, control block)
    // only after OnExit() has set ctrl->exited.
}

References pthread_stk_ctrl_t::arg, pthread_stk_ctrl_t::done_event, pthread_stk_ctrl_t::finished, m_ctrl, stk::pthread::MaybeReap(), pthread_stk_ctrl_t::retval, stk::pthread::RunKeyDestructors(), stk::sync::Event::Set(), and pthread_stk_ctrl_t::start_routine.

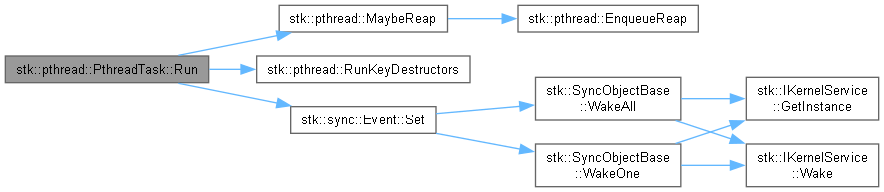

Here is the call graph for this function:

STK_NONCOPYABLE_CLASS()

stk::pthread::PthreadTask::STK_NONCOPYABLE_CLASS ( PthreadTask )

private

References PthreadTask().

Here is the call graph for this function:

Member Data Documentation

m_ctrl

pthread_stk_ctrl_t* stk::pthread::PthreadTask::m_ctrl

private

Definition at line 104 of file stk_c_pthread.cpp.

Referenced by Initialize(), OnExit(), PthreadTask(), and Run().

m_mode

EAccessMode stk::pthread::PthreadTask::m_mode

private

Definition at line 107 of file stk_c_pthread.cpp.

Referenced by GetAccessMode(), Initialize(), and PthreadTask().

m_stack

stk_word_t* stk::pthread::PthreadTask::m_stack

private

Definition at line 105 of file stk_c_pthread.cpp.

Referenced by GetStack(), Initialize(), and PthreadTask().

m_stack_size

size_t stk::pthread::PthreadTask::m_stack_size

private

Definition at line 106 of file stk_c_pthread.cpp.

Referenced by GetStackSize(), Initialize(), and PthreadTask().

---

The documentation for this class was generated from the following file:

• stk_c_pthread.cpp
