stk::sync::MessageQueue Class Reference

Fixed-capacity, fixed-message-size FIFO queue for inter-task communication. More...

#include <stk_sync_msgqueue.h>

Inheritance diagram for stk::sync::MessageQueue:

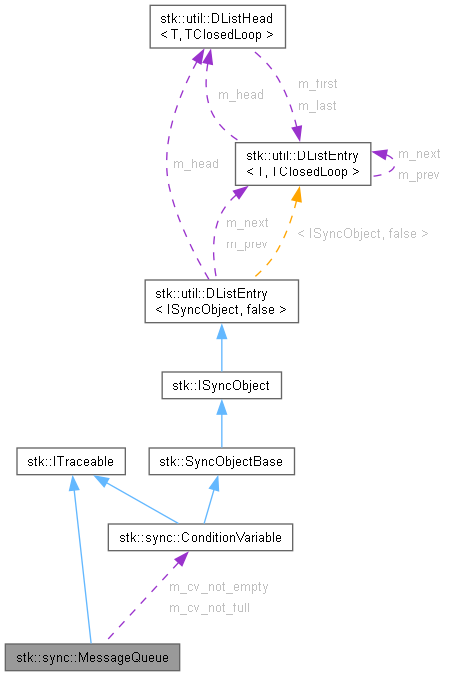

Collaboration diagram for stk::sync::MessageQueue:

Public Member Functions
	MessageQueue (uint8_t *buf, size_t capacity, size_t msg_size)
	Constructor.
	~MessageQueue ()=default
	Destructor.

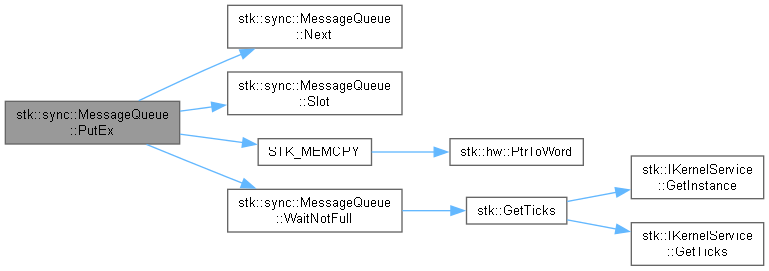

EWaitResult	PutEx (const void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Put a message into the back of the queue (FIFO order), preserving the full wait outcome.
bool	Put (const void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Put a message into the back of the queue (FIFO order).
bool	TryPut (const void *msg_ptr)
	Attempt to put a message into the back of the queue without blocking.

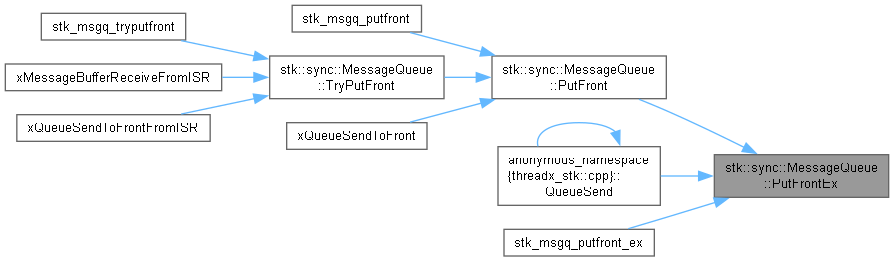

EWaitResult	PutFrontEx (const void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Put a message into the front of the queue (LIFO / priority-insert order), preserving the full wait outcome.

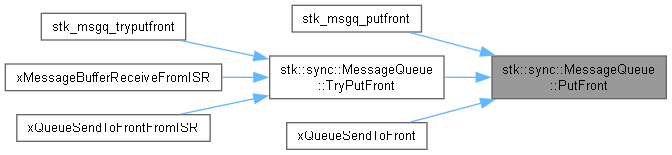

bool	PutFront (const void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Put a message into the front of the queue (LIFO / priority-insert order).
bool	TryPutFront (const void *msg_ptr)
	Attempt to put a message into the front of the queue without blocking.
EWaitResult	GetEx (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Get a message from the queue, preserving the full wait outcome.
bool	Get (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Get a message from the queue.
bool	TryGet (void *msg_ptr)
	Attempt to get a message from the queue without blocking.

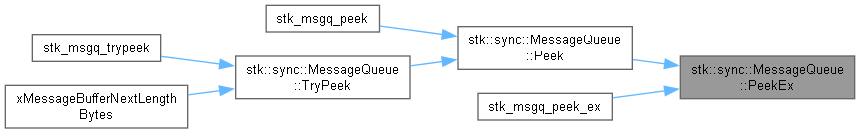

EWaitResult	PeekEx (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Peek at the next message to be delivered without removing it, preserving the full wait outcome.
bool	Peek (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Peek at the next message to be delivered (the one Get() returns next) without removing it.
bool	TryPeek (void *msg_ptr)
	Attempt to peek at the next message without blocking.
EWaitResult	PeekFrontEx (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Peek at the front of the queue without removing it, preserving the full wait outcome.
bool	PeekFront (void *msg_ptr, Timeout timeout_ticks=WAIT_INFINITE)
	Peek at the front of the queue (the message Get() returns next) without removing it.
bool	TryPeekFront (void *msg_ptr)
	Attempt to peek at the front message without blocking.
void	Reset ()
	Discard all messages and reset the queue to the empty state.
size_t	GetCapacity () const
	Get the maximum number of messages the queue can hold.
size_t	GetMsgSize () const
	Get the size of each message in bytes.
size_t	GetCount () const
	Get the current number of messages in the queue.
size_t	GetSpace () const
	Get the number of free slots currently available.
uint8_t *	GetBuffer ()
	Get pointer to the message buffer.
bool	IsEmpty () const
	Check whether the queue is currently empty.
bool	IsFull () const
	Check whether the queue is currently full.

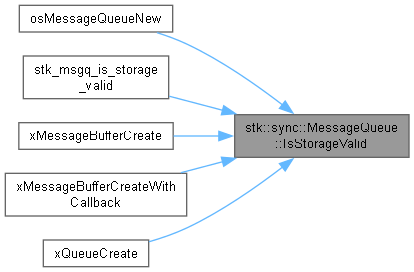

bool	IsStorageValid () const
	Verify that the backing storage is valid and the pool is ready for use.
void	SetTraceName (const char *name)
	Set name.
const char *	GetTraceName () const
	Get name.

Static Public Attributes
static const size_t	CAPACITY_MAX = 0xFFFEU
	Max capacity supported (number of messages).

Private Member Functions
	MessageQueue (const MessageQueue &)=delete
MessageQueue &	operator= (const MessageQueue &)=delete
uint8_t *	Slot (size_t idx) const
size_t	Next (size_t idx) const
size_t	Prev (size_t idx) const
EWaitResult	WaitNotFull (IMutex &cs, Timeout timeout_ticks)
EWaitResult	WaitNotEmpty (IMutex &cs, Timeout timeout_ticks)

Private Attributes
uint8_t *	m_buffer
	flat byte ring-buffer: capacity slots of msg_size bytes each
const size_t	m_capacity
	maximum number of messages stored in the queue
const size_t	m_msg_size
	size of each message in bytes
size_t	m_count
	current number of messages stored in the queue
size_t	m_head
	write index (next slot to be written by Put())
size_t	m_tail
	read index (next slot to be read by Get())
ConditionVariable	m_cv_not_empty
	signaled by Put() when the queue transitions from empty
ConditionVariable	m_cv_not_full
	signaled by Get()/Reset() when the queue is no longer full

Detailed Description

Fixed-capacity, fixed-message-size FIFO queue for inter-task communication.

MessageQueue provides a synchronized ring-buffer that transports opaque, fixed-size byte messages between tasks. It follows the following blocking semantics:

• Put() blocks if the queue is full until space becomes available or the timeout expires.
• Get() blocks if the queue is empty until a message is produced or the timeout expires.

Like stk::sync::Pipe (and unlike the type-safe stk::sync::PipeT), MessageQueue is parameterised on a byte count (MSG) rather than on an element type. This makes it suitable for passing heterogeneous or C-ABI structs without requiring the message type to be copyable via the C++ assignment operator. The message payload is always copied with memcpy. In addition to the plain FIFO operations it supports front insertion (PutFront()) and non-destructive reads (Peek()).

// Caller owns and provides the buffer (e.g. from a static pool):
struct SensorMsg { uint32_t timestamp_ms; int16_t value; };
static uint8_t s_buf[8 * sizeof(SensorMsg)];
stk::sync::MessageQueue g_SensorQ(s_buf, 8, sizeof(SensorMsg));

Note

The caller is responsible for ensuring that buf remains valid for the entire lifetime of the queue object.

Maximum number of messages (capacity) must not exceed CAPACITY_MAX.

Message size (msg_size) must be at least 1.

The boolean calls (Put(), PutFront(), Get(), Peek(), PeekFront()) collapse a timeout and a cancellation (IKernel::CancelTaskWait()) into the same failure result. Use the *Ex() variants (PutEx(), PutFrontEx(), GetEx(), PeekEx(), PeekFrontEx()) if the caller needs to tell them apart.

See also

MessageQueueT, Pipe, PipeT, ConditionVariable, Semaphore

Note

Only available when kernel is compiled with KERNEL_SYNC mode enabled.

Examples

D:/SVN/private/stk/interop/c/include/stk_c.h.

Definition at line 62 of file stk_sync_msgqueue.h.

Constructor & Destructor Documentation

MessageQueue() [1/2]

stk::sync::MessageQueue::MessageQueue ( uint8_t * buf, size_t capacity, size_t msg_size )

inlineexplicit

Constructor.

Parameters

[in]	buf	Pointer to the externally-allocated storage. Must be at least capacity * msg_size bytes.
[in]	capacity	Maximum number of messages [1, CAPACITY_MAX].
[in]	msg_size	Size of each message in bytes (>= 1).

Definition at line 416 of file stk_sync_msgqueue.h.

: m_buffer(buf),
  m_capacity(capacity),
  m_msg_size(msg_size),
  m_count(0U),
  m_head(0U),
  m_tail(0U)
{
    STK_ASSERT(buf      != nullptr);
    STK_ASSERT(capacity >= 1U);
    STK_ASSERT(capacity <= CAPACITY_MAX);
    STK_ASSERT(msg_size >= 1U);
}

References CAPACITY_MAX, m_buffer, m_capacity, m_count, m_head, m_msg_size, m_tail, and STK_ASSERT.

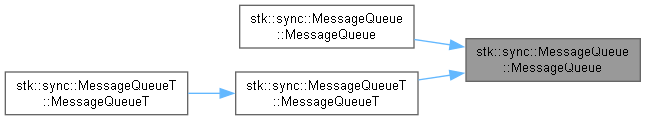

Referenced by MessageQueue(), and stk::sync::MessageQueueT< N, MSG >::MessageQueueT().

Here is the caller graph for this function:

~MessageQueue()

stk::sync::MessageQueue::~MessageQueue ( )

default

Destructor.

Note

If tasks are still waiting at destruction time it is considered a logical error (dangling waiters). An assertion is triggered in debug builds via the ConditionVariable destructors.

MISRA deviation: [STK-DEV-005] Rule 10-3-2.

References STK_VIRT_DTOR, and stk::WAIT_INFINITE.

Referenced by tx_queue_delete().

Here is the caller graph for this function:

MessageQueue() [2/2]

stk::sync::MessageQueue::MessageQueue ( const MessageQueue & )

privatedelete

References MessageQueue().

Here is the call graph for this function:

Member Function Documentation

Get()

bool stk::sync::MessageQueue::Get ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Get a message from the queue.

Copies msg_size bytes from the oldest slot in the ring buffer into the buffer pointed to by msg_ptr. If the queue is empty the calling task is suspended until a message is produced or the timeout expires.

Parameters

[out]	msg_ptr	Destination buffer for the retrieved message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

true if a message was successfully retrieved, false otherwise (timeout, cancellation or NO_WAIT on an empty queue). Use GetEx() to tell these apart.

Definition at line 204 of file stk_sync_msgqueue.h.

    {
        return (GetEx(msg_ptr, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

References GetEx(), stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by stk_msgq_get(), TryGet(), xMessageBufferReceive(), and xQueueSelectFromSet().

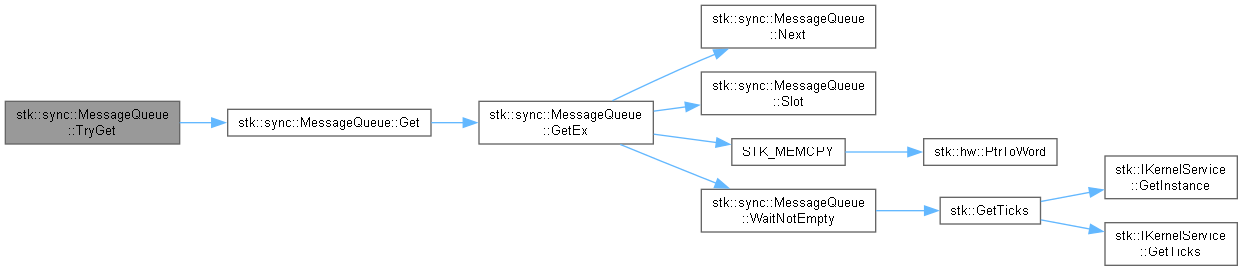

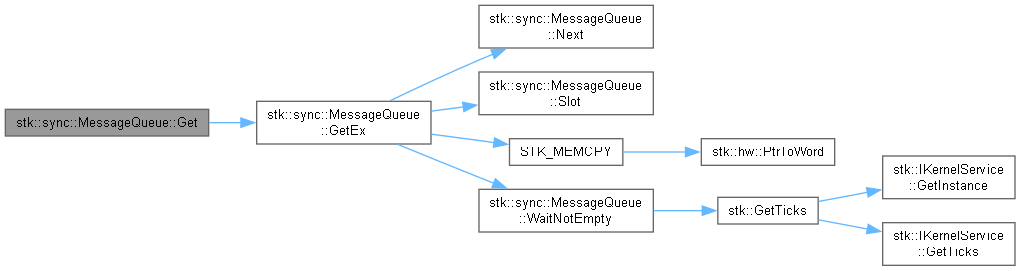

Here is the call graph for this function:

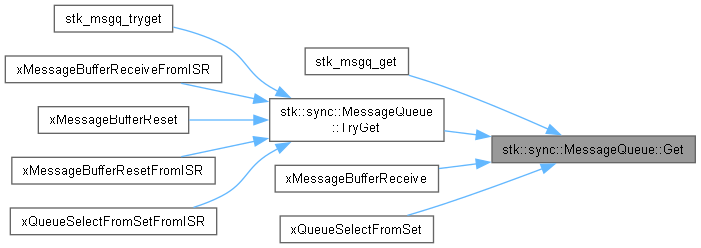

Here is the caller graph for this function:

GetBuffer()

uint8_t * stk::sync::MessageQueue::GetBuffer ( )

inline

Get pointer to the message buffer.

Returns

Pointer to the beginning of the message buffer.

Note

ISR-safe.

Definition at line 355 of file stk_sync_msgqueue.h.

{ return m_buffer; }

References m_buffer.

Referenced by stk_msgq_get_buffer().

Here is the caller graph for this function:

GetCapacity()

size_t stk::sync::MessageQueue::GetCapacity ( ) const

inline

Get the maximum number of messages the queue can hold.

Returns

Construction-time capacity.

Note

ISR-safe.

Definition at line 330 of file stk_sync_msgqueue.h.

{ return m_capacity; }

References m_capacity.

Referenced by osMessageQueueGetCapacity(), and stk_msgq_get_capacity().

Here is the caller graph for this function:

GetCount()

size_t stk::sync::MessageQueue::GetCount ( ) const

inline

Get the current number of messages in the queue.

Returns

Point-in-time snapshot of the message count. May be stale by the time the caller acts on it in a multi-task environment.

Note

ISR-safe on targets where a size_t-aligned read is atomic.

Definition at line 343 of file stk_sync_msgqueue.h.

{ return m_count; }

References m_count.

Referenced by osMessageQueueGetCount(), stk_msgq_get_count(), tx_queue_info_get(), uxQueueMessagesWaiting(), and uxQueueMessagesWaitingFromISR().

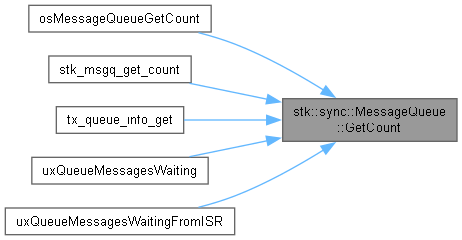

Here is the caller graph for this function:

GetEx()

EWaitResult stk::sync::MessageQueue::GetEx ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Get a message from the queue, preserving the full wait outcome.

Identical to Get(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[out]	msg_ptr	Destination buffer for the retrieved message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if a message was retrieved, WAIT_RESULT_TIMEOUT if no message became available before the timeout expired (or NO_WAIT was passed on an empty queue), WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if the kernel rejected the wait. Nothing is dequeued or copied on a non-signal result.

Definition at line 562 of file stk_sync_msgqueue.h.

{
    STK_ASSERT(msg_ptr != nullptr); // API contract: msg_ptr must not be null

    ScopedCriticalSection cs_;

    const EWaitResult result = WaitNotEmpty(cs_, timeout_ticks);

    if (result == WAIT_RESULT_SIGNAL)
    {
        STK_MEMCPY(msg_ptr, Slot(m_tail), m_msg_size);
        m_tail = Next(m_tail);
        m_count--;

        m_cv_not_full.NotifyOne_CS();
    }

    return result;
}

References m_count, m_cv_not_full, m_msg_size, m_tail, Next(), Slot(), STK_ASSERT, STK_MEMCPY(), stk::WAIT_RESULT_SIGNAL, and WaitNotEmpty().

Referenced by Get(), and stk_msgq_get_ex().

Here is the call graph for this function:

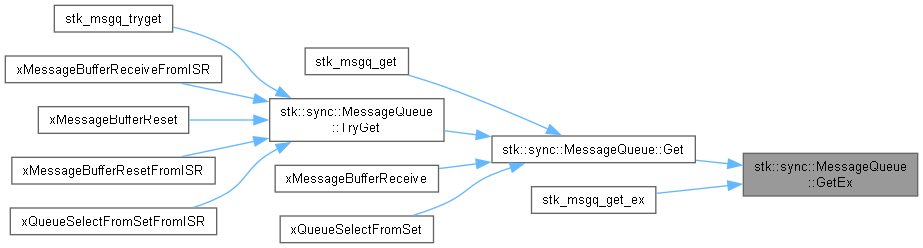

Here is the caller graph for this function:

GetMsgSize()

size_t stk::sync::MessageQueue::GetMsgSize ( ) const

inline

Get the size of each message in bytes.

Returns

Construction-time message size.

Note

ISR-safe.

Definition at line 336 of file stk_sync_msgqueue.h.

{ return m_msg_size; }

References m_msg_size.

Referenced by osMessageQueueGetMsgSize(), and stk_msgq_get_msg_size().

Here is the caller graph for this function:

GetSpace()

size_t stk::sync::MessageQueue::GetSpace ( ) const

inline

Get the number of free slots currently available.

Returns

Point-in-time snapshot of the free-slot count.

Note

ISR-safe.

Definition at line 349 of file stk_sync_msgqueue.h.

{ return (m_capacity - m_count); }

References m_capacity, and m_count.

Referenced by osMessageQueueGetSpace(), stk_msgq_get_space(), tx_queue_info_get(), and uxQueueSpacesAvailable().

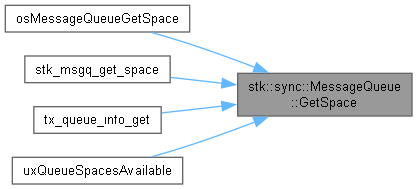

Here is the caller graph for this function:

GetTraceName()

const char * stk::ITraceable::GetTraceName ( ) const

inlineinherited

Get name.

Returns

Name string, or NULL if not set or if STK_SYNC_DEBUG_NAMES is 0.

Definition at line 582 of file stk_common.h.

    {
    #if STK_SYNC_DEBUG_NAMES
        return m_trace_name;
    #else
        return nullptr;
    #endif
    }

IsEmpty()

bool stk::sync::MessageQueue::IsEmpty ( ) const

inline

Check whether the queue is currently empty.

Returns

true if the queue contains no messages.

Note

ISR-safe.

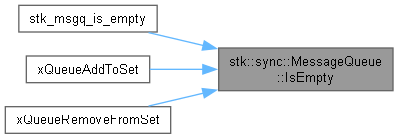

Definition at line 361 of file stk_sync_msgqueue.h.

{ return (m_count == 0U); }

References m_count.

Referenced by stk_msgq_is_empty(), xQueueAddToSet(), and xQueueRemoveFromSet().

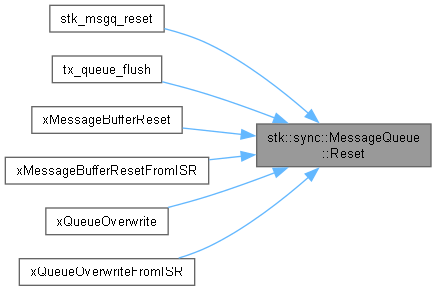

Here is the caller graph for this function:

IsFull()

bool stk::sync::MessageQueue::IsFull ( ) const

inline

Check whether the queue is currently full.

Returns

true if the queue contains capacity messages.

Note

ISR-safe.

Definition at line 367 of file stk_sync_msgqueue.h.

{ return (m_count == m_capacity); }

References m_capacity, and m_count.

Referenced by stk_msgq_is_full().

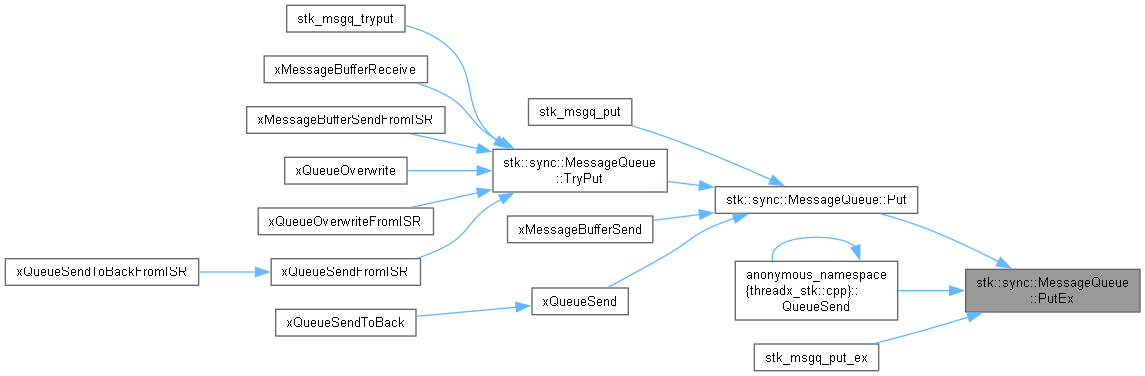

Here is the caller graph for this function:

IsStorageValid()

bool stk::sync::MessageQueue::IsStorageValid ( ) const

inline

Verify that the backing storage is valid and the pool is ready for use.

Always true for pools constructed with external storage. For heap-constructed queue, false if operator new failed. Must be checked after the heap constructor when operating without exceptions (the typical embedded configuration).

Returns

true if the queue is ready for use.

Note

ISR-safe.

Definition at line 377 of file stk_sync_msgqueue.h.

{ return (m_buffer != nullptr); }

References m_buffer.

Referenced by osMessageQueueNew(), stk_msgq_is_storage_valid(), xMessageBufferCreate(), xMessageBufferCreateWithCallback(), and xQueueCreate().

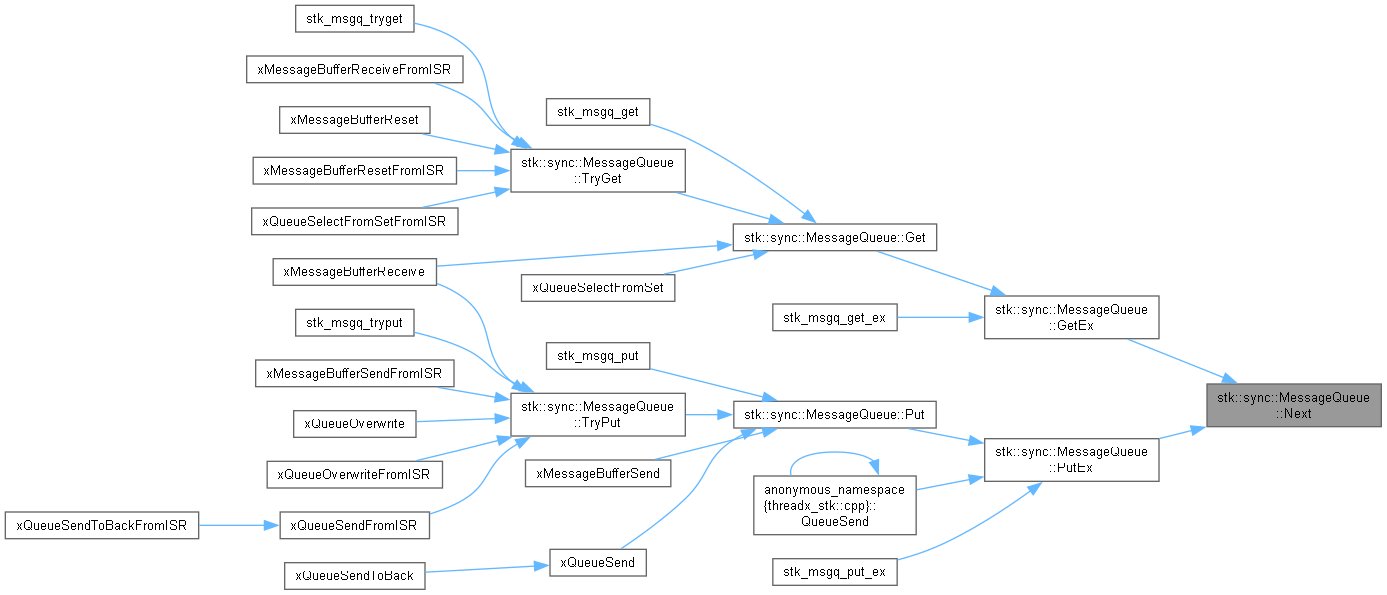

Here is the caller graph for this function:

Next()

size_t stk::sync::MessageQueue::Next ( size_t idx ) const

inlineprivate

Definition at line 386 of file stk_sync_msgqueue.h.

{ return (idx + 1U) % m_capacity; }

References m_capacity.

Referenced by GetEx(), and PutEx().

Here is the caller graph for this function:

operator=()

MessageQueue & stk::sync::MessageQueue::operator= ( const MessageQueue & )

privatedelete

Peek()

bool stk::sync::MessageQueue::Peek ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Peek at the next message to be delivered (the one Get() returns next) without removing it.

Copies msg_size bytes from the oldest slot in the ring buffer into the buffer pointed to by msg_ptr, leaving the message in place so that a subsequent Get() will return the same message. If the queue is empty the calling task is suspended until a message is produced or the timeout expires.

Parameters

[out]	msg_ptr	Destination buffer for the peeked message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

true if a message was successfully peeked, false otherwise (timeout, cancellation or NO_WAIT on an empty queue). Use PeekEx() to tell these apart.

Note

A successful peek hands the wake-up on to the next waiting task (if any), so a Get() waiter queued behind a Peek() waiter is not left blocked while a message is available.

See also

Get, TryPeek, PeekFront

Definition at line 252 of file stk_sync_msgqueue.h.

    {
        return (PeekEx(msg_ptr, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

References PeekEx(), stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by stk_msgq_peek(), and TryPeek().

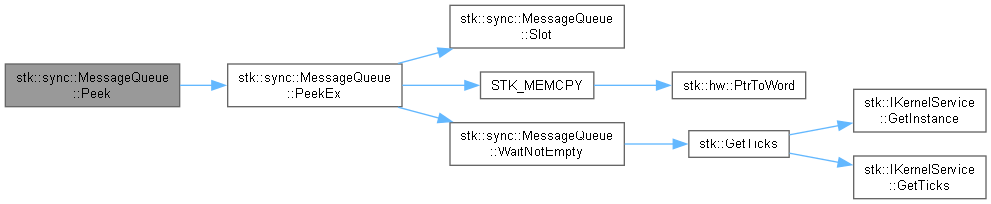

Here is the call graph for this function:

Here is the caller graph for this function:

PeekEx()

EWaitResult stk::sync::MessageQueue::PeekEx ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Peek at the next message to be delivered without removing it, preserving the full wait outcome.

Identical to Peek(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[out]	msg_ptr	Destination buffer for the peeked message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

Same values as GetEx(). Nothing is copied on a non-signal result.

Definition at line 586 of file stk_sync_msgqueue.h.

{
    STK_ASSERT(msg_ptr != nullptr); // API contract: msg_ptr must not be null

    ScopedCriticalSection cs_;

    const EWaitResult result = WaitNotEmpty(cs_, timeout_ticks);

    if (result == WAIT_RESULT_SIGNAL)
    {
        // copy from the tail slot without advancing the index or decrementing
        // the count, so the message remains available for the next Get()
        STK_MEMCPY(msg_ptr, Slot(m_tail), m_msg_size);

        // the message was not consumed: pass the wake-up on to the next waiter (if any),
        // otherwise a Get() waiter queued behind this Peek() would stay blocked although
        // a message is available (Put() notifies only one waiter)
        m_cv_not_empty.NotifyOne_CS();
    }

    return result;
}

References m_cv_not_empty, m_msg_size, m_tail, Slot(), STK_ASSERT, STK_MEMCPY(), stk::WAIT_RESULT_SIGNAL, and WaitNotEmpty().

Referenced by Peek(), and stk_msgq_peek_ex().

Here is the call graph for this function:

Here is the caller graph for this function:

PeekFront()

bool stk::sync::MessageQueue::PeekFront ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Peek at the front of the queue (the message Get() returns next) without removing it.

Copies msg_size bytes from the read slot (the one Get() would return next) into the buffer pointed to by msg_ptr, leaving the message in place. Because PutFront() inserts at the read slot, this is the most recently PutFront()-inserted message if one is still pending, otherwise the oldest Put() message. The behavior is identical to Peek(); this method exists for symmetry with PutFront(). If the queue is empty the calling task is suspended until a message is produced or the timeout expires.

Parameters

[out]	msg_ptr	Destination buffer for the peeked message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks= NO_WAIT, ISR-unsafe otherwise.

Returns

true if a message was successfully peeked, false otherwise (timeout, cancellation or NO_WAIT on an empty queue). Use PeekFrontEx() to tell these apart.

See also

PutFront, TryPeekFront, Peek

Definition at line 300 of file stk_sync_msgqueue.h.

    {
        return (PeekFrontEx(msg_ptr, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

References PeekFrontEx(), stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

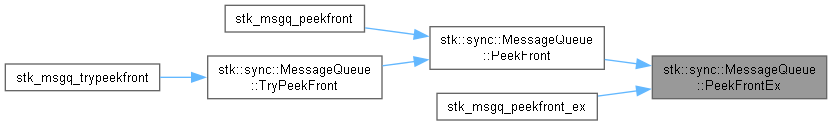

Referenced by stk_msgq_peekfront(), and TryPeekFront().

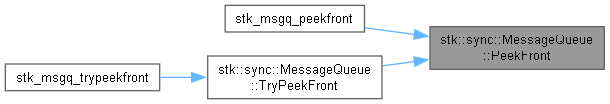

Here is the call graph for this function:

Here is the caller graph for this function:

PeekFrontEx()

EWaitResult stk::sync::MessageQueue::PeekFrontEx ( void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Peek at the front of the queue without removing it, preserving the full wait outcome.

Identical to PeekFront(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[out]	msg_ptr	Destination buffer for the peeked message (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a message (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

Same values as GetEx(). Nothing is copied on a non-signal result.

Definition at line 613 of file stk_sync_msgqueue.h.

{
    STK_ASSERT(msg_ptr != nullptr); // API contract: msg_ptr must not be null

    ScopedCriticalSection cs_;

    const EWaitResult result = WaitNotEmpty(cs_, timeout_ticks);

    if (result == WAIT_RESULT_SIGNAL)
    {
        // the front-inserted message is at m_tail (PutFront retreats m_tail then
        // writes, so the newly placed message is always at the current m_tail);
        // for a pure-Put queue this is equally correct: m_tail is the oldest slot
        STK_MEMCPY(msg_ptr, Slot(m_tail), m_msg_size);

        // the message was not consumed: pass the wake-up on to the next waiter (if any),
        // see PeekEx()
        m_cv_not_empty.NotifyOne_CS();
    }

    return result;
}

References m_cv_not_empty, m_msg_size, m_tail, Slot(), STK_ASSERT, STK_MEMCPY(), stk::WAIT_RESULT_SIGNAL, and WaitNotEmpty().

Referenced by PeekFront(), and stk_msgq_peekfront_ex().

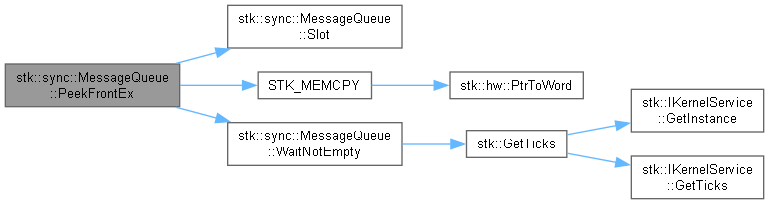

Here is the call graph for this function:

Here is the caller graph for this function:

Prev()

size_t stk::sync::MessageQueue::Prev ( size_t idx ) const

inlineprivate

Definition at line 390 of file stk_sync_msgqueue.h.

{ return (idx == 0U) ? (m_capacity - 1U) : (idx - 1U); }

References m_capacity.

Referenced by PutFrontEx().

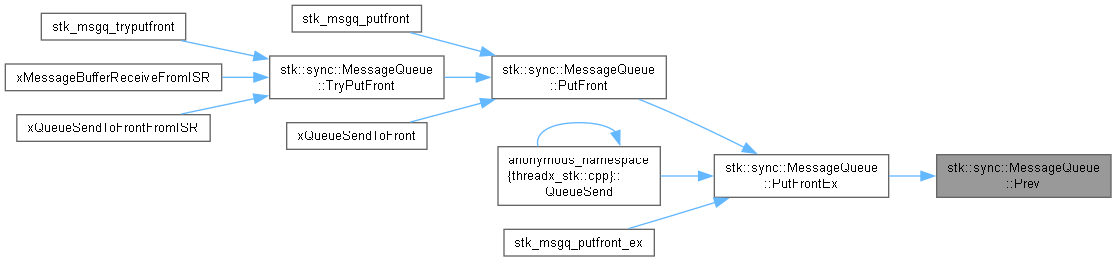

Here is the caller graph for this function:

Put()

bool stk::sync::MessageQueue::Put ( const void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Put a message into the back of the queue (FIFO order).

Copies msg_size bytes from msg_ptr into the next available slot in the ring buffer. If the queue is full the calling task is suspended until space becomes available or the timeout expires.

Parameters

[in]	msg_ptr	Pointer to the message payload (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a free slot (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

true if the message was successfully enqueued, false otherwise (timeout, cancellation or NO_WAIT on a full queue). Use PutEx() to tell these apart.

Definition at line 114 of file stk_sync_msgqueue.h.

    {
        return (PutEx(msg_ptr, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

References PutEx(), stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by stk_msgq_put(), TryPut(), xMessageBufferSend(), and xQueueSend().

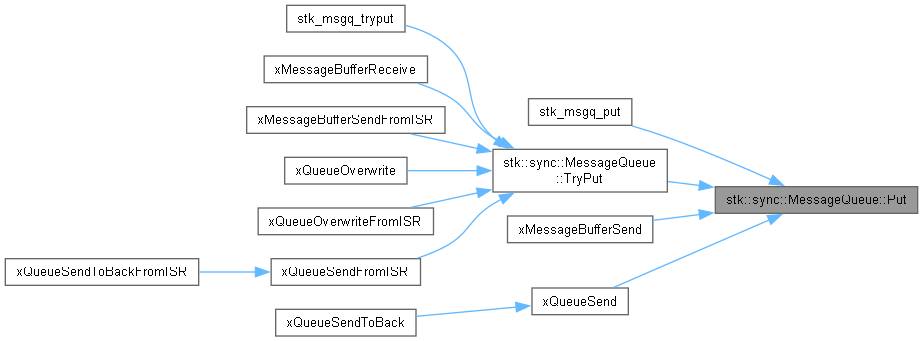

Here is the call graph for this function:

Here is the caller graph for this function:

PutEx()

EWaitResult stk::sync::MessageQueue::PutEx ( const void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Put a message into the back of the queue (FIFO order), preserving the full wait outcome.

Identical to Put(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[in]	msg_ptr	Pointer to the message payload (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a free slot (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

WAIT_RESULT_SIGNAL if the message was enqueued, WAIT_RESULT_TIMEOUT if no slot became available before the timeout expired (or NO_WAIT was passed on a full queue), WAIT_RESULT_CANCELED if the wait was cancelled via IKernel::CancelTaskWait(), WAIT_RESULT_FAIL if the kernel rejected the wait. Nothing is enqueued on a non-signal result.

Definition at line 509 of file stk_sync_msgqueue.h.

{
    STK_ASSERT(msg_ptr != nullptr);             // API contract: msg_ptr must not be null
    STK_ASSERT(m_count <= (CAPACITY_MAX - 1U)); // API contract: must not exceed capacity

    ScopedCriticalSection cs_;

    const EWaitResult result = WaitNotFull(cs_, timeout_ticks);

    if (result == WAIT_RESULT_SIGNAL)
    {
        STK_MEMCPY(Slot(m_head), msg_ptr, m_msg_size);
        m_head = Next(m_head);
        m_count++;

        m_cv_not_empty.NotifyOne_CS();
    }

    return result;
}

References CAPACITY_MAX, m_count, m_cv_not_empty, m_head, m_msg_size, Next(), Slot(), STK_ASSERT, STK_MEMCPY(), stk::WAIT_RESULT_SIGNAL, and WaitNotFull().

Referenced by Put(), anonymous_namespace{threadx_stk.cpp}::QueueSend(), and stk_msgq_put_ex().

Here is the call graph for this function:

Here is the caller graph for this function:

PutFront()

bool stk::sync::MessageQueue::PutFront ( const void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Put a message into the front of the queue (LIFO / priority-insert order).

Copies msg_size bytes from msg_ptr into the slot immediately before the current read pointer, making it the next message that Get() will return. If the queue is full the calling task is suspended until space becomes available or the timeout expires.

Parameters

[in]	msg_ptr	Pointer to the message payload (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a free slot (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

true if the message was successfully enqueued at the front, false otherwise (timeout, cancellation or NO_WAIT on a full queue). Use PutFrontEx() to tell these apart.

See also

Put, TryPutFront

Definition at line 157 of file stk_sync_msgqueue.h.

    {
        return (PutFrontEx(msg_ptr, timeout_ticks) == WAIT_RESULT_SIGNAL);
    }

References PutFrontEx(), stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by stk_msgq_putfront(), TryPutFront(), and xQueueSendToFront().

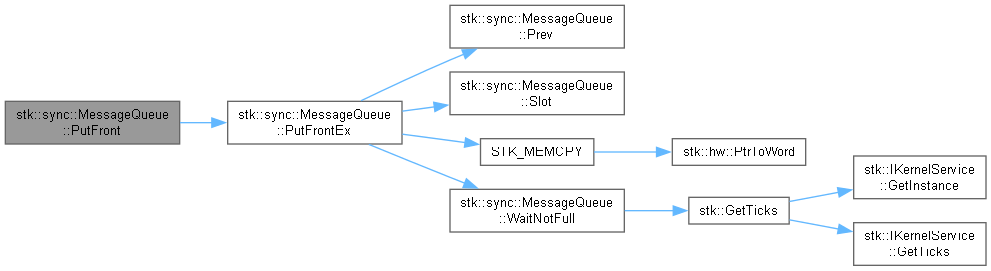

Here is the call graph for this function:

Here is the caller graph for this function:

PutFrontEx()

EWaitResult stk::sync::MessageQueue::PutFrontEx ( const void * msg_ptr, Timeout timeout_ticks = WAIT_INFINITE )

inline

Put a message into the front of the queue (LIFO / priority-insert order), preserving the full wait outcome.

Identical to PutFront(), except the caller gets the raw EWaitResult, so a cancellation (via IKernel::CancelTaskWait()) can be distinguished from a timeout.

Parameters

[in]	msg_ptr	Pointer to the message payload (must be at least msg_size bytes).
[in]	timeout_ticks	Maximum time to wait for a free slot (ticks). Use WAIT_INFINITE to block indefinitely, NO_WAIT for a non-blocking attempt.

Warning

ISR-safe only with timeout_ticks = NO_WAIT, ISR-unsafe otherwise.

Returns

Same values as PutEx(). Nothing is enqueued on a non-signal result.

Definition at line 534 of file stk_sync_msgqueue.h.

{
    STK_ASSERT(msg_ptr != nullptr);             // API contract: msg_ptr must not be null
    STK_ASSERT(m_count <= (CAPACITY_MAX - 1U)); // API contract: must not exceed capacity

    ScopedCriticalSection cs_;

    const EWaitResult result = WaitNotFull(cs_, timeout_ticks);

    if (result == WAIT_RESULT_SIGNAL)
    {
        // retreat the tail pointer to claim the slot that Get() would read next,
        // then write the message there; this makes the new message the head of
        // the logical sequence without touching m_head at all
        m_tail = Prev(m_tail);
        STK_MEMCPY(Slot(m_tail), msg_ptr, m_msg_size);
        m_count++;

        m_cv_not_empty.NotifyOne_CS();
    }

    return result;
}

References CAPACITY_MAX, m_count, m_cv_not_empty, m_msg_size, m_tail, Prev(), Slot(), STK_ASSERT, STK_MEMCPY(), stk::WAIT_RESULT_SIGNAL, and WaitNotFull().

Referenced by PutFront(), anonymous_namespace{threadx_stk.cpp}::QueueSend(), and stk_msgq_putfront_ex().

Here is the call graph for this function:

Here is the caller graph for this function:

Reset()

void stk::sync::MessageQueue::Reset ( )

inline

Discard all messages and reset the queue to the empty state.

Resets the head, tail and count to zero. Any tasks blocked in Put() are woken so they can re-evaluate and enqueue their messages into the now-empty queue.

Warning

Messages that were in the queue are silently discarded. Ensure no consumers depend on them before calling Reset().

ISR-safe.

Definition at line 640 of file stk_sync_msgqueue.h.

{
    const ScopedCriticalSection cs_;

    m_count = 0U;
    m_head  = 0U;
    m_tail  = 0U;

    // wake all blocked producers: the queue is now entirely empty
    m_cv_not_full.NotifyAll_CS();
}

References m_count, m_cv_not_full, m_head, and m_tail.

Referenced by stk_msgq_reset(), tx_queue_flush(), xMessageBufferReset(), xMessageBufferResetFromISR(), xQueueOverwrite(), and xQueueOverwriteFromISR().

Here is the caller graph for this function:

SetTraceName()

void stk::ITraceable::SetTraceName ( const char * name )

inlineinherited

Set name.

Parameters

[in]

name

Null-terminated string or NULL.

Note

If STK_SYNC_DEBUG_NAMES is 0 then calling this function has no effect.

Definition at line 570 of file stk_common.h.

    {
    #if STK_SYNC_DEBUG_NAMES
        m_trace_name = name;
    #else
        STK_UNUSED(name);
    #endif
    }

References STK_UNUSED.

Referenced by stk::memory::BlockMemoryPool::BlockMemoryPool(), stk::memory::BlockMemoryPool::BlockMemoryPool(), stk::memory::BytePool::BytePool(), stk::memory::BytePool::BytePool(), tx_block_pool_create(), tx_event_flags_create(), tx_mutex_create(), tx_queue_create(), and tx_semaphore_create().

Here is the caller graph for this function:

Slot()

uint8_t * stk::sync::MessageQueue::Slot ( size_t idx ) const

inlineprivate

Definition at line 383 of file stk_sync_msgqueue.h.

{ return m_buffer + (idx * m_msg_size); }

References m_buffer, and m_msg_size.

Referenced by GetEx(), PeekEx(), PeekFrontEx(), PutEx(), and PutFrontEx().

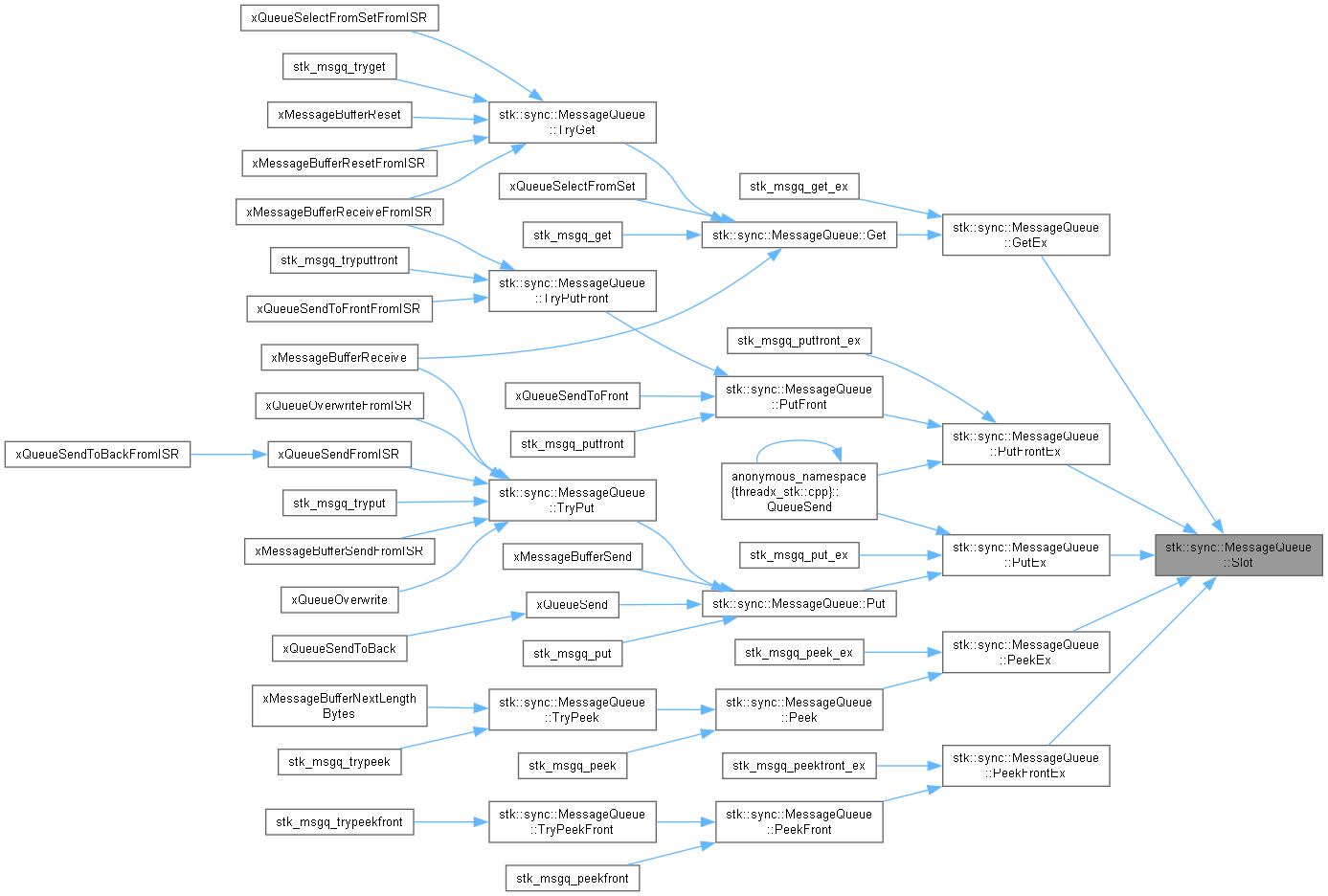

Here is the caller graph for this function:

TryGet()

bool stk::sync::MessageQueue::TryGet ( void * msg_ptr )

inline

Attempt to get a message from the queue without blocking.

Dequeues a message only if one is immediately available. Returns false instantly if the queue is empty.

Parameters

[out]

msg_ptr

Destination buffer for the retrieved message.

Warning

ISR-safe.

Returns

true if a message was retrieved, false if the queue was empty.

Definition at line 217 of file stk_sync_msgqueue.h.

{ return Get(msg_ptr, NO_WAIT); }

References Get(), and stk::NO_WAIT.

Referenced by stk_msgq_tryget(), xMessageBufferReceiveFromISR(), xMessageBufferReset(), xMessageBufferResetFromISR(), and xQueueSelectFromSetFromISR().

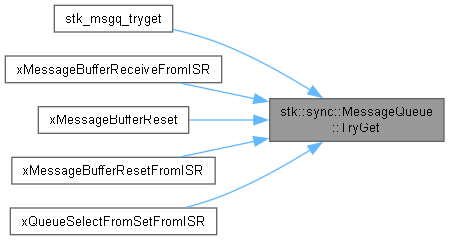

Here is the call graph for this function:

Here is the caller graph for this function:

TryPeek()

bool stk::sync::MessageQueue::TryPeek ( void * msg_ptr )

inline

Attempt to peek at the next message without blocking.

Copies the oldest message into msg_ptr only if one is immediately available. The message is not removed from the queue. Returns false instantly if the queue is empty.

Parameters

[out]

msg_ptr

Destination buffer for the peeked message.

Warning

ISR-safe.

Returns

true if a message was peeked, false if the queue was empty.

See also

Peek, TryGet

Definition at line 266 of file stk_sync_msgqueue.h.

{ return Peek(msg_ptr, NO_WAIT); }

References stk::NO_WAIT, and Peek().

Referenced by stk_msgq_trypeek(), and xMessageBufferNextLengthBytes().

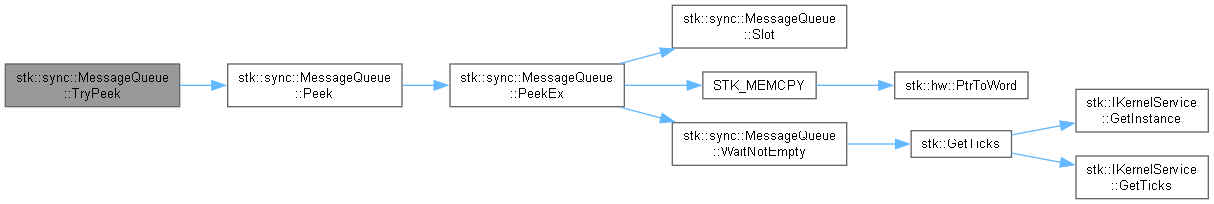

Here is the call graph for this function:

Here is the caller graph for this function:

TryPeekFront()

bool stk::sync::MessageQueue::TryPeekFront ( void * msg_ptr )

inline

Attempt to peek at the front message without blocking.

Copies the message that Get() would return next into msg_ptr only if one is immediately available. The message is not removed from the queue. Returns false instantly if the queue is empty.

Parameters

[out]

msg_ptr

Destination buffer for the peeked message.

Warning

ISR-safe.

Returns

true if a message was peeked, false if the queue was empty.

See also

PeekFront, TryPutFront

Definition at line 314 of file stk_sync_msgqueue.h.

{ return PeekFront(msg_ptr, NO_WAIT); }

References stk::NO_WAIT, and PeekFront().

Referenced by stk_msgq_trypeekfront().

Here is the call graph for this function:

Here is the caller graph for this function:

TryPut()

bool stk::sync::MessageQueue::TryPut ( const void * msg_ptr )

inline

Attempt to put a message into the back of the queue without blocking.

Enqueues the message only if a free slot is immediately available. Returns false instantly if the queue is full.

Parameters

[in]

msg_ptr

Pointer to the message payload.

Warning

ISR-safe.

Returns

true if the message was enqueued, false if the queue was full.

Definition at line 127 of file stk_sync_msgqueue.h.

{ return Put(msg_ptr, NO_WAIT); }

References stk::NO_WAIT, and Put().

Referenced by stk_msgq_tryput(), xMessageBufferReceive(), xMessageBufferSendFromISR(), xQueueOverwrite(), xQueueOverwriteFromISR(), and xQueueSendFromISR().

Here is the call graph for this function:

Here is the caller graph for this function:

TryPutFront()

bool stk::sync::MessageQueue::TryPutFront ( const void * msg_ptr )

inline

Attempt to put a message into the front of the queue without blocking.

Enqueues the message at the front only if a free slot is immediately available. Returns false instantly if the queue is full.

Parameters

[in]

msg_ptr

Pointer to the message payload.

Warning

ISR-safe.

Returns

true if the message was enqueued at the front, false if the queue was full.

See also

TryPut, PutFront

Definition at line 171 of file stk_sync_msgqueue.h.

{ return PutFront(msg_ptr, NO_WAIT); }

References stk::NO_WAIT, and PutFront().

Referenced by stk_msgq_tryputfront(), xMessageBufferReceiveFromISR(), and xQueueSendToFrontFromISR().

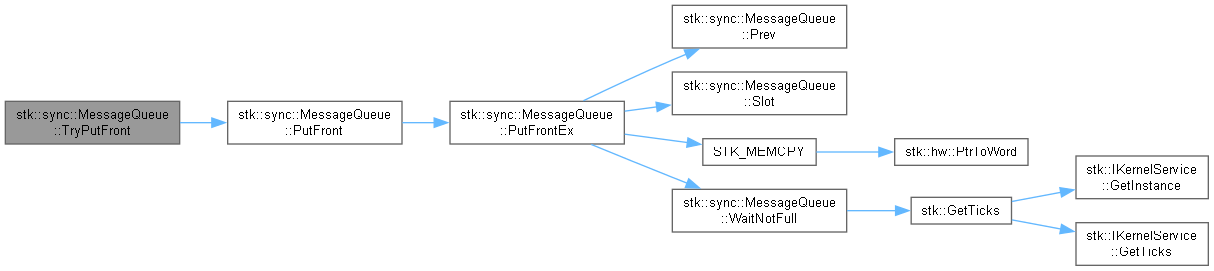

Here is the call graph for this function:

Here is the caller graph for this function:

WaitNotEmpty()

EWaitResult stk::sync::MessageQueue::WaitNotEmpty ( IMutex & cs, Timeout timeout_ticks )

inlineprivate

Definition at line 471 of file stk_sync_msgqueue.h.

{
    EWaitResult result = WAIT_RESULT_SIGNAL;

    const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

    // capture an absolute deadline once, before entering the wait loop; a different
    // consumer can steal the just-produced message (or drain the queue via Get()/TryGet())
    // between NotifyOne_CS() and this task re-acquiring the critical section (Mesa-style
    // wakeup, not a direct handoff), so re-passing the original timeout_ticks on each
    // retry would silently restart it
    const Timeout deadline = (timed_wait ?
        static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

    while (m_count == 0U)
    {
        Timeout remaining = deadline;
        if (timed_wait)
        {
            const Timeout now = static_cast<Timeout>(GetTicks());
            remaining = (now >= deadline ? NO_WAIT : (deadline - now));
        }

        result = m_cv_not_empty.WaitEx(cs, remaining);
        if (result != WAIT_RESULT_SIGNAL)
        {
            // timeout, cancellation or kernel failure
            break;
        }
    }

    return result;
}

References stk::GetTicks(), m_count, m_cv_not_empty, stk::NO_WAIT, stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by GetEx(), PeekEx(), and PeekFrontEx().

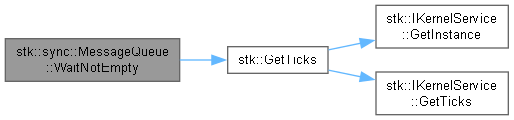

Here is the call graph for this function:

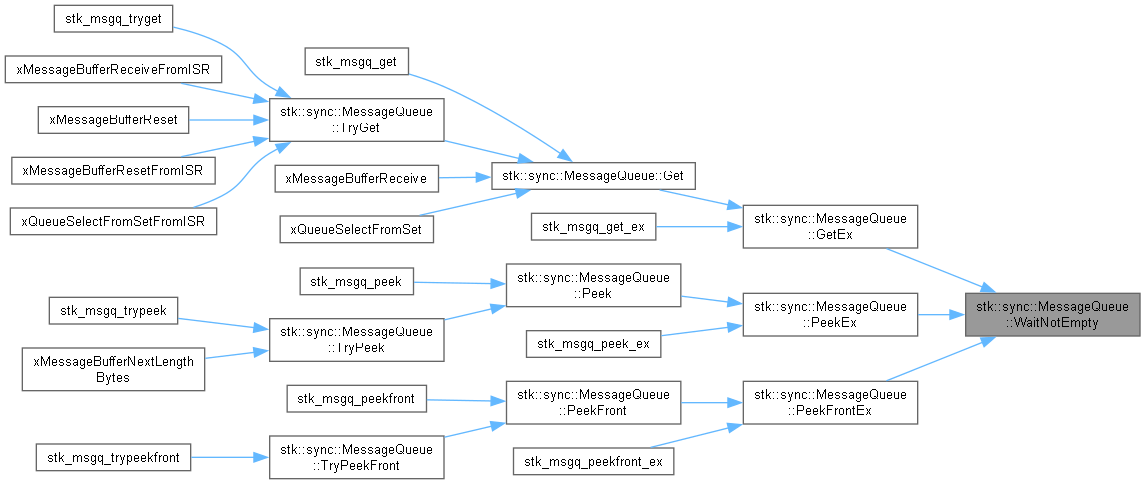

Here is the caller graph for this function:

WaitNotFull()

EWaitResult stk::sync::MessageQueue::WaitNotFull ( IMutex & cs, Timeout timeout_ticks )

inlineprivate

Definition at line 434 of file stk_sync_msgqueue.h.

{
    EWaitResult result = WAIT_RESULT_SIGNAL;

    const bool timed_wait = (timeout_ticks != WAIT_INFINITE) && (timeout_ticks != NO_WAIT);

    // capture an absolute deadline once, before entering the wait loop; a different
    // producer can steal the just-freed slot between NotifyOne_CS() and this task
    // re-acquiring the critical section (Mesa-style wakeup, not a direct handoff),
    // so re-passing the original timeout_ticks on each retry would silently restart it
    const Timeout deadline = (timed_wait ?
        static_cast<Timeout>(GetTicks() + timeout_ticks) : timeout_ticks);

    while (m_count == m_capacity)
    {
        Timeout remaining = deadline;
        if (timed_wait)
        {
            const Timeout now = static_cast<Timeout>(GetTicks());
            remaining = (now >= deadline ? NO_WAIT : (deadline - now));
        }

        result = m_cv_not_full.WaitEx(cs, remaining);
        if (result != WAIT_RESULT_SIGNAL)
        {
            // timeout, cancellation or kernel failure
            break;
        }
    }

    return result;
}

References stk::GetTicks(), m_capacity, m_count, m_cv_not_full, stk::NO_WAIT, stk::WAIT_INFINITE, and stk::WAIT_RESULT_SIGNAL.

Referenced by PutEx(), and PutFrontEx().

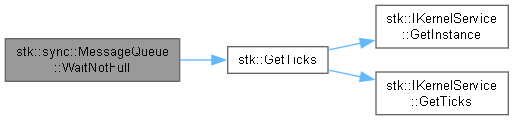

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

CAPACITY_MAX

const size_t stk::sync::MessageQueue::CAPACITY_MAX = 0xFFFEU

static

Max capacity supported (number of messages).

Definition at line 67 of file stk_sync_msgqueue.h.

Referenced by MessageQueue(), osMessageQueueNew(), PutEx(), PutFrontEx(), tx_queue_create(), xQueueCreate(), xQueueCreateSet(), and xQueueCreateStatic().

m_buffer

uint8_t* stk::sync::MessageQueue::m_buffer

private

flat byte ring-buffer: capacity slots of msg_size bytes each

Definition at line 402 of file stk_sync_msgqueue.h.

Referenced by GetBuffer(), IsStorageValid(), MessageQueue(), and Slot().

m_capacity

const size_t stk::sync::MessageQueue::m_capacity

private

maximum number of messages stored in the queue

Definition at line 403 of file stk_sync_msgqueue.h.

Referenced by GetCapacity(), GetSpace(), IsFull(), MessageQueue(), Next(), Prev(), and WaitNotFull().

m_count

size_t stk::sync::MessageQueue::m_count

private

current number of messages stored in the queue

Definition at line 405 of file stk_sync_msgqueue.h.

Referenced by GetCount(), GetEx(), GetSpace(), IsEmpty(), IsFull(), MessageQueue(), PutEx(), PutFrontEx(), Reset(), WaitNotEmpty(), and WaitNotFull().

m_cv_not_empty

ConditionVariable stk::sync::MessageQueue::m_cv_not_empty

private

signaled by Put() when the queue transitions from empty

Definition at line 408 of file stk_sync_msgqueue.h.

Referenced by PeekEx(), PeekFrontEx(), PutEx(), PutFrontEx(), and WaitNotEmpty().

m_cv_not_full

ConditionVariable stk::sync::MessageQueue::m_cv_not_full

private

signaled by Get()/Reset() when the queue is no longer full

Definition at line 409 of file stk_sync_msgqueue.h.

Referenced by GetEx(), Reset(), and WaitNotFull().

m_head

size_t stk::sync::MessageQueue::m_head

private

write index (next slot to be written by Put())

Definition at line 406 of file stk_sync_msgqueue.h.

Referenced by MessageQueue(), PutEx(), and Reset().

m_msg_size

const size_t stk::sync::MessageQueue::m_msg_size

private

size of each message in bytes

Definition at line 404 of file stk_sync_msgqueue.h.

Referenced by GetEx(), GetMsgSize(), MessageQueue(), PeekEx(), PeekFrontEx(), PutEx(), PutFrontEx(), and Slot().

m_tail

size_t stk::sync::MessageQueue::m_tail

private

read index (next slot to be read by Get())

Definition at line 407 of file stk_sync_msgqueue.h.

Referenced by GetEx(), MessageQueue(), PeekEx(), PeekFrontEx(), PutFrontEx(), and Reset().

---

The documentation for this class was generated from the following file:

• stk_sync_msgqueue.h
