Compiler and platform low-level definitions for STK. More...

#include <cstddef>
#include <cstdint>
#include <algorithm>
#include "stk_config.h"

Include dependency graph for stk_defs.h:

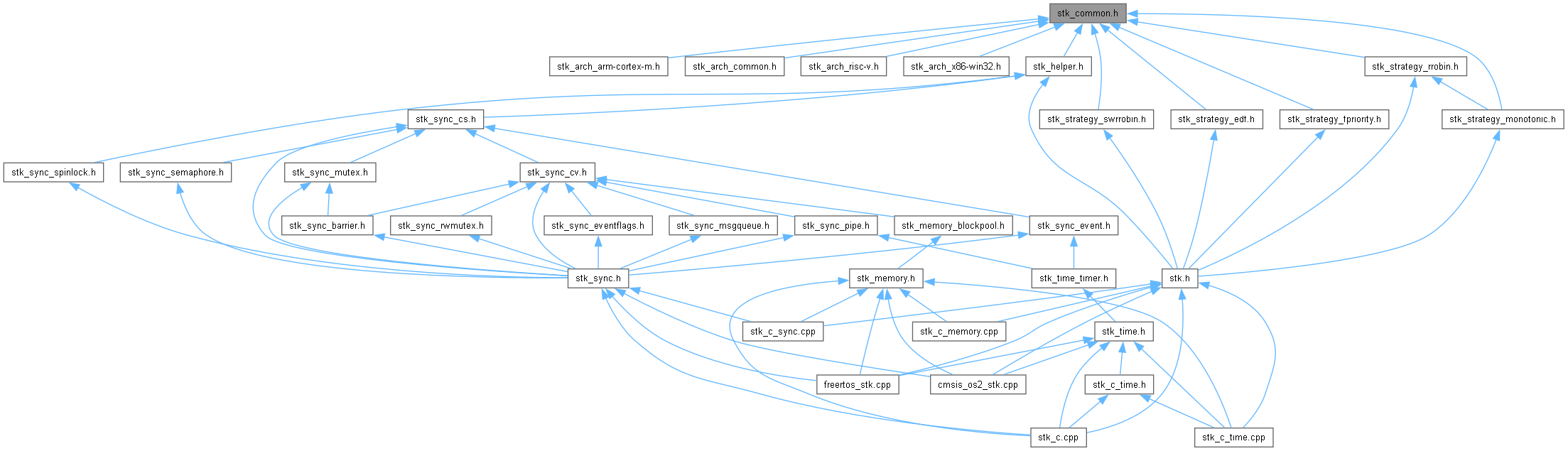

This graph shows which files directly or indirectly include this file:

Classes
struct	STK_ALLOCATE_COUNT< MODE, FLAG, ONTRUE, ONFALSE >
	Selects a static array element count at compile time based on a mode flag. More...

Namespaces
namespace	stk
	Namespace of STK package.
namespace	stk::util
	Internal utility namespace containing data structure helpers (linked lists, etc.) used by the kernel implementation. Not part of the public user API.

Macros
#define	STK_STRICT_COMPLIANCY (0)
	Allow the use of workarounds to make binary smaller and faster.
#define	STK_TICKLESS_USE_ARM_DWT (1)
	Use DWT timer of ARM Cortex-M for a precise tick calculation.
#define	STK_TICKLESS_TICKS_MAX (1000)
	Maximum number of kernel ticks the hardware timer may be suppressed in one tickless idle interval when STK_TICKLESS_IDLE=1. Default: 1000.
#define	STK_TLS (0)
	Enable per-task thread-local storage (TLS).
#define	STK_TLS_PREFER_REGISTER (0)
	Store the per-task TLS pointer in a dedicated CPU register instead of the stk::Stack::tls member, enabling single-instruction TLS access.
#define	STK_MPU (0)
	If 1, enable MPU support.
#define	STK_MPU_TASK_REGIONS (2)
	Number of hardware MPU region slots reserved per task (`stk::TaskMpu::NUM_REGIONS`).
#define	STK_STACK_NEEDS_TASK_ID (1)
	When defined as 1, the Stack descriptor (stk::Stack) carries a `tid` field used by the SEGGER SystemView trace back-end to identify tasks during context switches.
#define	STK_SYNC_DEBUG_NAMES (0)
	Enable debug names for synchronization primitives (mutexes, events, etc.) for debugging and tracing purposes.
#define	STK_VIRT_DTOR
	Makes destructors virtual and compliant to strict rules if STK_STRICT_COMPLIANCY=0.
#define	__stk_forceinline inline
	Forces compiler to always inline the decorated function, regardless of optimisation level.
#define	__stk_aligned(x)
	Specifies minimum alignment in bytes for the decorated variable or struct member (data instance prefix).
#define	__stk_weak
	Marks a function or variable as weak, allowing it to be overridden by the user.
#define	__stk_attr_naked
	Suppresses compiler-generated function prologue and epilogue (function prefix).
#define	__stk_attr_noreturn
	Declares that function never returns to its caller (function prefix).
#define	__stk_attr_unused
	Suppresses compiler warnings about an unused type, variable, or function (declaration prefix).
#define	__stk_attr_used
	Marks a symbol as used, preventing the linker from discarding it even if no references are visible (declaration prefix).
#define	__stk_attr_noinline
	Prevents compiler from inlining the decorated function (function prefix).
#define	__stk_attr_deprecated
	Marks a function, class, variable, or typedef as deprecated (declaration prefix).
#define	__stk_constexpr_cpp17
	constexpr definition for C++17 and above.
#define	STK_ASSERT(e)
	Runtime assertion. Halts execution if the expression e evaluates to false.
#define	STK_STATIC_ASSERT_DESC_N(NAME, X, DESC)
	Compile-time assertion with a user-defined name suffix and a custom error description.
#define	STK_STATIC_ASSERT_DESC(X, DESC)
	Compile-time assertion with a custom error description. Produces a compilation error if X is false.
#define	STK_STATIC_ASSERT_N(NAME, X)
	Compile-time assertion with a user-defined name suffix.
#define	STK_STATIC_ASSERT(X)
	Compile-time assertion. Produces a compilation error if X is false.
#define	STK_STACK_MEMORY_FILLER (static_cast<stk::Word>((sizeof(stk::Word) <= 4U) ? 0xDEADBEEFU : 0xDEADBEEFDEADBEEFULL))
	Sentinel value written to the entire stack region at initialization (stack watermark pattern).
#define	STK_STACK_MEMORY_ALIGN (4U)
	Stack memory alignment.
#define	STK_CS_NESTINGS_MAX (16U)
	Maximum allowable recursion depth for critical section entry (default: 16).
#define	STK_ARCH_CPU_COUNT (1U)
	Number of physical CPU cores available to the scheduler (default: 1).
#define	STK_STACK_SIZE_MIN (32U)
	Minimum stack size in elements of `Word`, shared by all stack allocation lower-bound checks.
#define	STK_SLEEP_TRAP_STACK_SIZE (STK_STACK_SIZE_MIN)
	Stack size for the sleep trap in elements of `Word` (default: STK_STACK_SIZE_MIN).
#define	STK_ENDIAN_IDX_HI (1U)
	Array index of the high 32-bit word when a 64-bit value is viewed as `uint32_t`[2].
#define	STK_ENDIAN_IDX_LO (0U)
	Array index of the low 32-bit word when a 64-bit value is viewed as `uint32_t`[2].
#define	STK_NONCOPYABLE_CLASS(TYPE)
	Disables copy construction and assignment for a class.
#define	STK_UNUSED(X)
	Explicitly marks a variable as unused to suppress compiler warnings.
#define	STK_LIKELY(x)
	Provides a compiler hint that the given expression is highly likely to evaluate to true.
#define	STK_UNLIKELY(x)
	Provides a compiler hint that the given expression is highly unlikely to evaluate to true (typically used for error handling).
#define	STK_STATIC_ARRAY_SIZE(ARRAY)
	Get size of the static array.

Functions
static void	__stk_debug_break ()
template<typename T>
static constexpr T	stk::Min (T a, T b) noexcept
	Compile-time minimum of two values.
template<typename T>
static constexpr T	stk::Max (T a, T b) noexcept
	Compile-time maximum of two values.
template<typename T>
static constexpr T	stk::Align (T v, T align) noexcept
	Aligns a value towards the next larger size multiple.
template<typename T>
static constexpr T	stk::AlignPow2 (T v, T align) noexcept
	Fast compile-time alignment for power-of-two boundaries.
static uint32_t	stk::CountLeadingZeros (const uint32_t value) noexcept
	Count leading zeros.
static void	STK_MEMCPY (void const dest, const void const src, const size_t size)
	A wrapper for a built-in memcpy, redefine to your own if required.
static void	STK_MEMSET (void *const dest, const uint8_t value, const size_t size)
	A wrapper for a built-in memset, redefine to your own if required.

Detailed Description

Compiler and platform low-level definitions for STK.

Note: Includes stk_config.h first so user-level configuration macros (e.g. STK_TICKLESS_IDLE, STK_SEGGER_SYSVIEW) are visible to all definitions below. Refer to stk_config.h and project examples for configuration details.

Definition in file stk_defs.h.

Macro Definition Documentation

◆ __stk_aligned

#define __stk_aligned ( x )

Specifies minimum alignment in bytes for the decorated variable or struct member (data instance prefix).

Parameters

[in] x Required alignment in bytes. Must be a power of two.

Note: On compilers not listed below the attribute expands to nothing and alignment is not enforced. Verify alignment-sensitive data on new toolchains.

Definition at line 230 of file stk_defs.h.

◆ __stk_attr_deprecated

#define __stk_attr_deprecated

Marks a function, class, variable, or typedef as deprecated (declaration prefix).

Note: The compiler will emit a warning at every call site or use of the decorated symbol, prompting callers to migrate to the replacement API.

Definition at line 311 of file stk_defs.h.

◆ __stk_attr_naked

#define __stk_attr_naked

Suppresses compiler-generated function prologue and epilogue (function prefix).

Note: The decorated function must consist of inline assembly only. C statements that rely on a stack frame (local variables, non-trivial expressions, function calls) produce undefined behaviour. Used for context-switch stubs and ISR entry points where the register save/restore sequence must be precisely hand-written.

Definition at line 254 of file stk_defs.h.

◆ __stk_attr_noinline

#define __stk_attr_noinline

Prevents compiler from inlining the decorated function (function prefix).

Note: Used where inlining would obscure stack-depth analysis, produce unpredictable code size, or make profiling and tracing results misleading.

Definition at line 298 of file stk_defs.h.

◆ __stk_attr_noreturn

#define __stk_attr_noreturn

Declares that function never returns to its caller (function prefix).

Note: Enables compiler to omit return-path code and dead-store warnings after the call site.

Warning: Applying this attribute to a function that does return produces undefined behaviour.

Definition at line 265 of file stk_defs.h.

◆ __stk_attr_unused

#define __stk_attr_unused

Suppresses compiler warnings about an unused type, variable, or function (declaration prefix).

Note: Does not prevent the linker from discarding the symbol. Use __stk_attr_used when the symbol must be retained regardless of whether it appears to be referenced.

Definition at line 276 of file stk_defs.h.

◆ __stk_attr_used

#define __stk_attr_used

Marks a symbol as used, preventing the linker from discarding it even if no references are visible (declaration prefix).

Note: Commonly applied to ISR vector table entries, trap stubs, and objects placed in special linker sections that are referenced only from assembly or linker scripts.

Definition at line 287 of file stk_defs.h.

◆ __stk_constexpr_cpp17

#define __stk_constexpr_cpp17

constexpr definition for C++17 and above.

Note: Can be used as 'if __stk_constexpr_cpp17 (x) {}' with C++11 without a warning.

Definition at line 428 of file stk_defs.h.

◆ __stk_forceinline

#define __stk_forceinline inline

Forces compiler to always inline the decorated function, regardless of optimisation level.

Note: Used on latency-critical paths (ISR handlers, scheduler hot paths) where a function call overhead would be unacceptable or would unpredictably affect real-time timing.; On compilers not listed below the attribute expands to nothing (inlining becomes a hint only).

Definition at line 218 of file stk_defs.h.

Referenced by __stk_debug_break(), __stk_dmb(), __stk_dmb(), CastCppKernelInterfaceToC(), CastCppTaskInterfaceToC(), CastCppTimerWrapperToC(), CastCToKernelInterface(), CastCToKernelInterfaceConst(), CmsisFlagsOptionsToStk(), CmsisPrioToStk(), CmsisTimeoutToStk(), stk::ConvertTimeUsToClockCycles(), stk::CountLeadingZeros(), stk::Delay(), stk::DelayMs(), stk::SwitchStrategyFixedPriority< 32 >::GetHighestReadyPriority(), stk::GetInitialSleepTicks(), stk::GetInitialSleepTicks< false >(), stk::GetInitialSleepTicks< true >(), stk::GetMsFromTicks(), stk::GetSysTimerCount(), stk::GetSysTimerFrequency(), stk::SwitchStrategyFixedPriority< 32 >::GetTaskPriority(), stk::SwitchStrategyFixedPriority< 32 >::GetTaskPriorityFromWeight(), stk::GetTickResolution(), stk::GetTicks(), stk::GetTicksFromMs(), stk::GetTicksFromMs(), stk::GetTicksFromMsClampedToTimeout(), stk::GetTid(), stk::GetTimeNowMs(), stk::hw::HiResClock::GetTimeUs(), stk::IKernelService::GetWaitList(), IsIrqContext(), stk::IsIsrTid(), stk::hw::IsPrivilegedContext(), stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::IsSleeping(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::IsValidFsmState(), stk::util::DListCast::ListEntryToParent(), stk::hw::ReadVolatile64(), stk::Sleep(), stk::SleepCancel(), stk::SleepMs(), stk::SleepUntil(), stk::STK_KERNEL_PANIC(), StkFlagsResultToCmsis(), StkPrioToCmsis(), stk::ArrayView< const struct MpuRegionConfig >::UncheckedAt(), stk::hw::WriteVolatile64(), and stk::Yield().

◆ __stk_weak

#define __stk_weak

Marks a function or variable as weak, allowing it to be overridden by the user.

Note: On compilers not listed below the attribute expands to nothing. If not supported, multiple definition errors may occur during linking.

Definition at line 241 of file stk_defs.h.

Referenced by pvPortMalloc(), and vPortFree().

◆ STK_ARCH_CPU_COUNT

#define STK_ARCH_CPU_COUNT (1U)

Number of physical CPU cores available to the scheduler (default: 1).

Note: Controls the number of per-CPU kernel service instances and per-CPU data structures allocated by the kernel. Set to the actual core count for SMP (symmetric multi-processing) targets. Can be defined in the architecture header or stk_config.h.

Definition at line 539 of file stk_defs.h.

◆ STK_ASSERT

#define STK_ASSERT ( e )

Runtime assertion. Halts execution if the expression e evaluates to false.

Note

Behaviour depends on build configuration:

If _STK_ASSERT_REDIRECT is defined: always redirects to the custom handler STK_ASSERT_HANDLER (regardless of debug/release build type). Signature:
void STK_ASSERT_HANDLER(const char *expr, const char *file, int32_t line);

Use this on embedded targets where the standard assert handler is unavailable, or where a custom fault logger or LED indicator is preferred.
Else if DEBUG or _DEBUG is defined (debug build): maps to the standard assert() macro from <assert.h>, which halts execution on failure.
Else (release build): expands to nothing. The expression e is completely elided, including any side effects. Do not rely on side effects inside STK_ASSERT.

Warning: In release builds without _STK_ASSERT_REDIRECT, all assertions are silently removed. Safety-critical applications (ISO 26262, IEC 61508) should define _STK_ASSERT_REDIRECT to retain fault detection in all build configurations.

Definition at line 455 of file stk_defs.h.

◆ STK_CS_NESTINGS_MAX

#define STK_CS_NESTINGS_MAX (16U)

Maximum allowable recursion depth for critical section entry (default: 16).

Note: Establishes a hard deterministic bound for nested calls to Context::EnterCriticalSection() and Context::UnprivEnterCriticalSection(). This limit is mandatory for safety-critical certification (e.g., ISO 26262, IEC 61508) to prevent unbounded stack usage and identify logic deadlocks.; Exceeding this value at runtime shall trigger a Kernel Panic with the code KERNEL_PANIC_CS_NESTING_OVERFLOW to transition the system into a Safe State. Can be overridden in stk_config.h based on Worst-Case Stack Usage (WCSU) analysis.

Definition at line 529 of file stk_defs.h.

◆ STK_ENDIAN_IDX_HI

#define STK_ENDIAN_IDX_HI (1U)

Array index of the high 32-bit word when a 64-bit value is viewed as uint32_t[2].

Note: Big-endian: 0 (high word first). Little-endian: 1 (high word second).

See also: STK_ENDIAN_IDX_LO, hw::ReadVolatile64, hw::WriteVolatile64

Definition at line 632 of file stk_defs.h.

Referenced by stk::hw::ReadVolatile64(), and stk::hw::WriteVolatile64().

◆ STK_ENDIAN_IDX_LO

#define STK_ENDIAN_IDX_LO (0U)

Array index of the low 32-bit word when a 64-bit value is viewed as uint32_t[2].

Note: Big-endian: 1 (low word second). Little-endian: 0 (low word first).

See also: STK_ENDIAN_IDX_HI, hw::ReadVolatile64, hw::WriteVolatile64

Definition at line 633 of file stk_defs.h.

Referenced by stk::hw::ReadVolatile64(), and stk::hw::WriteVolatile64().

◆ STK_LIKELY

#define STK_LIKELY ( x )

Value:

(x)

Provides a compiler hint that the given expression is highly likely to evaluate to true.

Parameters

x	The expression to evaluate.

Definition at line 672 of file stk_defs.h.

◆ STK_MPU

#define STK_MPU (0)

If 1, enable MPU support.

Definition at line 140 of file stk_defs.h.

◆ STK_MPU_TASK_REGIONS

#define STK_MPU_TASK_REGIONS (2)

Number of hardware MPU region slots reserved per task (stk::TaskMpu::NUM_REGIONS).

Slot 0 is always the automatic per-task stack guard; the remaining slots (STK_MPU_TASK_REGIONS - 1) are available to the application via ITask::GetMpuRegions(). Only consumed when STK_MPU_STACK_GUARD is enabled.

Note: Supported values: 2 or 4. A smaller value frees up MPU regions for static/global use (see STK_CORTEX_M_MPU_TASK_REGION_IDX) and shrinks the per-task TaskMpu footprint and context-switch burst-copy, at the cost of fewer application-defined per-task regions.; Default: 2.

See also: STK_MPU_STACK_GUARD, stk::TaskMpu, ITask::GetMpuRegions

Definition at line 163 of file stk_defs.h.

◆ STK_NONCOPYABLE_CLASS

#define STK_NONCOPYABLE_CLASS ( TYPE )

Value:

TYPE(const TYPE &) = delete;\

TYPE &operator=(const TYPE &) = delete;

Disables copy construction and assignment for a class.

This macro declares a private copy constructor and copy assignment operator to prevent the compiler from generating default ones. It ensures that instances of a class cannot be duplicated.

Parameters

[in] TYPE The name of the class to be made non-copyable.

Warning: This macro must be placed within the private or protected section of the class declaration to be effective.

Note: In C++11 and later, it is generally preferred to use = delete, however, this macro provides compatibility for legacy environments.

Definition at line 647 of file stk_defs.h.

#define STK_NONCOPYABLE_CLASS(TYPE)\
    TYPE(const TYPE &) = delete;\
    TYPE &operator=(const TYPE &) = delete;

◆ STK_SLEEP_TRAP_STACK_SIZE

#define STK_SLEEP_TRAP_STACK_SIZE (STK_STACK_SIZE_MIN)

Stack size for the sleep trap in elements of Word (default: STK_STACK_SIZE_MIN).

See also: Kernel::SleepTrapStackMemory

Note: If IEventOverrider::OnSleep() is overridden with a non-trivial implementation (e.g. calling platform-specific low-power APIs that use the stack), increase this value to accommodate the additional stack frame depth required by that implementation. Can be defined in stk_config.h.

Definition at line 592 of file stk_defs.h.

◆ STK_STACK_MEMORY_ALIGN

#define STK_STACK_MEMORY_ALIGN (4U)

Stack memory alignment.

Definition at line 514 of file stk_defs.h.

Referenced by stk::PlatformContext::InitStackMemory().

◆ STK_STACK_MEMORY_FILLER

#define STK_STACK_MEMORY_FILLER (static_cast<stk::Word>((sizeof(stk::Word) <= 4U) ? 0xDEADBEEFU : 0xDEADBEEFDEADBEEFULL))

Sentinel value written to the entire stack region at initialization (stack watermark pattern).

Note: Used to detect stack overflow and to measure peak stack usage at run-time: any stack word that still contains this value was never written by the task.; Defaults to 0xDEADBEEF on 32-bit targets and 0xDEADBEEFDEADBEEF on 64-bit targets. Can be overridden by defining STK_STACK_MEMORY_FILLER before including this header or in stk_config.h.

Definition at line 502 of file stk_defs.h.

Referenced by stk::IStackMemory::GetStackSpace(), stk::PlatformContext::InitStackMemory(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::StateSwitch(), and stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::StateWake().

◆ STK_STACK_NEEDS_TASK_ID

#define STK_STACK_NEEDS_TASK_ID (1)

When defined as 1, the Stack descriptor (stk::Stack) carries a tid field used by the SEGGER SystemView trace back-end to identify tasks during context switches.

Note: Automatically defined to 1 (guarded by #ifndef, so a prior manual definition is respected) whenever STK_SEGGER_SYSVIEW or STK_MPU_STACK_GUARD is enabled. Do not rely on defining this macro manually; enable STK_SEGGER_SYSVIEW or STK_MPU_STACK_GUARD instead.

See also: STK_SEGGER_SYSVIEW, STK_MPU_STACK_GUARD, stk::Stack

Definition at line 181 of file stk_defs.h.

◆ STK_STACK_SIZE_MIN

#define STK_STACK_SIZE_MIN (32U)

Minimum stack size in elements of Word, shared by all stack allocation lower-bound checks.

See also: TrapStackMemory

Note

This is the smallest stack that can correctly save and restore all CPU registers during a context switch or service trap. The required size depends on the number of registers the architecture mandates saving and specific platform alignment requirements.

Default values by architecture:

ARM Cortex-M and RISC-V RV32E (reduced 16-register file): 32 elements.
Standard RISC-V (RV32I / RV64I) without FPU: 256 elements (larger register file; smaller sizes may cause memory corruption on RP2350).
Standard RISC-V with FPU: 512 elements + (__riscv_flen * 2) (dedicated FP registers significantly expand the required frame size).

Can be overridden to any larger value in stk_config.h if your application's interrupt nesting or stack frame size requires it.

Definition at line 579 of file stk_defs.h.

◆ STK_STATIC_ARRAY_SIZE

#define STK_STATIC_ARRAY_SIZE ( ARRAY )

Value:

static_cast<size_t>(sizeof(ARRAY) / sizeof(ARRAY[0]))

Get size of the static array.

Parameters

[in] ARRAY Pointer to the array.

Warning: Array must be static.

Definition at line 681 of file stk_defs.h.

◆ STK_STATIC_ASSERT

#define STK_STATIC_ASSERT ( X )

Value:

STK_STATIC_ASSERT_DESC_N(_, (X), #X)

STK_STATIC_ASSERT_DESC_N

#define STK_STATIC_ASSERT_DESC_N(NAME, X, DESC)

Compile-time assertion with a user-defined name suffix and a custom error description.

Definition stk_defs.h:467

Compile-time assertion. Produces a compilation error if X is false.

Note: Uses a fixed internal symbol name. If more than one STK_STATIC_ASSERT appears in the same scope, use STK_STATIC_ASSERT_N to provide distinct name suffixes and avoid duplicate symbol errors.

Definition at line 492 of file stk_defs.h.

Referenced by stk::IKernel::EnumerateTasksT(), stk::hw::PtrToWord(), stk::StackMemoryWrapper<((32U))>::StackMemoryWrapper(), stk_kernel_create(), and stk::hw::WordToPtr().

◆ STK_STATIC_ASSERT_DESC

#define STK_STATIC_ASSERT_DESC	(		X,
			DESC )

Value:

STK_STATIC_ASSERT_DESC_N(_, X, DESC)

Compile-time assertion with a custom error description. Produces a compilation error if X is false.

Note: Uses a fixed internal symbol name. If more than one STK_STATIC_ASSERT_DESC appears in the same scope, use STK_STATIC_ASSERT_DESC_N to provide distinct name suffixes and avoid duplicate symbol errors.

Definition at line 475 of file stk_defs.h.

Referenced by stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::Kernel(), and stk::SwitchStrategyFixedPriority< 32 >::SwitchStrategyFixedPriority().

◆ STK_STATIC_ASSERT_DESC_N

#define STK_STATIC_ASSERT_DESC_N	(	NAME,
		X,
		DESC )

Value:

static_assert((X), DESC)

Compile-time assertion with a user-defined name suffix and a custom error description.

Note: NAME is appended to the internal symbol name, allowing multiple assertions in the same scope without symbol-name collisions.; DESC is a string literal shown in the compiler diagnostic — use it to provide a human-readable explanation of the constraint. Prefer this over STK_STATIC_ASSERT_N when the expression alone would not be self-explanatory in a compiler error.

Definition at line 467 of file stk_defs.h.

◆ STK_STATIC_ASSERT_N

#define STK_STATIC_ASSERT_N	(		NAME,
			X )

Value:

STK_STATIC_ASSERT_DESC_N(N, (X), #X)

Compile-time assertion with a user-defined name suffix.

Note: NAME is appended to the internal symbol name, allowing multiple assertions in the same scope without symbol-name collisions.; The compiler diagnostic message is the stringified form of expression X. Use STK_STATIC_ASSERT_DESC_N instead when you need a more descriptive error message.

Definition at line 484 of file stk_defs.h.

Referenced by stk::util::DListCast::ListEntryToParent(), stk::hw::ReadVolatile64(), stk_cv_create(), stk_ef_create(), stk_event_create(), stk_msgq_create(), stk_mutex_create(), stk_periodic_trigger_create(), stk_pipe_create(), stk_rwmutex_create(), stk_sem_create(), stk_spinlock_create(), and stk::hw::WriteVolatile64().

◆ STK_STRICT_COMPLIANCY

#define STK_STRICT_COMPLIANCY (0)

Allow the use of workarounds to make binary smaller and faster.

Note: Applied workarounds will break safety-critical rules (MISRA, etc).

Definition at line 51 of file stk_defs.h.

◆ STK_SYNC_DEBUG_NAMES

#define STK_SYNC_DEBUG_NAMES (0)

Enable debug names for synchronization primitives (mutexes, events, etc.) for debugging and tracing purposes.

Note: When set to 1, synchronization objects gain a string name field (see ITraceable::SetTraceName) that is visible in SEGGER SystemView and other trace tools.; Automatically set to 1 when STK_SEGGER_SYSVIEW is enabled. Can be manually defined in stk_config.h to override the default.; Default: 0 (disabled) unless STK_SEGGER_SYSVIEW is active.

Definition at line 195 of file stk_defs.h.

◆ STK_TICKLESS_TICKS_MAX

#define STK_TICKLESS_TICKS_MAX (1000)

Maximum number of kernel ticks the hardware timer may be suppressed in one tickless idle interval when STK_TICKLESS_IDLE=1. Default: 1000.

Note: Must not exceed 100000. Values above this limit cause a compile-time error because the internal tick-request calculation uses a uint32_t accumulator that would overflow at higher values.; Increase to allow longer uninterrupted sleep intervals; decrease to improve wakeup responsiveness at the cost of more frequent timer interrupts.

See also: STK_TICKLESS_IDLE, KERNEL_TICKLESS

Definition at line 77 of file stk_defs.h.

Referenced by stk::GetInitialSleepTicks< true >().

◆ STK_TICKLESS_USE_ARM_DWT

#define STK_TICKLESS_USE_ARM_DWT (1)

Use DWT timer of ARM Cortex-M for a precise tick calculation.

Note: DWT is available on Cortex-M3 and higher only (__CORTEX_M >= 3). It has no effect on Cortex-M0/M0+.; STK_TICKLESS_USE_ARM_DWT has no effect on RISC-V targets. RISC-V tickless uses the CLINT mtime absolute timestamp for drift-free timer rearm and does not require rearm-error compensation.

Definition at line 63 of file stk_defs.h.

◆ STK_TLS

#define STK_TLS (0)

Enable per-task thread-local storage (TLS).

Note

When set to 1, the kernel saves and restores a per-task TLS pointer on every context switch, making a dedicated pointer available to each task at all times via stk::hw::GetTlsPtr/SetTlsPtr.

Storage strategy is controlled by STK_TLS_PREFER_REGISTER:

STK_TLS_PREFER_REGISTER=0 (default): the pointer is kept in the stk::Stack::tls member. No special compiler flags required.
STK_TLS_PREFER_REGISTER=1: the pointer is kept in a CPU register (r9 on Cortex-M, tp on RISC-V) for single-instruction access. Cortex-M additionally requires -ffixed-r9 for all task translation units; see STK_TLS_PREFER_REGISTER.

Default: 0 (disabled).

See also: STK_TLS_PREFER_REGISTER, stk::hw::GetTlsPtr, stk::hw::SetTlsPtr

Definition at line 99 of file stk_defs.h.

◆ STK_TLS_PREFER_REGISTER

#define STK_TLS_PREFER_REGISTER (0)

Store the per-task TLS pointer in a dedicated CPU register instead of the stk::Stack::tls member, enabling single-instruction TLS access.

Note: ARM Cortex-M: uses r9 (ARM EABI "platform register", AAPCS 5.2.2). Every translation unit that contains task code must be compiled with -ffixed-r9. Without it the compiler may allocate r9 as an ordinary callee-saved register, silently overwriting the TLS pointer after a context switch. See stk_arch_arm-cortex-m.h for the full explanation.; RISC-V: uses the tp (x4) register, which is reserved for TLS by the RISC-V psABI. STK_TLS_PREFER_REGISTER is set to 1 on RISC-V; no additional compiler flags are needed. Can be overridden to 0 safely.; When set to 1 the stk::Stack gains no tls member, reducing per-task RAM by one Word. On targets with many tasks this saving can be significant.; Default: 0 (disabled) on all architectures except RISC-V, where it defaults to 1 (see the RISC-V note above). Leave at 0 if -ffixed-r9 cannot be applied to all task translation units (e.g. pre-built third-party libraries); the memory-based fallback incurs only one extra load/store per TLS access.

Warning: Cortex-M only: -ffixed-r9 must be applied to every translation unit in the binary that contains task code, including inlined functions and any library code those tasks call. A single TU compiled without the flag is sufficient to cause intermittent, hard-to-reproduce TLS corruption.; STK_TLS_PREFER_REGISTER=0 is not supported in non-Privileged context.

See also: STK_TLS, stk::hw::GetTlsPtr, stk::hw::SetTlsPtr

Definition at line 132 of file stk_defs.h.

◆ STK_UNLIKELY

#define STK_UNLIKELY ( x )

Value:

(x)

Provides a compiler hint that the given expression is highly unlikely to evaluate to true (typically used for error handling).

Parameters

x	The expression to evaluate.

Definition at line 673 of file stk_defs.h.

Referenced by stk::time::Stopwatch::Update().

◆ STK_UNUSED

#define STK_UNUSED ( X )

Value:

static_cast<void>((X))

Explicitly marks a variable as unused to suppress compiler warnings.

Definition at line 654 of file stk_defs.h.

Referenced by stk::memory::MemoryAllocator::AllocateArrayT(), stk::memory::MemoryAllocator::AllocateOneT(), stk::memory::BlockMemoryPool::BlockMemoryPool(), stk::memory::BlockMemoryPool::BlockMemoryPool(), stk::memory::MemoryAllocator::FreeArrayT(), FrtosMessageBuffer::FrtosMessageBuffer(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::InitTraps(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::Kernel(), stk::sync::Mutex::Lock(), stk::sync::RWMutex::Lock(), stk::ITask::OnDeadlineMissed(), stk::IPlatform::IEventOverrider::OnException(), CTimerWrapper::OnExpired(), stk::IPlatform::IEventOverrider::OnSleep(), stk::ITaskSwitchStrategy::OnTaskDeadlineMissed(), stk::ITaskSwitchStrategy::OnTaskWeightChange(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::OnTick(), osKernelResume(), osThreadJoin(), stk::time::TimerHost::ProcessCommands(), QueueSetNotify(), stk::sync::RWMutex::ReadLock(), stk::ITraceable::SetTraceName(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::StateExit(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::StateSleep(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::StateWake(), stk_critical_section_enter(), STK_MEMCPY(), STK_MEMSET(), and stk::time::TimerHost::UpdateTime().

◆ STK_VIRT_DTOR

#define STK_VIRT_DTOR

Makes destructors virtual and compliant to strict rules if STK_STRICT_COMPLIANCY=0.

Definition at line 202 of file stk_defs.h.

Referenced by stk::sync::ConditionVariable::~ConditionVariable(), stk::sync::Event::~Event(), stk::sync::EventFlags::~EventFlags(), EventOverrider::~EventOverrider(), stk::Kernel< stk::KERNEL_DYNAMIC|stk::KERNEL_SYNC|stk::KERNEL_TICKLESS,(16U), stk::SwitchStrategyFP32, stk::PlatformDefault >::~Kernel(), stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelService::~KernelService(), stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::~KernelTask(), stk::sync::MessageQueue::~MessageQueue(), stk::sync::MessageQueueT< N, MSG >::~MessageQueueT(), stk::sync::Mutex::~Mutex(), stk::sync::Pipe::~Pipe(), stk::PlatformArmCortexM::~PlatformArmCortexM(), stk::PlatformContext::~PlatformContext(), stk::sync::RWMutex::~RWMutex(), stk::sync::ScopedCriticalSection::~ScopedCriticalSection(), stk::sync::Semaphore::~Semaphore(), stk::sync::SpinLock::~SpinLock(), stk::StackMemoryWrapper<((32U))>::~StackMemoryWrapper(), stk::SwitchStrategyEDF::~SwitchStrategyEDF(), stk::SwitchStrategyFixedPriority< 32 >::~SwitchStrategyFixedPriority(), stk::SwitchStrategyMonotonic< MSS_TYPE_RATE >::~SwitchStrategyMonotonic(), stk::SwitchStrategyRoundRobin::~SwitchStrategyRoundRobin(), stk::SwitchStrategySmoothWeightedRoundRobin::~SwitchStrategySmoothWeightedRoundRobin(), stk::Task< _StackSize, _AccessMode >::~Task(), stk::TaskW< _Weight, _StackSize, _AccessMode >::~TaskW(), TaskWrapper::~TaskWrapper(), stk::time::TimerHost::Timer::~Timer(), and stk::Kernel< TMode, TSize, TStrategy, TPlatform >::KernelTask::WaitObject::~WaitObject().

Function Documentation

◆ __stk_debug_break()

void __stk_debug_break ( )

inlinestatic

Definition at line 418 of file stk_defs.h.

418{}

References __stk_forceinline.

Referenced by stk::STK_KERNEL_PANIC().

Here is the caller graph for this function:

◆ STK_MEMCPY()

void STK_MEMCPY	(	void *const	dest,
		const void *const	src,
		const size_t	size )

static

A wrapper for a built-in memcpy, redefine to your own if required.

Note: Can be overridden by defining _STK_CUSTOM_MEMCPY in system configuration.

◆ STK_MEMSET()

void STK_MEMSET	(	void *const	dest,
		const uint8_t	value,
		const size_t	size )

static

A wrapper for a built-in memset, redefine to your own if required.

Note: Can be overridden by defining _STK_CUSTOM_MEMSET in system configuration.

Classes

Namespaces

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ __stk_aligned

◆ __stk_attr_deprecated

◆ __stk_attr_naked

◆ __stk_attr_noinline

◆ __stk_attr_noreturn

◆ __stk_attr_unused

◆ __stk_attr_used

◆ __stk_constexpr_cpp17

◆ __stk_forceinline

◆ __stk_weak

◆ STK_ARCH_CPU_COUNT

◆ STK_ASSERT

◆ STK_CS_NESTINGS_MAX

◆ STK_ENDIAN_IDX_HI

◆ STK_ENDIAN_IDX_LO

◆ STK_LIKELY

◆ STK_MPU

◆ STK_MPU_TASK_REGIONS

◆ STK_NONCOPYABLE_CLASS

◆ STK_SLEEP_TRAP_STACK_SIZE

◆ STK_STACK_MEMORY_ALIGN

◆ STK_STACK_MEMORY_FILLER

◆ STK_STACK_NEEDS_TASK_ID

◆ STK_STACK_SIZE_MIN

◆ STK_STATIC_ARRAY_SIZE

◆ STK_STATIC_ASSERT

◆ STK_STATIC_ASSERT_DESC

◆ STK_STATIC_ASSERT_DESC_N

◆ STK_STATIC_ASSERT_N

◆ STK_STRICT_COMPLIANCY

◆ STK_SYNC_DEBUG_NAMES

◆ STK_TICKLESS_TICKS_MAX

◆ STK_TICKLESS_USE_ARM_DWT

◆ STK_TLS

◆ STK_TLS_PREFER_REGISTER

◆ STK_UNLIKELY

◆ STK_UNUSED

◆ STK_VIRT_DTOR

Function Documentation

◆ __stk_debug_break()

◆ STK_MEMCPY()

◆ STK_MEMSET()
