FrtosQueueSet Struct Reference

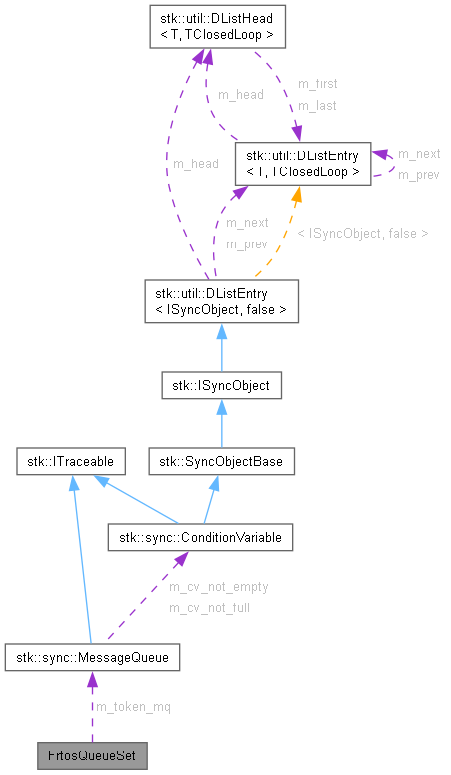

Collaboration diagram for FrtosQueueSet:

Public Member Functions
	FrtosQueueSet (UBaseType_t uxEventQueueLength)
	~FrtosQueueSet ()
bool	IsValid () const

Public Attributes
uint8_t *	m_buf
	raw backing store for m_token_mq
bool	m_cb_owned
	true = heap-allocated, delete in ObjFree
stk::sync::MessageQueue *	m_token_mq
	FIFO of fired-member handles (void*).

Detailed Description

Definition at line 742 of file freertos_stk.cpp.

Constructor & Destructor Documentation

FrtosQueueSet()

FrtosQueueSet::FrtosQueueSet ( UBaseType_t uxEventQueueLength )

inlineexplicit

Definition at line 747 of file freertos_stk.cpp.

        : m_buf(nullptr), m_cb_owned(true),
          m_token_mq(nullptr)
    {
        // Allocate the flat byte ring-buffer: N slots × sizeof(void*) bytes.
        const size_t buf_bytes =
            static_cast<size_t>(uxEventQueueLength) * sizeof(void *);

        m_buf = ObjAllocArray<uint8_t>(buf_bytes);
        if (m_buf == nullptr)
            return;

        m_token_mq = ObjAlloc<stk::sync::MessageQueue>(
            m_buf,
            static_cast<size_t>(uxEventQueueLength),
            sizeof(void *));
    }

References m_buf, m_cb_owned, m_token_mq, ObjAlloc(), and ObjAllocArray().

Here is the call graph for this function:

~FrtosQueueSet()

FrtosQueueSet::~FrtosQueueSet ( )

inline

Definition at line 765 of file freertos_stk.cpp.

    {
        ObjFreeRaw(m_token_mq);
        ObjFreeArray(m_buf);
    }

References m_buf, m_token_mq, ObjFreeArray(), and ObjFreeRaw().

Here is the call graph for this function:

Member Function Documentation

IsValid()

bool FrtosQueueSet::IsValid ( ) const

inline

Definition at line 771 of file freertos_stk.cpp.

{ return (m_token_mq != nullptr); }

References m_token_mq.

Referenced by xQueueCreateSet().

Here is the caller graph for this function:

Member Data Documentation

m_buf

uint8_t* FrtosQueueSet::m_buf

raw backing store for m_token_mq

Definition at line 774 of file freertos_stk.cpp.

Referenced by FrtosQueueSet(), and ~FrtosQueueSet().

m_cb_owned

bool FrtosQueueSet::m_cb_owned

true = heap-allocated, delete in ObjFree

Definition at line 775 of file freertos_stk.cpp.

Referenced by FrtosQueueSet().

m_token_mq

stk::sync::MessageQueue* FrtosQueueSet::m_token_mq

FIFO of fired-member handles (void*).

Definition at line 776 of file freertos_stk.cpp.

Referenced by FrtosQueueSet(), IsValid(), xQueueSelectFromSet(), xQueueSelectFromSetFromISR(), and ~FrtosQueueSet().

---

The documentation for this struct was generated from the following file:

• freertos_stk.cpp
